Zoom A1 Four Multi-Effects Processor

Legendary Zoom Effects for Acoustic Guitar, Saxophone, Trumpet, Violin, Harmonica, Acoustic Bass, and More

With specially engineered effects, built-in looper and drum machine, the A1 FOUR is the first Multi-Effects Processor designed for a variety of acoustic string and wind instruments. The A1 FOUR is preloaded with over 80 effects, including more than 35 new groundbreaking effects designed and engineered for acoustic instruments.

Unlock the Potential of Your Acoustic Guitar
Add a multitude of warm and rich tones to your guitar. From live “unplugged” performance sounds to the finger-playing style of country and blues, there’s so much to choose from. Gorgeous effects and acoustic guitar modeling will take your instrument to places it’s never been before.

Give Your Sax an Entirely New Soundscape
Perform that gritty, rock-and-roll sax growl. Or use the lush custom-chorus effect to emulate the sound of jazz fusion. The A1 Four gives sax players a soundscape of possibilities. The all-new “SaxChorus” effect delivers a more natural double-track and thick tone response by softening the modulated sensation typical of a chorus designed for the electric guitar. With ready-made settings for EQ and Compressors your sax will preserve its acousticly warm sound, even when amplified through mics.

Take Your Trumpet Back to the Future
From the bright sound of electric jazz to our signature Auto Wah sound effect, the A1 gives you inspiration for any style you play. With the “Tp MD70” preset patch the Pedal Wah sound is tuned, resonates and adapts to the low frequency range and curve of the Trumpet.

Turn Your Violin Into an Orchestra
From the rich, full sound of a string symphony to the raw, distorted explosion of metal, the A1 FOUR have effects for every genre.

More Body for Your Harmonica’s Soul
Play punchy, mid-range sounds of a blues harp, or experiment with your own new sounds. Breathing new life into your harmonica has never been so much fun. Play through the preset patch “Hm StevieW” and get that famous harmonica sound as the chorus’ wet signal effect is modified to fit the frequency response of the chromatic harmonica. The A1 even provides you with a truly effective simulation of the Bullet Mic, also known by harmonica players as the Green Bullet. Select the preset patch “Hm Juke” and now hear the legendary amplified, warm tone of the Green Bullet come to life, even when using any standard vocal microphone.

Take Your Upright Bass to New Heights
With focused highs and rich lows, the A1 Four gives you control and flexibility from classical to rockabilly and all styles in between. Add octaves, select your piezo effect or create your own unique signature sound.

The Technology
Popular effects such as Distortion, Chorus and Wah are typically designed to work with the electric guitar. The A1 FOUR provide all-new effects that are engineered to process the unique signals generated by acoustic instruments.

For example, with the sax and trumpet, original acoustic sounds are controlled by the musician blowing the horn with more or less intensity. As an example, the Wah effects are uniquely re-voiced in the A1 FOUR by adding a Low Pass Filter (LPF) to best control the processed frequency response of the instrument. This allows musicians to hit the peak frequency points while still blowing naturally into the instrument, without losing any expected sonic response of attack and release.

Another example is the violin. The bowing attack is key to the expression of the violinist. To recreate the electrified sensation of distortion without losing the bowing attack, the DIST effect for Violin shifts the clipping 1 octave higher, boosts the high frequency and reduces the lows. This creates a more balanced saturation that suits the sonic characteristics of the violin.

Guitar Lab Supported
With a free download, ZOOM Guitar Lab software explore an endless world of patches and effects. And with its added ability to edit effects and arrange patches designed for Acoustic Instruments, you can experiment and create endless combinations.

The Perfect Partner

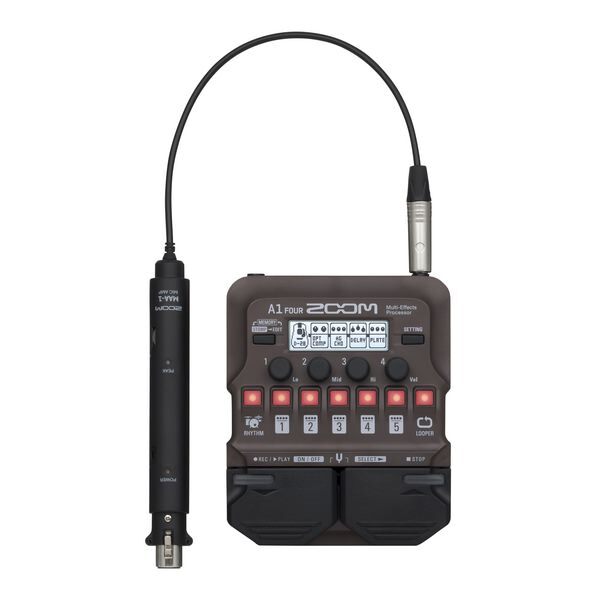

The Zoom MAA-1 mic adapter provides a hassle-free connection to the A1 FOUR.  It works with dynamic microphones and even provides phantom power for condenser mics. Add effects to any acoustic instrument and adjust gain settings with the MAA-1’s easy-access controls.

Tap into Your Performance
Effortlessly toggle between patches and effects with two performance modes. MEMORY mode makes it easy to program your entire setlist by jumping from patch-to-patch. Use STOMP mode to turn individual effects on and off with the tap of your foot.

No More Feedback
The Anti-Feedback Filter detects and cuts frequencies that cause potential feedback.

Drums & Percussion Included
Choose from 68 rhythm patterns designed for acoustic music including Samba, Reggae, and Jazz. Play along with a variety of time signatures.

Looped In
The built-in looper can record up to 30 seconds and allows you to create dynamic, multi-part arrangements.

What’s in the Box

  • A1 FOUR Multi-Effects Processor
  • MAA-1 Mic Amp
  • AA Batteries (x6)
  • Quick Guide
  • Patch List


Specifications

A1 FOUR

Maximum number of simultaneous effects :

5

User patches :

50

Sampling frequency :

44.1 kHz

A/D conversion :

24-bit, 128× oversampling

D/A conversion :

24-bit, 128× oversampling

Signal processing :

32-bit

Display :

128x32 dot matrix LCD

INPUT

INPUT:

Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩ

AUX IN :

Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 1kΩ

OUTPUT

OUTPUT :

Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +2 dBu (10 kΩ or more output impedance)
Headphones 17 mW + 17 mW (32Ω load)



Input S/N :

120dB



Noise floor (residual noise) :

-97 dBu

Power:

AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)

USB :

USB MIDI, USB Micro-B
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.

External dimensions :

A1 FOUR
Height: 156 mm (D) × 130 mm (W) × 42 mm (H)
Weight: 340 g (excluding batteries)

MAA-1

Input :

INPUT XLR balanced input (2: hot)
Input gain: +3 – +30 dB
Input impedance: 10 kΩ
Maximum input level: +4 dBu
+48V phantom power

Output :

Standard mono phone jack
Nominal output level: −20 dBu
Maximum output level: +7 dBu
Output impedance: 1 kΩ

Power :

2 AA batteries

Continuous operation time (when phantom current is 3 mA)
About 15 hours (using alkaline batteries)

About 15 hours (using nickel metal hydride batteries)

External dimensions::

Height:  177 mm (D) × 23 mm (W) × 25 mm (H)
Weight : 70 g (excluding batteries)
                 0 dBu = 0.775 V

Features

  • A1 FOUR offers over 80 built-in effects
  • Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
  • Up to 5 effects can be used simultaneously, chained together in any order
  • 50 memory locations for storing user-created patches
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
  • ZOOM Guitar Lab software for creating, editing and managing effects and patches
  • 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
  • Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
  • Output jack for connection to amp or headphones
  • A1 FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
  • USB port for firmware updates, power and connection to ZOOM Guitar Lab
