Description

FLEXIBLE AND EXPANDABLE
for conference, medium theater and houses of worship applications

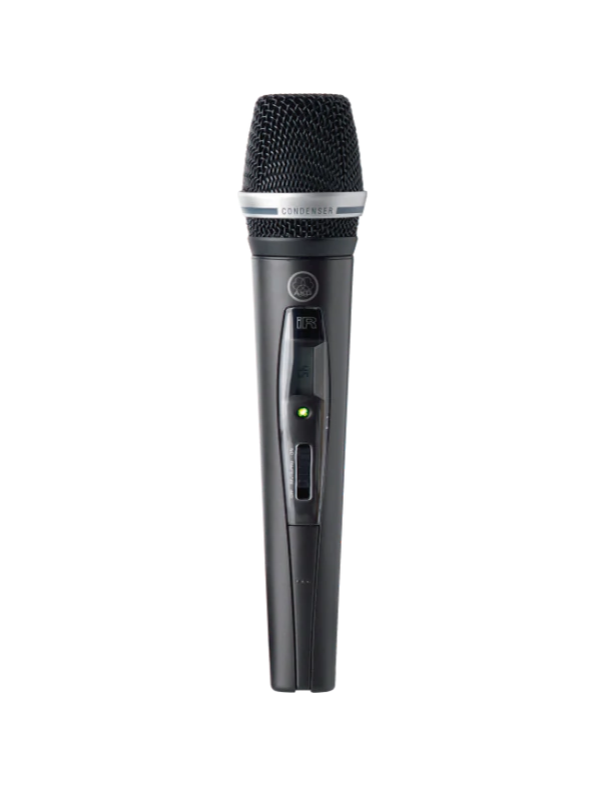

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand.

An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours.

Available in two versions: D5 and C5
Pilot Tone transmission
for transmitter battery status monitoring and tone code squelch

Leading edge dipole-antenna design
optimum performance even when the antenna is covered
Infrared synchronization
for instant transmitter setup
Up to 50mW transmission power
maximum radio signal strength for long-distance applications
Integrated charging contacts
quick charging of a standard NiMH battery inside the transmitter





Specifications

Audio frequency bandwidth    35 to 20000 Hz
Signal to Noise    120 dB-A
THD at 1 kHz    0.7 Prozent
Miscellaneous
Operating temperature range    -10 to 55 Celsius
Peak deviation    48 kHz kHz
Radio
Switching bandwidth    30 MHz
Recommended simultaneous channels    24
Number of selectable frequencies    1220 (selectable in 25kHz steps)
Frequency Selection    Selectable frequency in 25kHz steps
Wireless channels within device    -
Radio range (Line of sight)    100m (depending on antenna system)
Switchable RF power    no
Modulation
Pilot Tone    yes
Transmitter
Nominal deviation    20 kHz kHz
Radio Output Power (min/max)    10 to 50 mW
Microphone head versions    C5
Interchangeable Microphone Head    no
Battery 1
Battery type    LR6 AA alkaline battery
Number of batteries    1
Operating time    7 h
Battery 2
Battery type    HR 6 AA (NiHM) rechargeable battery
Number of batteries    1
Operating time    8 h
Battery 3
Battery type    FR 6 AA lithium battery
Number of batteries    1
Operating time    14 h
Design
Body    Plastic
Finish    black
Dimensions / Weight
Height    237 mm
Width    51 mm
Net Weight    240 g



Features

AKG Ht470 Wireless Handheld Trans D5 Cap | Mooloolaba Music Australia
Pilot tone transmission
Leading edge dipole-antenna design
Infrared synchronisation
Dynamic Capsule
Handheld transmitter for the WMS470 wireless systems with D5 capsule Pilot Tone transmission * Leading edge dipole-antenna design * Infrared synchronization * Up to 50mW transmission power * Integrated charging contacts
