Description

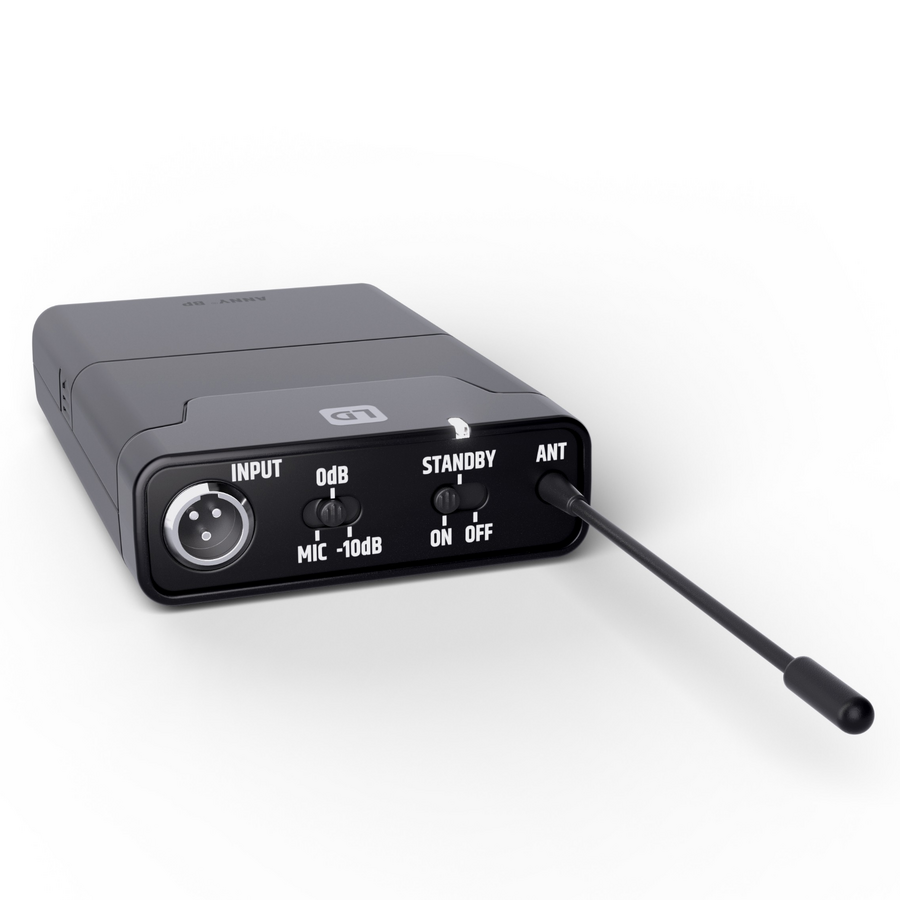

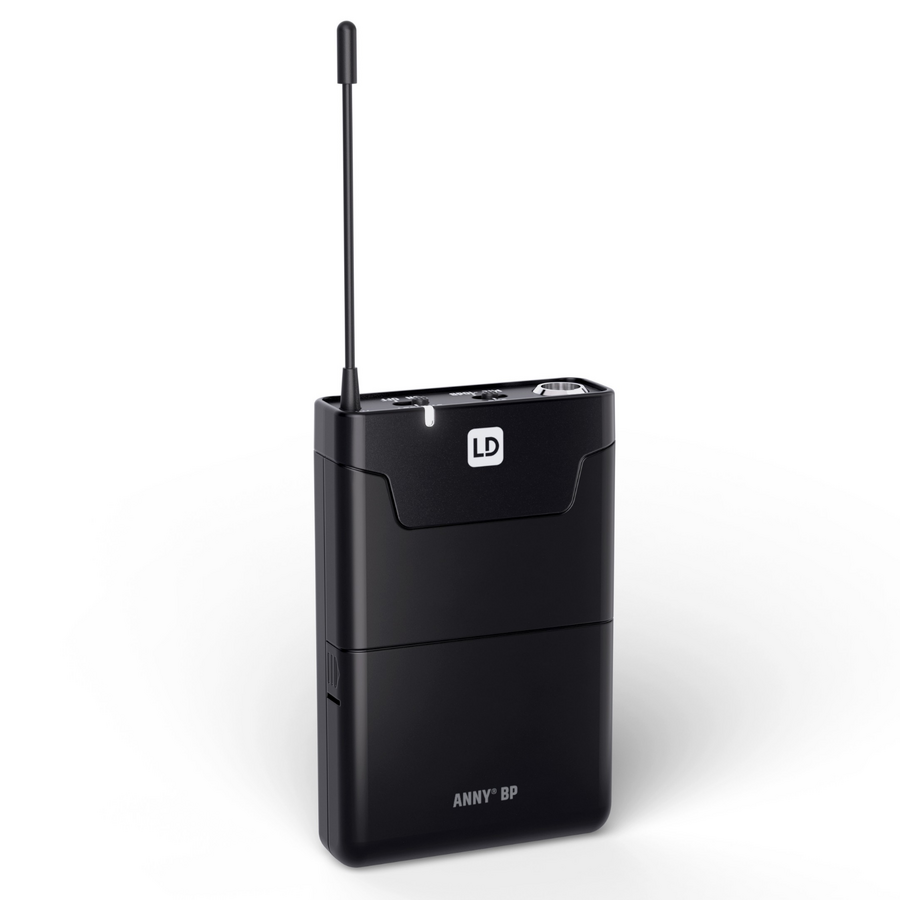

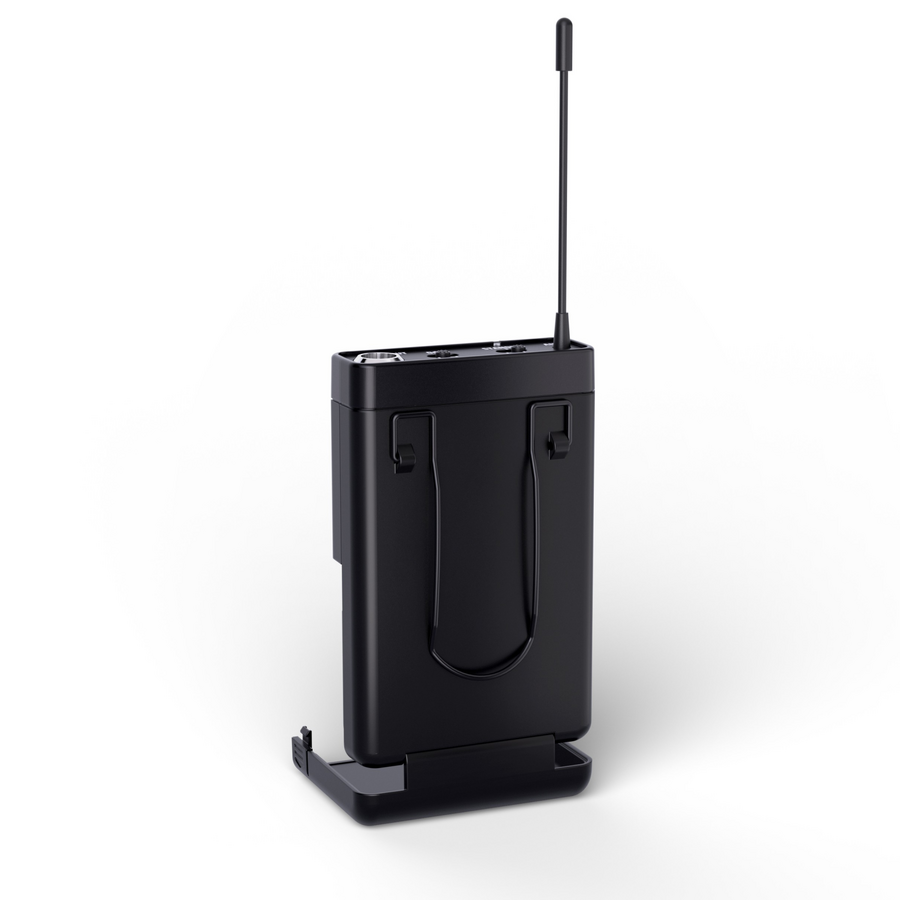

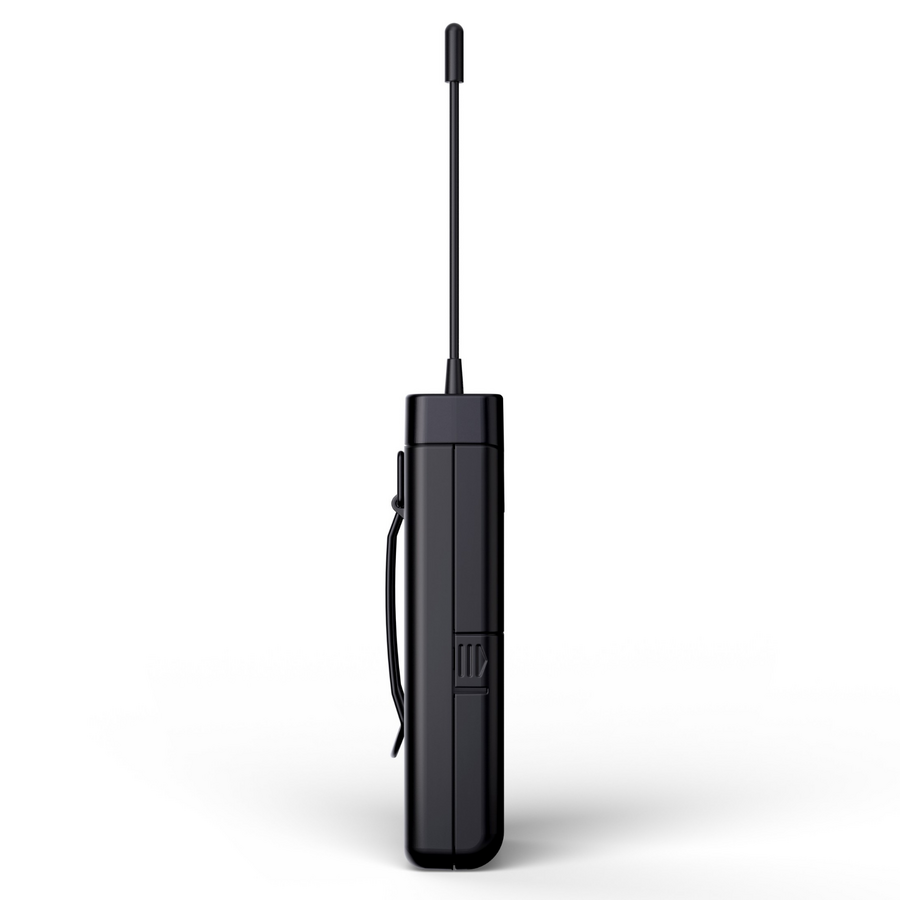

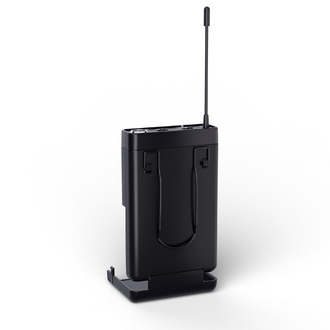

The ANNY® bodypack transmitter with the B5 frequency band operates in the 584 - 608 MHz frequency range. Equipped with a mini-XLR input and input level switch, it can be used with both active and passive microphones and instruments. With an output power of 10 mW, the bodypack transmitter allows audio transmission up to 80 metres. The bodypack transmitter is easily and conveniently synchronised with the ANNY® receiver via infrared. Powered by two AA batteries (included), the ANNY BP can operate for up to eight hours without a battery change. A built-in status LED gives a white light when switched on and a red light when the battery is low. The power switch also provides a standby function for temporary muting, ideal for breaks in use without having to switch off the unit completely.

Features

  • Bodypack transmitter incl. 2x AA batteries
  • Up to 80 metres range
  • Mini XLR input
  • 8 hours operating time
  • Input level switch (MIC, 0dB, -10dB)
  • Standby mode
  • Integrated status LED

Specifications
Product type: Battery-powered PA speaker accessories
Type: Bodypack
Transmission frequency range: 584 - 608 MHz
Channels: 12
Inputs: Mini-XLR (3-pin)
Frequency response: 45 Hz - 20 kHz
Signal-to-noise ratio: 100 dB
Rated HF output power: 10 mW
Controls: Gain (3-stage input sensitivity), Power On/Off, standby
Indicators: battery status LED (low), Power

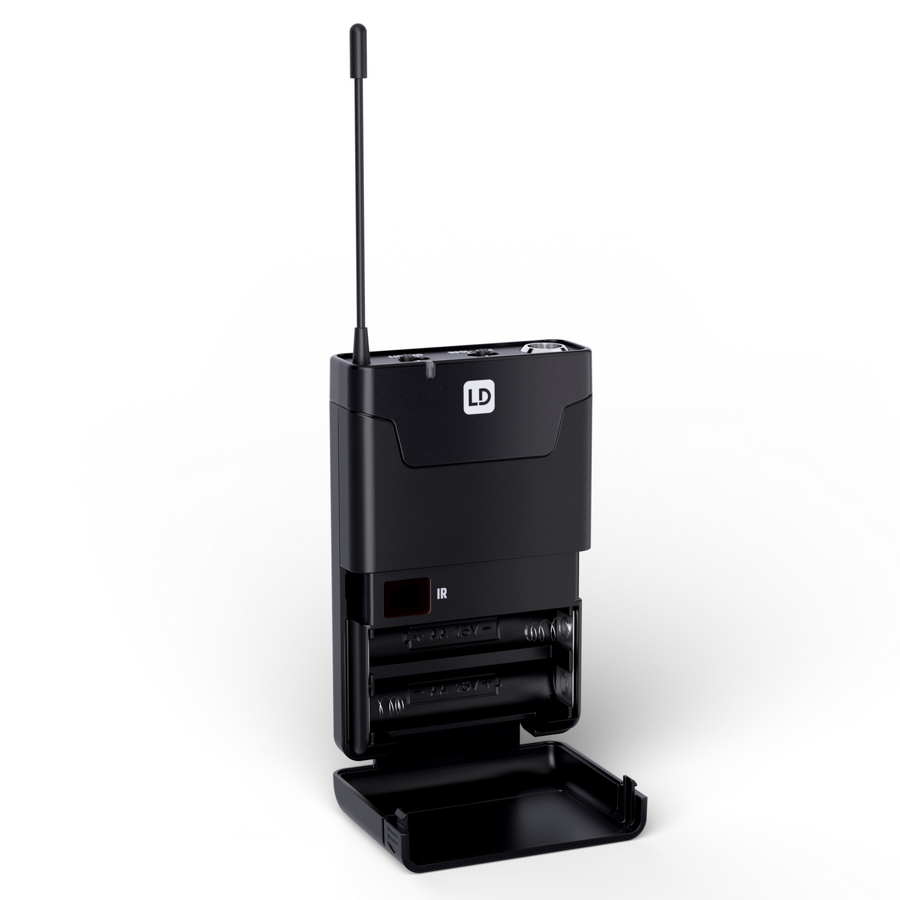

Power supply: 2 x AA battery
Operating time: >8 h (with alkaline batteries)
Width: 64 mm
Height: 100 mm
Depth: 21 mm
Weight: 0,09 kg

Other features
incl. batteries, IR frequency synchronisation, standby, switchable gain



Specifications

SKU
LDS-ANNYBPB5
Model #
LDS-ANNYBPB5
Barcode
930249001375
Brand
LD Systems
