Description

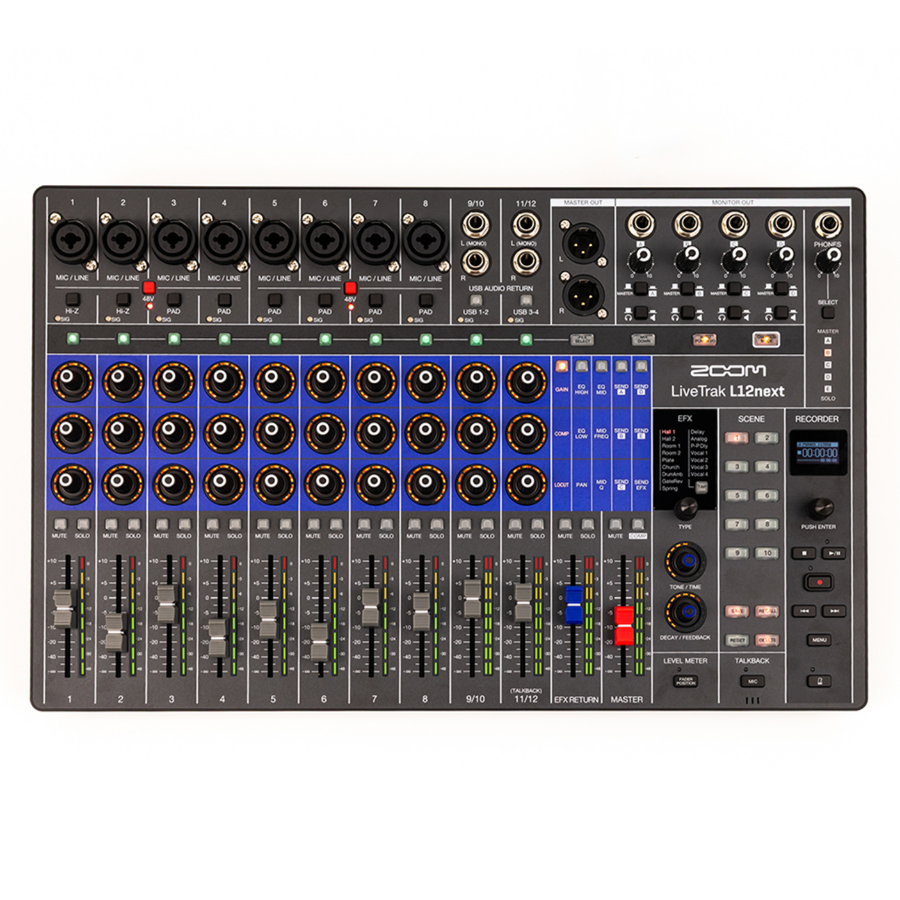

We are excited to announce that Mooloolaba Music has officially added the Zoom L12next digital mixer recorder to our current inventory.
The L12next represents a reimagining of digital mixing by blending the robust performance of a digital console with the intuitive nature of analog operation. You can utilize three dedicated knobs per channel to manage High, Mid, and Low EQ settings, while a straightforward switch allows for the adjustment of gain, pan, and sends, providing you with a tactile, hands-on mixing experience that feels exactly like using a traditional analog board.
Made for Live Performance
The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room.
Everything You Need, On Every Channel
In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.
Significantly Upgraded Preamps
The L12next’s upgraded preamps deliver clean gain (+70dB), low noise (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.
A Recorder for Every Session
The L12next has advanced recording features and captures up to 12 individual tracks at 24-bit/96 kHz, plus a stereo mix. Its new OLED screen streamlines recording controls and setup.
For Perfect Takes
Newly added features such as Overdub Mode and Auto Punch In/Out allow precise layering and easy re-recording. The new File Select button allows you to easily load additional tracks to expand your mix.
Your Final Mix is Ready
The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master Compressor adds warm, natural compression that enhances the overall mix.
Features
Inputs
Combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices.
Channel Strip
In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends.
Function Selector
Choose which controls are accessible on the multi-function encoder knobs ie: EQ, Gain, Sends
Custom Mixes
Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. The main outputs feature XLR connectors to easily connect to your PA.
Recording Features
Quick access to advanced recording capabilities such as mixdown, overdub and autopunch.
Main Controls
LED screen and encoder knob let you access the menu system to create new projects, recall previous projects, and customize your recorder settings.
Scene Control
Save up to ten different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more.
Talkback Mic
The engineer can use the talkback mic to talk to the artists right from the board.
Fader Position
Fader Position button lets you quickly view saved fader positions when recalling scenes.
EFX
16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.
Specifications
| Input and output channels | ||
| Inputs | Mono (MIC/LINE) | 8 |
| Stereo (LINE) | 2 | |
| Outputs | MASTER OUT | 1 |
| MONITOR OUT | 5 | |
| Inputs | ||
| Mono (MIC/LINE) | Type | XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
| Input gain | PAD off: +16 – +60 dB | |
| PAD on: −10 – +34 dB | ||
| Hi-Z on: 0 – +44 dB (when gain boost off) | ||
| Input impedance | XLR: 4.6 kΩ or more | |
| TRS: 4.6 kΩ/1 MΩ (when Hi-Z on) | ||
| Maximum input level | PAD off: −2 dBu (at 0 dBFS) | |
| PAD on: +24 dBu (at 0 dBFS) | ||
| Phantom power | +48 V | |
| Stereo (LINE) | Type | TS phone jacks (unbalanced) |
| Maximum input level | +14 dBu | |
| Outputs | ||
| MASTER OUT | Type | XLR jacks (balanced) |
| Maximum output level | +14.5 dBu | |
| Output impedance | 200 Ω | |
| MONITOR OUT | Type | Standard stereo phone jacks |
| Maximum output level | 42 mW + 42 mW at 60 Ω | |
| Output impedance | 55 Ω | |
| Buses | ||
| MASTER | 1 | |
| MONITOR | 5 | |
| SEND EFX | 1 | |
| Channel strip | ||
| COMP | ||
| LOCUT | 40–600 Hz, 12 dB/OCT | |
| EQ | HIGH | 10 kHz, ±15 dB, shelving |
| MID | 100 Hz – 8 kHz, ±15 dB, peaking | |
| LOW | 100 Hz, ±15 dB, shelving | |
| PHASE | ||
| Level meters | ||
| 8 segments | ||
| Send effects | ||
| 16 types | ||
| Recorder | ||
| Maximum simultaneous recording tracks | 14 | |
| Maximum simultaneous playback tracks | 12 | |
| Recording formats | Individual tracks: 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV | |
| Master tracks: 44.1/48/96 kHz, 16/24-bit or 32-bit float, mono/stereo WAV | ||
| Recording media | 4–32GB cards compatible with the SDHC specification (class 10 or higher) | |
| 64GB–1TB cards compatible with the SDXC specification (class 10 or higher) | ||
| Audio interface | ||
| Input and output channels | Recording: 14 channels | |
| Playback: 4 channels | ||
| Sampling frequencies | 44.1/48/96 kHz | |
| Bit depths | 24-bit, 32-bit float | |
| Interface | USB 2.0 | |
| Card reader | Mass storage class USB 2.0 High Speed | |
| Sample rates | 44.1/48/96 kHz | |
| Frequency response | 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz | |
| 96 kHz: −3.0 dB, 20 Hz – 40 kHz | ||
| Equivalent input noise | Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input | |
| Display | 128×64 OLED | |
| Power | AC adapter: ZOOM AD-19 (DC 12V/2A) | |
| Power consumption | 16 W maximum | |
| Dimensions | 445 mm (W) × 285 mm (D) × 73 mm (H) | |
| Weight (main unit only) | 2.40 kg | |
| Note: 0 dBu = 0.775 Vrms | ||
