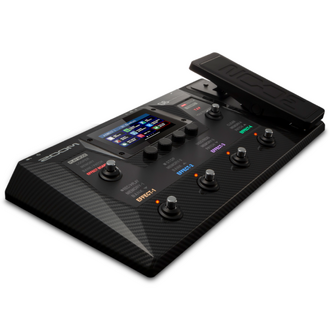

Zoom G6 Guitar Multi-Effects Pedal

Edit Product

SKU: FXM056

UPC: 4515260023622

Linked to MusiPos

RRP: $849

Stock:
0 — Primary Warehouse
0 — Secondary Warehouse

tik1 | tik2 | tik3

Description

The Future of Pedals

Jaw dropping effects combined with powerful amp modeling, the G6 gives you more sonic possibilities than ever before.

Drag and Drop

Your sounds may be complex but building them shouldn’t be. With easy-to-use application driven technology, the G6’s 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds

Amps + Cabs

All the best amps in amp history are in here (and a few new ones, too), along with 70 pre-loaded, precisely recorded impulse responses (IR) and room to add more than 100 of your own.

The Right Sound

The G6 also delivers the ultimate collection of Zoom’s legendary guitar effects and tones, including brand new Distortion and Modulation effects.

Plan Ahead

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to seven effects.

Infinite Looping

The G6 can create multiple loops up to 2 hours each in length with an SD/SDXC card.* Create, store and recall up to 256 loop files.

*45-second looper without SD card.

Groove & Go

Choose your groove from the 68 onboard rhythm patterns, styles and time signatures.

Take it With You

Portable, versatile, and packed with tonal possibilities, the G6 is perfect for guitar players on the move.

Connectivity

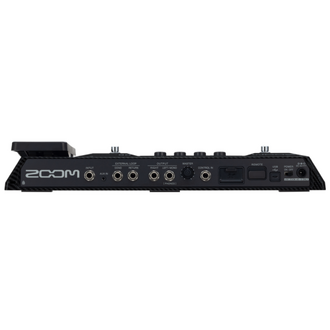

The G6 has a mono input, stereo outputs with volume control, a mono fx loop, aux in, control in and headphone out.

Using the USB port, the G6 also functions as a 2in/2out audio interface for Mac and PC.

Guitar Lab Software

With a USB connection, Guitar Lab software allows you to browse and upload/download an endless assortment of amps, effects and artists patches.

Handy Guitar Lab App

Connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor wirelessly connect your phone as a secondary interface for your G6.

Features of the G6

Integrated pedal board with 6 stomp switches and expression/volume pedal
Ultimate Zoom FX processor technology with custom amp modeling
4.3˝ color LCD touch-screen interface
Chain up to 9 effects or 7 effects + amp emulation
IR load function for speaker cabinet simulation
New Play Mode Footswitch provides instant access to different play modes
68 rhythm patterns
Looper with loop time up to 2 hours with SD card installed
Built-in USB audio interface (2-in / 2-out)
Compatible with Zoom Guitar Lab
Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app (iOS)

Here's what comes included with the G6:

G6 Multi-Effects Processor
Zoom AD-16 AC Adapter
Quick Guide

Optional Accessories:

FP02M Expression Pedal
BTA-1 Bluetooth Adapter

Specifications

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS	9 effects or 7 effects + Amp
USER PATCHES	240
SAMPLING FREQUENCY	44.1 kHz
A/D CONVERSION	24-bit 128x oversampling
D/A CONVERSION	24-bit 128x oversampling
SIGNAL PROCESSING	32-bit
FREQUENCY CHARACTERISTICS	20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)
DISPLAY	4.3" TFT color LCD (480x272)
INPUTS
INPUT	Standard mono phone jack
	Rated input level: -20 dBu
	Input impedance (line): 500 Ωk
RETURN	Standard mono phone jack
	Rated input level: -20 dBu
	Input impedance (line): 1 ΩM
AUX IN	Stereo mini jack
	Rated input level: -10 dBu
	Input impedance (line): 10 Ωk
OUTPUTS
OUTPUT R	Standard mono phone jack
	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
OUTPUT L/MONO (PHONES)	Standard stereo phone jack
	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
	Headphones 24 mW + 24 mW (at 32 load)
SEND	Standard stereo phone jack
	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
INPUT S/N	123 dB
NOISE FLOOR (RESIDUAL NOISE)
L/R	-99.3 dBu
SEND	-99.0 dBu
CONTROL INPUT	FP02M input
POWER	AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
USB	Port: USB 2.0 Micro-B/Supported cable type: Micro-B
	Guitar Lab: USB 1.1 Full Speed
	Audio Interface: USB 2.0 Full Speed, 44.1 kHz/32-bit, 2 in, 2 out
	- Use a USB cable that supports data transfer. USB bus power is not supported
SD CARD
STANDARDS	Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
LOOPER	44.1 kHz/ 16-bit stereo WAV
IR	44.1 - 192kHz, 16/24/32-bit WAV
REMOTE	ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS	228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT	1.94 kg

Specifications

SKU: FXM056
Model #: FXM056
Barcode: 930013020878
Brand: Zoom
