SKU: VFG3010
UPC:
Linked to MusiPos
RRP: $599.99
Stock:
1 — Primary Warehouse
Description
Designed for effortless mobility, this PA system features an integrated lithium-ion battery that ensures you can take your sound anywhere. The unit is driven by a 100 W power amplifier and utilizes a coaxial compression driver, which combines a 1.4” voice coil high-frequency component with a 6.5” cone low-frequency driver to deliver clear audio. Additionally, the device comes fully equipped with a built-in 3-channel mixer to handle your signal routing needs.
At Mooloolaba Music, we are confident that the STAGEPAS 100BTR Portable PA System is the ideal choice for anyone searching for a mini PA system that combines a compact, small-scale design with impressive power, all while remaining completely straightforward and fuss-free to use.
Features
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out
- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
- Internal lithium-ion battery
Specifications
Outline Type - 2-way Bi-amp Powered Speaker with mixer
I/O Inputs - INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
Outputs - OUTPUT: XLR3-32 (INPUT 1-3 mix)
Bluetooth - Ver.5.0, A2DP (SBC, AAC), Class 1
Mixing capability Mixing channels - 3
Input channel functions - Hi-Z: CH2
Output channel functions - 2 Band EQ
General specifications Speaker type - Coaxcial speaker with compression driver
Frequency range (-10dB) - 70 Hz – 20 kHz
Coverage area - H90ﾟ x V90ﾟ
Crossover - 1.8 kHz (FIR-X)
Maximum output level (1m; on axis) - 120 dB SPL *1
Components LF - 6.5" Cone, 1.7" voice coil
HF - 1" throat compression driver, 1.4" voice coil
Amplifier class - Class-D
Power rating Dynamic - 100 W (LF: 93 W, HF: 7 W)
Cooling - Natural convection (no fan)
Power consumption - 10 W (Idle), 30 W (1/8 power), 50 W (Rated)
Power requirements - 100-240 V 50/60 Hz
Battery Type - Rechargeable Lithium ion battery pack
Capacity - 60 Wh
Operating Time - Maximum 6 hours, 1/16 power continuous 5 hours
Charging Time - Approx. 2.5 hours
Cabinet material - Plastic (PP)
Handle - Bottom x1 (Rotatable)
Flying and mounting hardware - 1 × 3/8", depth 12 mm (center of handle)
Dimensions (W x H x D) - 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight - 5.5 kg (12.1 lbs), without AC adaptor
Accessories - Power cord x 1, AC adaptor (PA-500) x 1
Options - Carrying bag: BAG-STP100
- SKU
- VFG3010
- Model #
- STAGEPAS100BTR
- Barcode
- 930042023072
- Brand
- Yamaha
Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.
Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:
a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.
We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.
Reviews

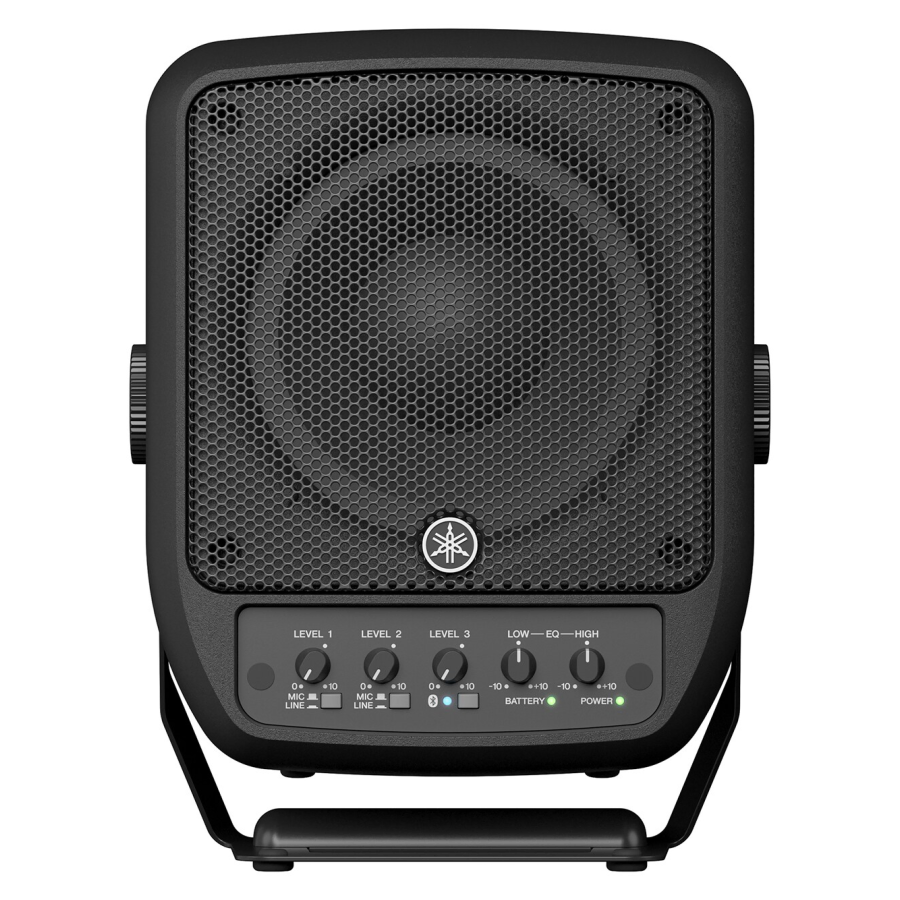

Yamaha STAGEPAS100BTR Portable PA System
