Description

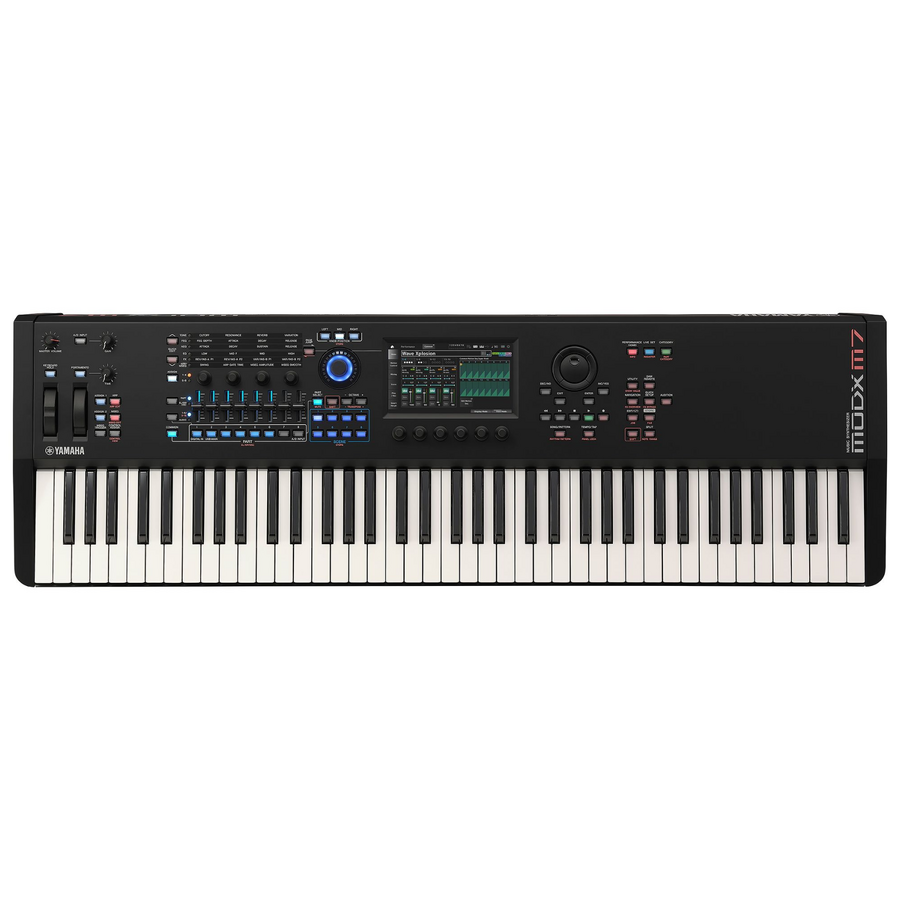

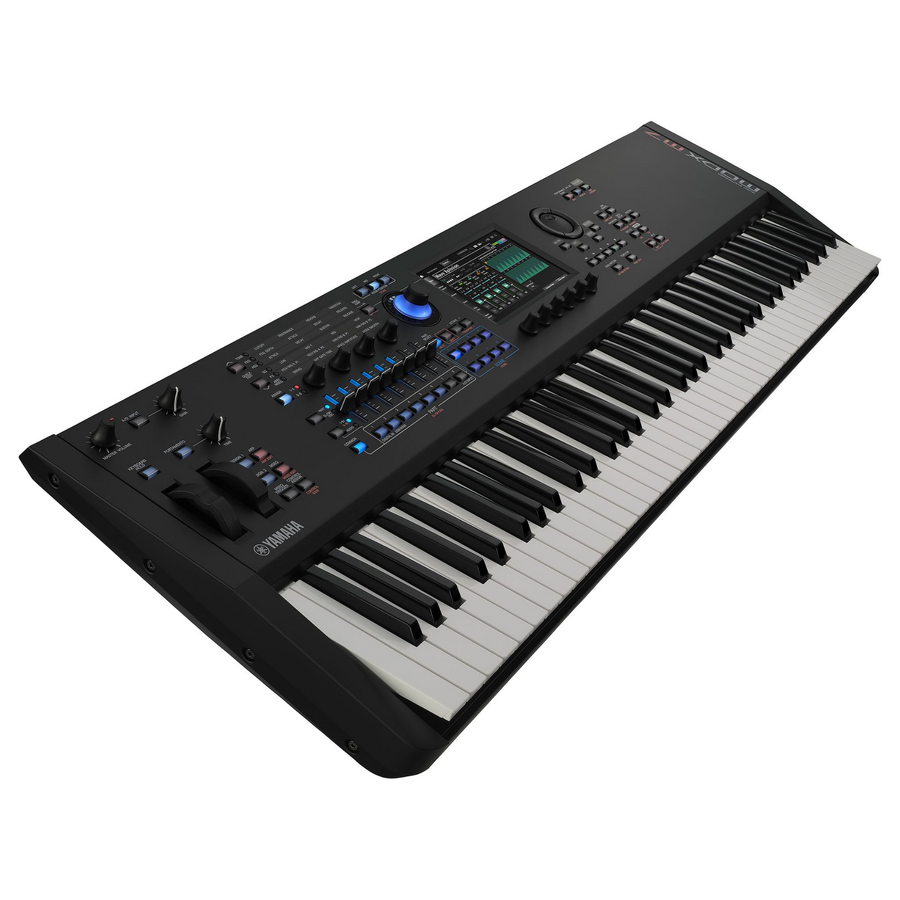

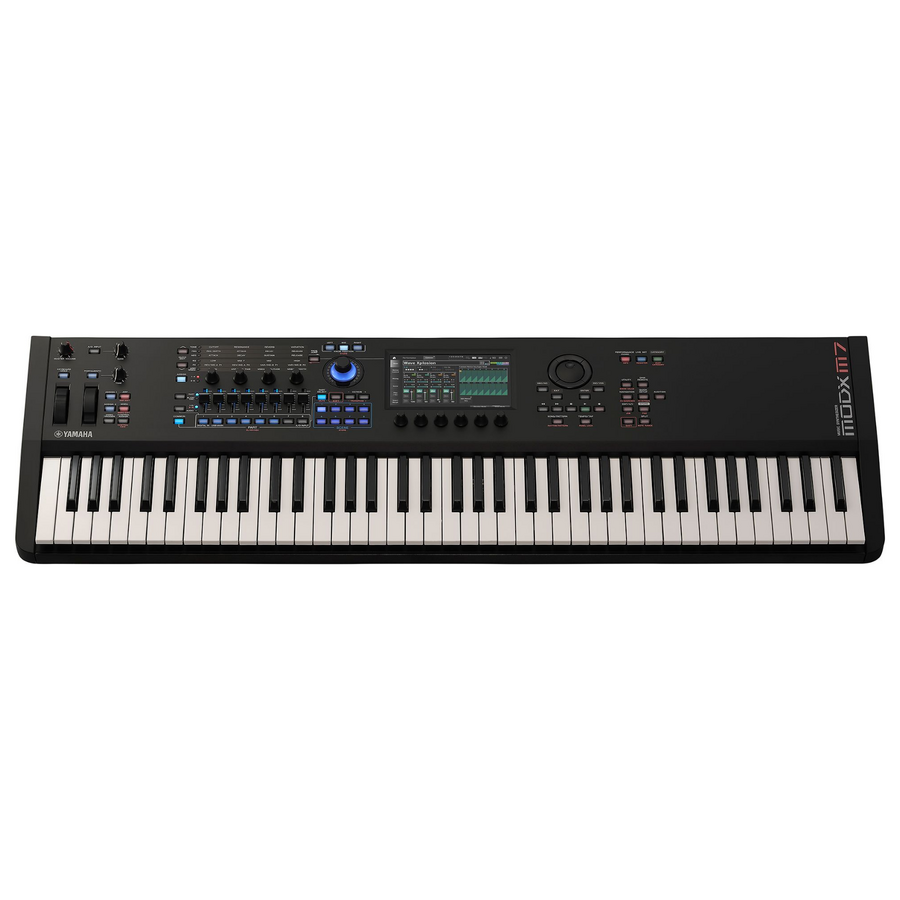

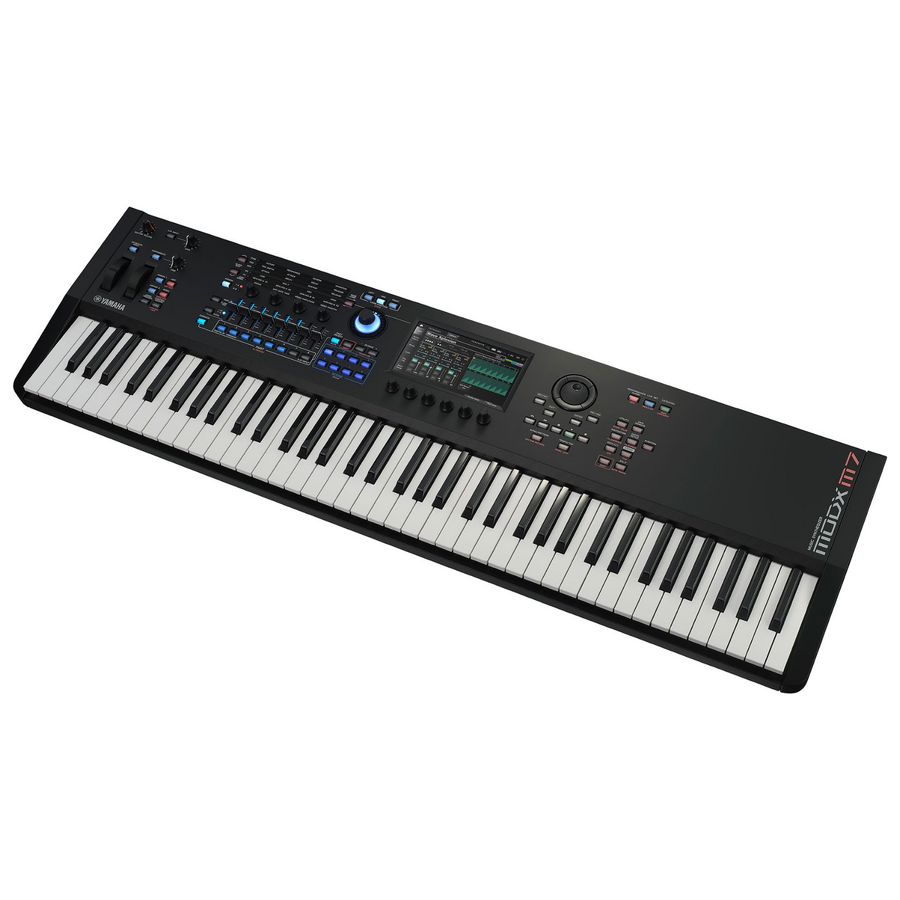

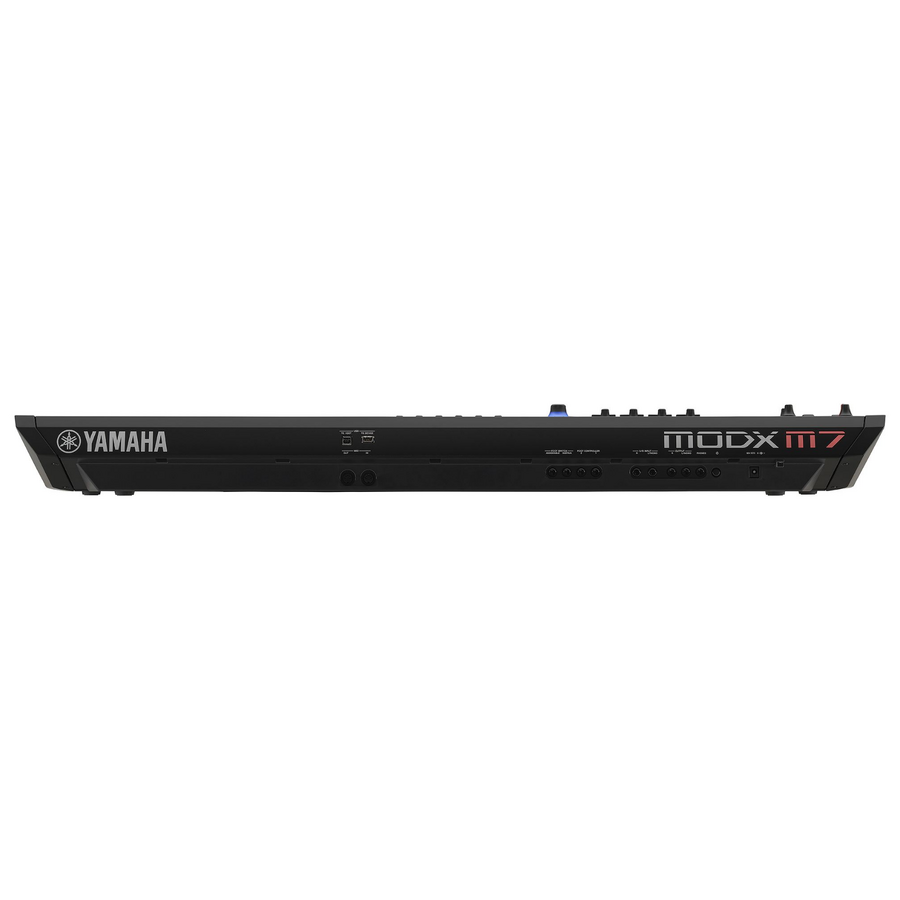

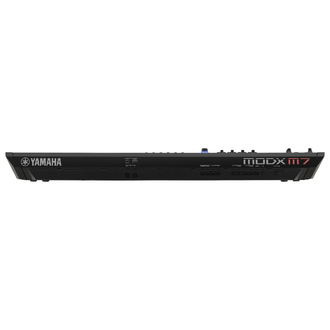

Yamaha MODX M7 76-Key Synthesizer

Built for working keyboardists, the 76-key MODX M7 delivers exceptional sound, expressive control and streamlined workflow in a compact, lightweight design ideal for stage or studio. Featuring three engines that create a stunning variety of sounds, as well as improved keyboard action for better playability, MODX M elevates expression everywhere.

INSPIRING SOUNDS
MODX M incorporates the new AN-X virtual analogue synthesizer engine from Montage M alongside our powerful AWM2 and FM-X engines. This makes MODX M a creative powerhouse, capable of unique sounds that push the boundaries of synthesis and iconic, classic sounds that are a must have.

VERSATILE CONTROL
Now with 8 faders, alongside essential controls like part and scene buttons and our unique Motion Control Synthesis Engine, MODX M lets you get hands on with your sound. MODX M is also MIDI 2.0 capable, meaning that the knobs, Super Knob, pitch bend, mod wheel, are now high resolution, making it smoother than its predecessors.

EXPANDED SOFTSYNTH PLUGIN (ESP)*
Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favourite Digital Audio Workstation (DAW). ESP lets you to create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration.

*ESP for MODX M will be available from JAN 2026.

Specifications

Dimensions
Width: 1,089 mm (42-7/8")
Height: 117 mm (4-5/8")
Depth: 347 mm (13-11/16")
Weight: 7.6 kg (16 lb, 12 oz)

Features

AN-X ENGINE

Integrated into the Motion Control system, the AN-X Engine allows you to create expressive, unique analog sounds.
- Two filters
- 10 filter types
- Pulse width modulation
- Oscillator Self Sync
- Ring modulation
- FM, and wave shaper
- Wave folder
- Voltage drift and aging settings to simulate vintage synth behavior

AWM2
Experience realism and detail with the MODX M Advanced Wave Memory (AWM2). Offering up to 128 Elements per Part, AWM2 allows for more layers and articulations, giving you an expansive canvas for sound creation, especially for “nameable” sounds such as piano and strings.

268 NOTES TOTAL POLYPHONY
MODX M offers up to 268 notes of polyphony across its three engines:

- 128 notes for AWM2 Preset and User Waveform Parts

- 128 notes for FM-X Parts

- 12 notes for AN-X Parts

AND MORE
- PRESET WAVE AND FLASH MEMORY UPGRADE: MODX M offers approx. 2x the memory over MODX/MODX+ with an increase from 5.68 GB to 10.7 GB of AWM2 memory, and 1.9 GB of User flash memory.

- VCM ROTARY SPEAKER: The VCM Rotary Speaker effect simulates the rich and enveloping motion of a classic rotary speaker cabinet.

DEDICATED PART AND SCENE CONTROL
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly beneficial for live performances, this intuitive control improves overall usability and adds dimension to each Performance.

MOTION CONTROL SYNTHESIS ENGINE
Experience a new level of sound design with this groundbreaking engine. You’ll interact with sound like never before using powerful tools such as:

- Motion Sequences – dynamically automate synth and effect parameters, all perfectly in sync with your tempo

- Super Knob – control dozens of modulations with a single gesture

- Envelope Follower – shape your sound using input from the A/D or another Part

- 8 Faders, 4 Knobs

- 4 Pedal Inputs

- 6 Display Knobs

FASTER, MORE INTUITIVE NAVIGATION
Upgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a color touch screen, 6 display knobs, and Stereo A/D input with 2 insertion effects.

USB MIDI 2.0 AND MULTICHANNEL AUDIO INTERFACE
Simplifying your studio setup, MODX M offers a USB MIDI and multichannel 10 output/4 input audio interface in 44.1kHz. Streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable, so you can spend more time being creative.

MIDI 2.0 delivers high resolution data for note velocity, Super Knob, pitch bend, modulation.

CUBASE AI
Cubase AI provides the basic tools for recording, editing and mixing - from the initial idea to the final masterpiece. It’s the perfect entry into the world of Digital Audio Workstations (DAW), offering powerful, yet easy-to-use software tools for all genres.
