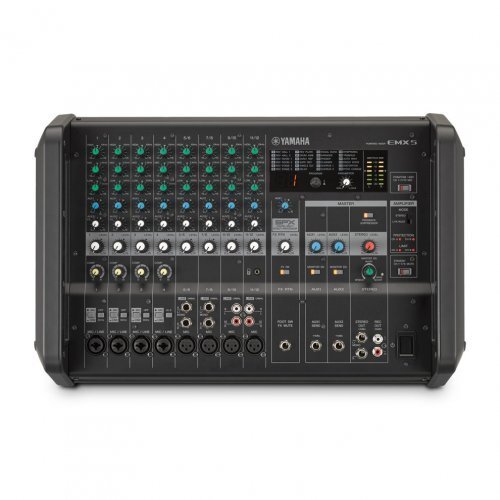

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.

Specifications

Specs

Outline

I/O	Inputs	TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
	Phantom power	+48 V
	Outputs	SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
	Control and others	FOOT SWITCH : Effect Mute on/off
Bus		Stereo: 1, AUX: 2 (Including FX)
Input Channel Function	PAD	30 dB (CH1-4)
	Hi-Z	Supported (CH4)
	HPF	80 Hz, -12 dB/oct. (CH1–3)
	COMP	1-knob COMP (CH1–4)
	EQ HIGH	10 kHz +15 dB / -15 dB (Shelving)
	EQ MID	2.5 kHz +15 dB / -15 dB (Peaking)
	EQ LOW	100 Hz +15 dB / -15 dB (Shelving)
On-board processors	DSP	SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiers	Maximum output power @4ohms	1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
On-board amplifiers	Maximum output power @8ohms	1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter		2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)

General specifications

Frequency response		Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion		Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level	Equivalent input noise	-117 dBu (Noise is measured with A-weighting filter)
Hum & noise level	Residual output noise	Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk		-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit	Load protection	DC-fault
	Amplifier protection	Over heat protection, Over current protection, Integral power protection
	Power supply protection	Over heat protection, Over current protection
Power requirements		AC 100-240V, 50Hz/60Hz
Power consumption		42 W (Idle) / 210 W (1/8 Power)
Dimensions	W	465 mm (18 5/16")
	H	308 mm (12 1/8")
	D	325 mm (12 13/16")
Net weight		9.5 kg (20.9 lbs)
Accessories		Owner’s Manual, Technical Specifications, AC power cord (2.5 m)
Options		Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others		Operating Temperature : 0 to +40℃

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

Input Characteristics

Input Jack		MIC/LINE	Hi-Z	Actual Load Impedance	For Use with Nominal	Input Level			Connector
Input Jack		MIC/LINE	Hi-Z	Actual Load Impedance	For Use with Nominal	Sensitivity *1	Nominal Level (▼ Position) *2	Max. Before Clip	Connector
CH 1–4	XLR	MIC	-	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	Combo jack *3 (Balanced)
	XLR	LINE	-	3 kΩ	50–600 Ω Mics	-30 dBu (24.5 mV)	-13 dBu (173 mV)	+15 dBu (4.36 V)
	Phone	MIC	-	8 kΩ	600 Ω Lines	-50 dBu (2.45 mV)	-33 dBu (17.3 mV)	-5 dBu (436 mV)
	Phone	LINE	-	8 kΩ	600 Ω Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+25 dBu (13.8 V)
CH 4 (Hi-Z)	Phone	MIC	ON	1 MΩ	10 kΩ Lines	-50 dBu (2.45 mV)	-33 dBu (17.3 mV)	-5 dBu (436 mV)	Phone jack *4 (Unbalanced)
CH 4 (Hi-Z)	Phone	LINE	ON	1 MΩ	10 kΩ Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+20 dBu (7.75 V)	Phone jack *4 (Unbalanced)
CH 5/6, 7/8	XLR	-	-	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	XLR-3-31 *5 (Balanced)
CH 5/6, 7/8	Phone	-	-	10 kΩ	600 Ω Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+25 dBu (13.8 V)	Phone jack *4 (Unbalanced)
CH 9/10, 11/12	XLR	-	-	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	XLR-3-31 *5 (Balanced)
CH 9/10, 11/12	Pin	-	-	10 kΩ	600 Ω Lines	-8 dBu (316 mV)	+10 dBu (2.45 V)	+25 dBu (13.8 V)	RCA pin (Unbalanced)
CH 11/12	Mini jack	-	-	10 kΩ	600 Ω Lines	-8 dBu (316 mV)	+10 dBu (2.45 V)	+25 dBu (13.8 V)	Stereo mini jack *6 (Unbalanced)

(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

Output Characteristics

Output Jack	Actual Source Impedance	For Use with Nominal	Output level		Connector
Output Jack	Actual Source Impedance	For Use with Nominal	Nominal	Max. Before Clip	Connector
STEREO OUT L, R	600 Ω	10 kΩ Lines	+4 dBu (1.228 V)	+20 dBu (7.75 V)	Phone jack *1 (Impedance balanced)
AUX SEND 1, 2	600 Ω	10 kΩ Lines	+4 dBu (1.228 V)	+20 dBu (7.75 V)	Phone jack *1 (Impedance balanced)
REC OUT L, R	600 Ω	10 kΩ Lines	-10 dBV (0.308 V)	+18 dBV (7.75 V)	RCA pin (Unbalanced)

(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics

Output Jack	Actual Source Impedance	For Use with Nominal	Output level		Connector
Output Jack	Actual Source Impedance	For Use with Nominal	1 kHz THD+N < 1% (CEA2006)	1 kHz THD+N < 10% (CEA2006)	Connector
SPEAKERS A, B	< 0.1 Ω	4 Ω Speakers	600 W	710 W	speakON NL4 1 Phone jack 2
SPEAKERS A, B	< 0.1 Ω	8 Ω Speakers	400 W	500 W	speakON NL4 1 Phone jack 2

(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative
