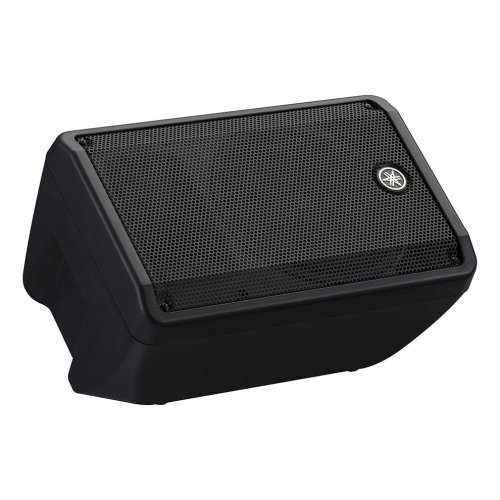

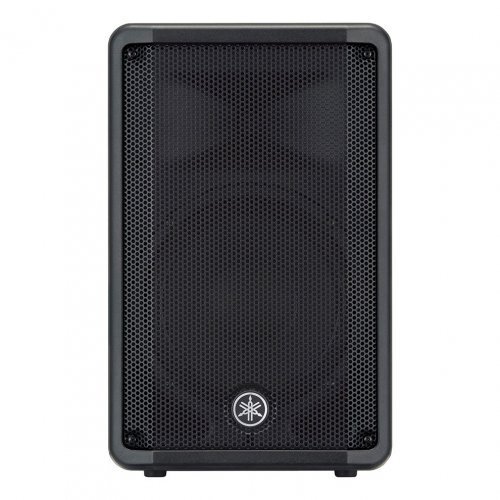

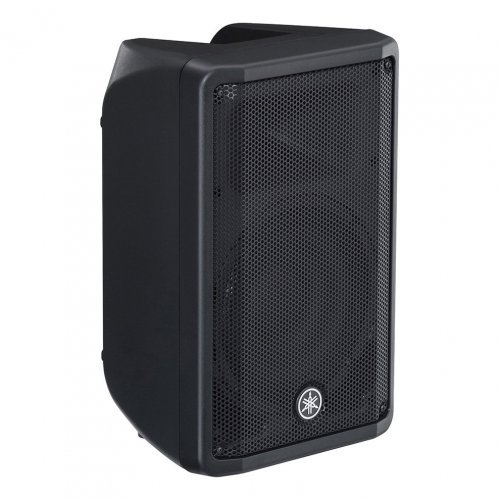

Yamaha CBR10 10" Passive Speaker Bin

CBR10

$429.00 $499.99

Order now. Delivery from national warehouse

5-10 Business Days

Buy Now and Pay later |

Need some help?
Chat to a specialist or call 5444 8889

Calculate Shipping

Description

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

Specifications

Specs

General specifications

Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 50 Hz - 20 kHz
Nominal coverage H 90°
V 60°
Components LF 10" Cone, 2" Voice Coil (Ferrite Magnet)
HF 1" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.8 kHz
Power rating NOISE 175W
PGM 350W
PEAK 700W
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 94dB SPL
Peak (Calculated) 123 dB SPL

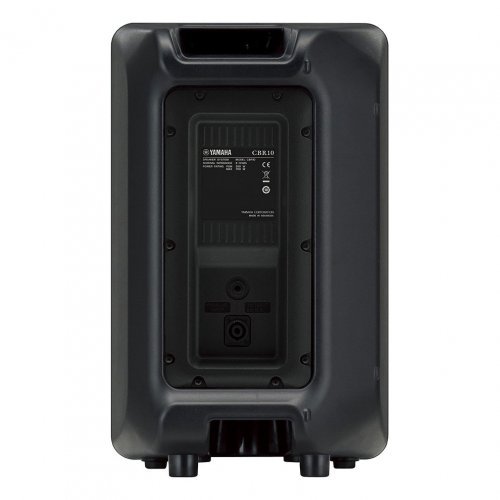

I/O connectors 1/4"Phone x 1, speakON NL4MP x 1
Cabinet material Plastic
Finish Black
Handle Top x 1
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm Bottom x 1
Dimensions W 308mm (12.1")
H 493mm (19.4")
D 289mm (11.4")
Net weight 9.4 kg (20.7 lbs)
Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
