Andy Wood is recognized as one of this generation’s most influential guitarists: he spent most of his childhood playing and competing in festivals and touring the bluegrass circuit with his cousin and grandfather; by the age of 22 he demonstrated his outstanding electric guitar skills being crowned champion of Guitar Center’s “Guitarmageddon” competition. Andy has toured professionally with a wide range of acts including Rascal Flatts, Gary Allan, Locash, Scott Stapp, and Sebastian Bach. Andy Wood has totally blurred the lines of preconceived genres with his most recent album, “Junktown”, a masterpiece of different guitar styles and progressive southern inspired fusion. Junktown was recorded with a prototype of what is now the Wampler Gearbox Andy Wood Signature Overdrive.

Channel 1 (based on the legendary Tumnus) is a perfect addition to any board setup and any playing style. Its versatility allows you to stack it with another pedal to help push or shape the total amount of gain, use it as a stand-alone overdrive, or as a slightly dirty boost to push the front end of your amp over the edge. Channel 2 (Based on the Pinnacle, one of Brian’s most popular distortion pedals) delivers that legendary “Brown Sound”. The three band EQ lets you dial in your soaring lead tone while the unique noise gate keeps the clarity on point. Stack both channels together for tonal bliss - warm, yet brutal grunt; delicate and controllable harmonic overtones; beautifully defined distortion that cuts through the mix.

The Order switch lets you select which pedal comes first in the signal chain. For ultimate control, connect both sets of inputs and outputs to an external switcher to mix or match in parallel or series. Andy named this pedal the Gearbox as it was designed to be the driving force behind your sound.

Andy Wood

Andy Wood is recognized as one of this generation’s most influential guitarists and has totally blurred the lines of preconceived genres with his most recent album, “Junktown”, a masterpiece of different guitar styles and progressive southern inspired fusion. Junktown was recorded with a prototype of the Wampler Gearbox Andy Wood Signature Overdrive pedal.
Mixer Icon

Complete Control

Gearbox features modified versions of two of Brian Wampler’s best loved drive circuits: the Tumnus and the Pinnacle. This combination makes Gearbox one of the most versatile dual pedals Wampler has ever created. Andy tweaked the controls so with everything set at around noon this will sound fantastic out of the box with a minimum of setup.
Transistor Icon

Form and function

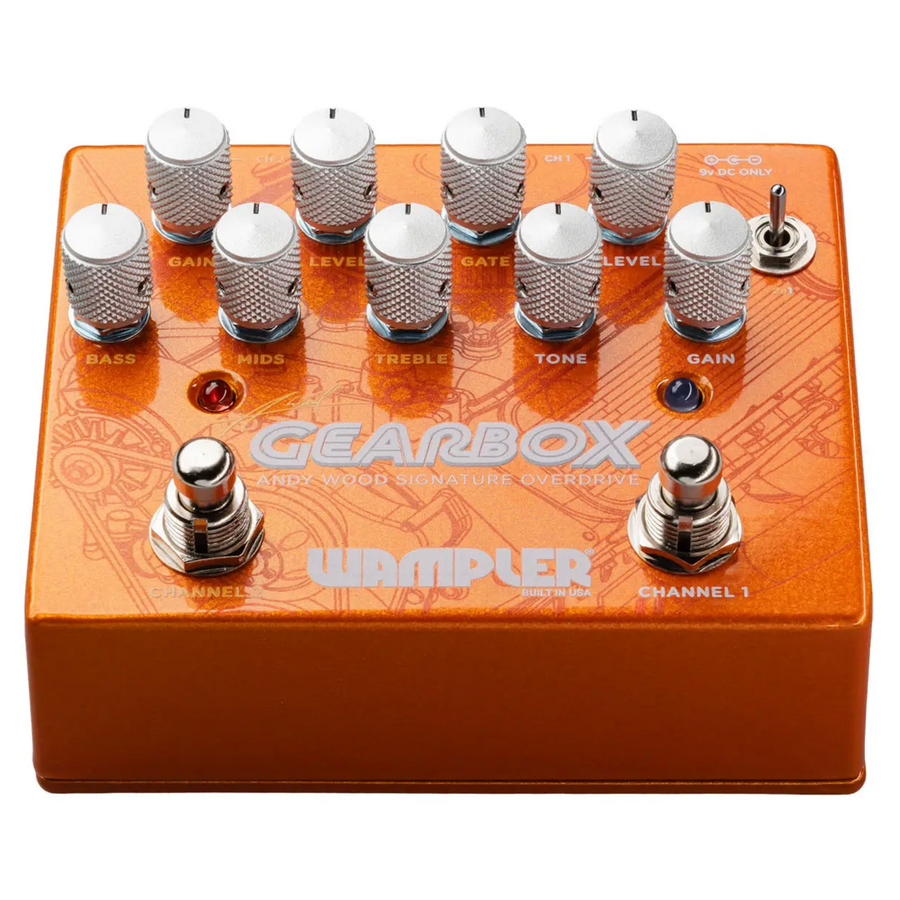

A top-switchable stacking order control, dual inputs and outputs, a unique noise gate, premium quality components, along with a stunning finish, makes Gearbox THE single pedal solution that delivers. The Order switch lets you select which pedal comes first in the signal chain.
Warranty icon

Built for Forever

Brian Wampler’s attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Gearbox. We’re all tone-freaks, and we’re always trying new things, but we hope this pedal finds it’s forever home on your pedalboard, so we built it to last that long.

Specifications

•     Built in the U.S.A.
•     High grade components picked for their superior sound and response
•     Dual Independent drives based on two of Brian Wampler’s Classic Circuits – a Tweaked Tumnus on Channel 1 and a modified Pinnacle on Channel 2
•     9v power jack – DC supply only, do not exceed 9v DC, battery Included
•     Power draw – 52mA at 9v

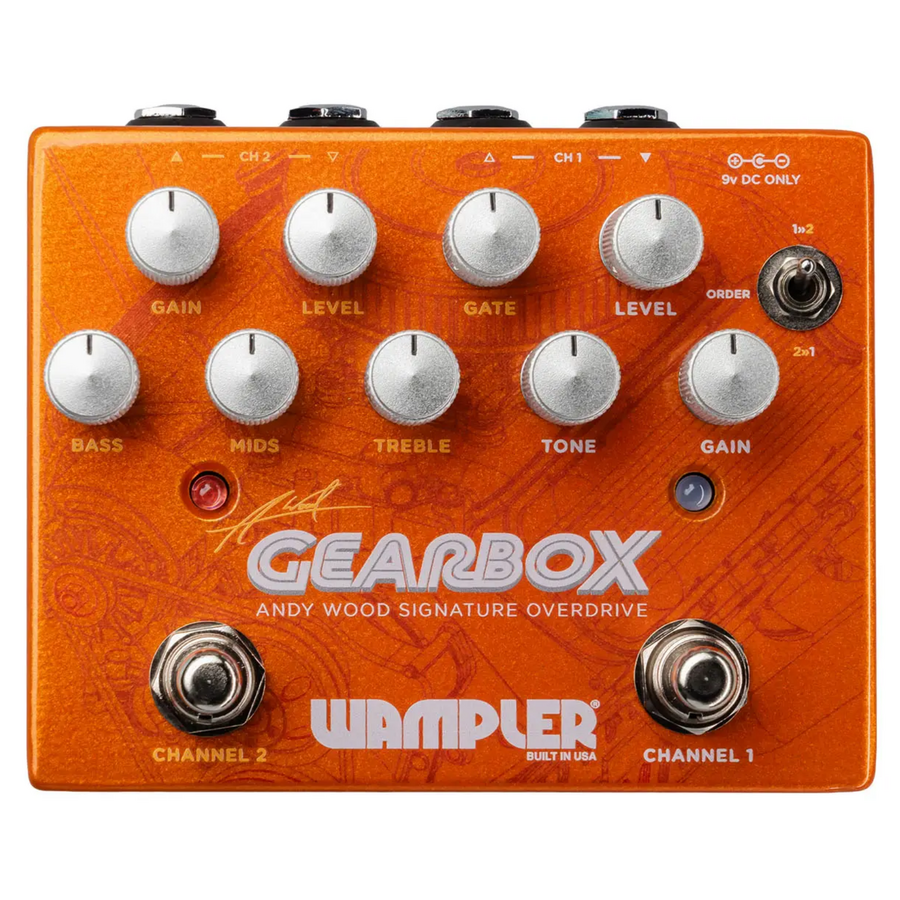

•     Independent Volume and Gain controls for both channels, Tone Control for channel 1, Bass, Middle, Treble and Noise Gate controls on Channel 2

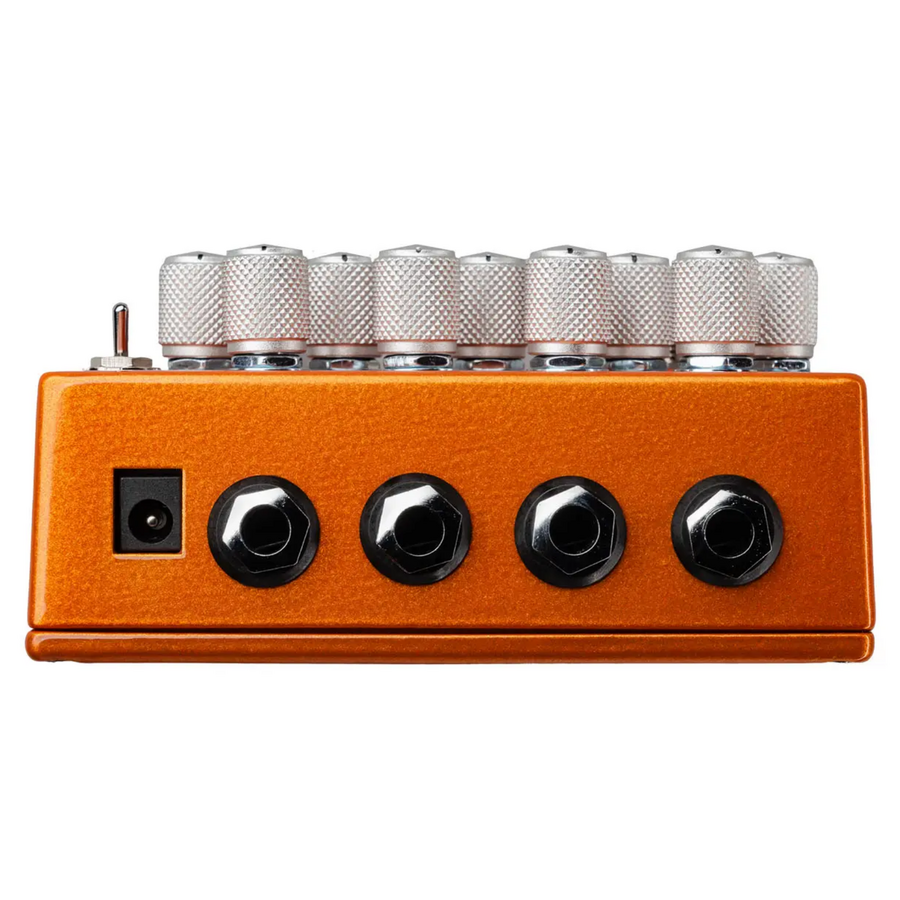

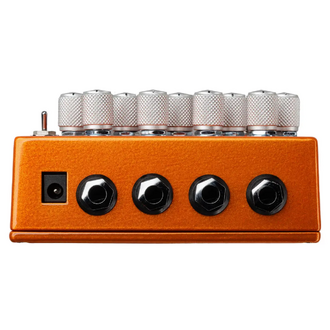

•     Channel Order switch, Noise Gate on Channel 2, two pairs of Input and Output jacks
•     4.5” x 4.5” x 1.5″ in size (114.3mm x 114.3mm x 38.1mm) – height excludes knobs and switches
•     As used by Andy Wood live and in the studio
•     Both channels can be used at the same time for ultimate “stacking” tones
•     Relay True Bypass
•     Includes Wampler’s limited 5-year warranty
