Effects

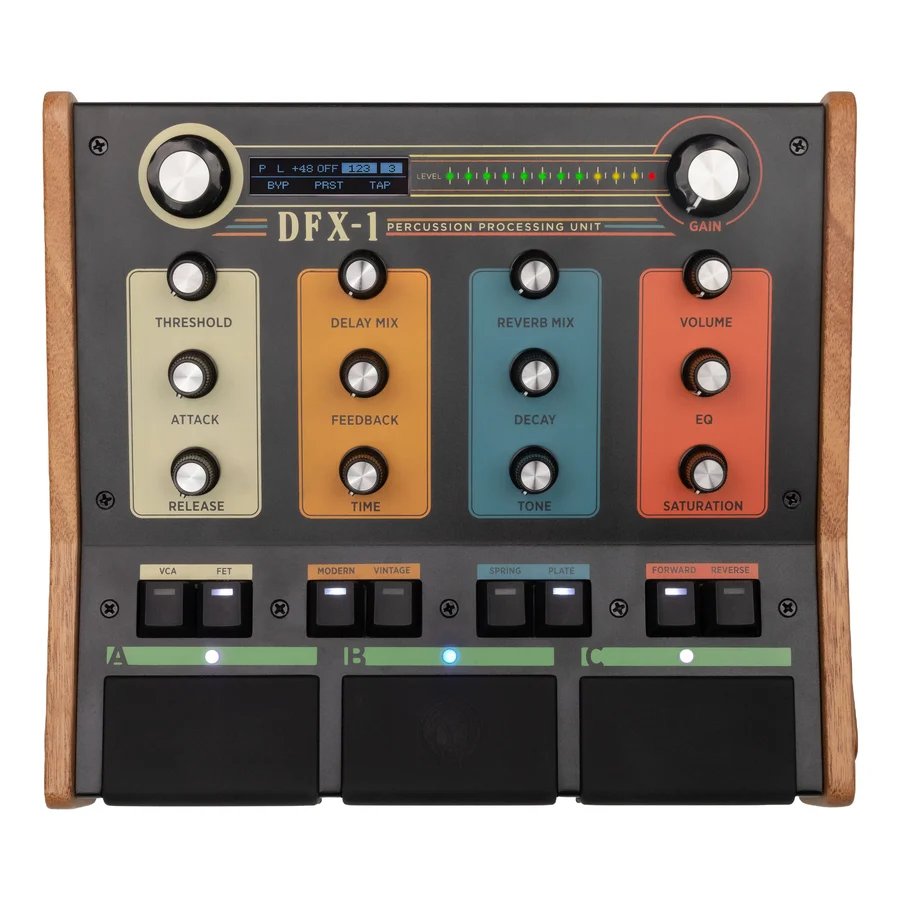

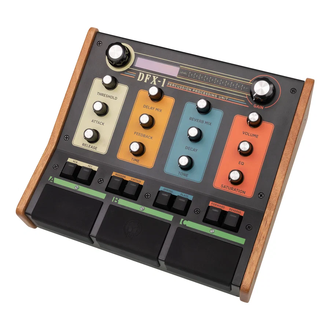

The DFX-1 is built around three main effect engines - Compression, Delay, and Reverb, each with two distinctive flavors so you can move smoothly between vintage character and modern clarity. Use the Saturation and Tilt-style EQ controls for further tone shaping. Additionally, the FX loop can incorporate pedals or outboard gear, and route effects in different orders for radically different results.

Compression (VCA / FET)

• VCA: Models the API 2500’s signature VCA compression for added punch and to smoothly “glue” the mix together.

• FET: Emulates the classic 1176 FET compressor with fast attack and release for punchy, gritty dynamics.

Delay (Vintage / Modern)

• Vintage: Warm, analog/tape-inspired repeats with natural degradation.

• Modern: Provides a tasteful digital delay with clearer repeats.

Reverb (Spring / Plate)

• Spring: Captures the splashy character of classic spring tanks with lively, wobbly reflections.

• Plate (Modern): Emulates a plate reverb for smooth, diffused reflections for a polished studio sheen.

Noise Gate

• Gate: Set the threshold, hold time, and release time of an audio noise gate to eliminate unwanted background noise from your signal.

Tone, Saturation & EQ

• Saturation: Asymmetrical, tube-like clipping that enhances even/odd harmonic content.


• EQ (Tilt EQ): Simple, musical tilt control:

  • center = flat

  • left = cuts highs/boosts lows

  • right = cuts lows/boosts highs


• Graphic / Parametric bands (menu):

  • LP Cut (1 kHz – 20 kHz)

  • HP Cut (2 Hz – 600 Hz)

  • Mid Cut (+6dB to −18 dB) with sweepable Mid Frequency (300-1k Hz) and adjustable Q.

Routing & FX Loop

• Effect Order:  Switching order changes how the effects interact with each other. Experiment with both to find what fits best in your mix!


  • FWD (Forward): Saturation → Compression → Delay → Reverb → Tone.


  • REV (Reverse): Saturation → Reverb → Delay → Compression → Tone.


• FX Loop Position:


  • The DFX-1’s FX loop allows you to place pedals or other external gear in the effect chain. You can also choose to place the FX loop after the saturation control, after the delay, or after the reverb!

Pads & Presets

• The three pads make it quick and easy to operate the DFX-1 in a live setting by quickly tapping them with a stick or your finger.

  • Pad A (Bypass): Toggle Bypass (LED Off = Bypassed, LED On = Enabled).

  • Pad B (Preset Cycle): Cycles through presets in groups of 3, based on your selection in the preset menu.

    • Group 1 = Presets 1-2-3

    • Group 2 = Presets 4-5-6 and so on.

    • The preset select page will scroll in groups of 3 so that you can see which 3 presets are in your current group.

  • Red = first preset in your group

  • Green = second preset in your group
    Blue = third preset in your group

  • Up to 128 presets can be accessed through the preset menu and via MIDI.

  • Presets can also be copied/pasted into different slots through the preset menu.

  • Pad C (Tap Tempo): Tap to set the Delay BPM. Tap divisions can be adjusted via the Delay menu to Quarter, Quarter Triplet, Eighth, Sixteenth, and Dotted Eighth notes.

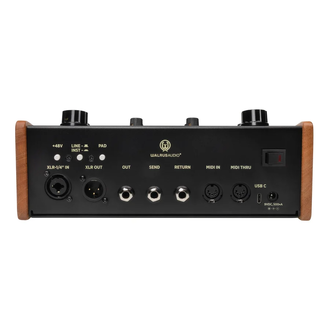

Inputs, outputs & power

• Inputs: XLR Balanced Input (mic) with +48 V phantom, ¼" Balanced Input (line/instrument switchable).

• Outputs: XLR Balanced Output, ¼" Balanced Output.

• FX Loop: ¼" Unbalanced Send and Return.

• MIDI: 5-pin DIN MIDI IN, 5-pin DIN MIDI THRU (clock and program control).

• USB-C: Firmware updates.

• Power: DC Barrel Connector — 2.1 mm x 5.5 mm, center negative.

The DFX-1 DOES include a 6ft (1.83 m) stock power supply with worldwide adapters.

• Rear pushbuttons: +48V phantom (XLR only), LINE/INST toggle for ¼" input (Line = −20 dB pad, 24 kΩ; Inst = high impedance 1 MΩ), Pad (global −20 dB attenuation after preamp).

Quick start tips

• Need punch? Try FET compression on the snare with a short attack and medium release, add a little saturation, and a short vintage delay.

• Need space? Tracking drums in a small room, but want a big sound? Hit the reverse button and use Plate reverb into the Compressor.

• Use external pedals? Put them in the FX loop and toggle the SEND location (→C, →D, →R) to find the sweet spot in the signal chain.

• Live setup: Save three presets per group for “drums dry,” “snare front,” and “ambient kit.” Step through presets by hitting Pad B or MIDI program change.

• Power: 9v 500mA Minimum
• The DFX-1 DOES include a 6ft (1.83m), 9v, 500mA stock power supply with worldwide adapters.
• Frequency Response: 20Hz to 20kHz
• Sample Rate: 44.1kHz
• Bit Depth: 24 Bit
• Unbalanced: SNR: 98dB @ 1kHz +4dBu A-weight, THD+N: 0.0032% @ 1kHz +4dBu A-weight, Dynamic Range: 101 @ 1kHz +4dBu A-weight
• Balanced: SNR: 99dB @ 1kHz +4dBu A-weight, THD+N: 0.0025% @ 1kHz +4dBu A-weight, Dynamic Range: 102 @ 1kHz +4dBu A-weight
• Total Latency: 2.9ms
• Preamp Gain: +60dB
• XLR Input Impedance: 6.8k Ohms
• 1/4” Line Input Impedance: 24k Ohms
• 1/4” Instrument Input Impedance: 1M Ohm
• FX Loop Send Impedance: 220 Ohm
• FX Loop Return Impedance: 1M Ohm
• XLR Output Impedance: 220 Ohm
• 1/4” Output Impedance: 220 Ohm
• Note: The XLR and 1/4” Outputs are not discrete outputs; they are simply split from the same source for your preferred connection type.
• Dimensions:
• Total Weight in Box: 5.7lb
• Box Dimensions: 312mm x 289mm x 115mm
• Unit Weight: 3.8lb

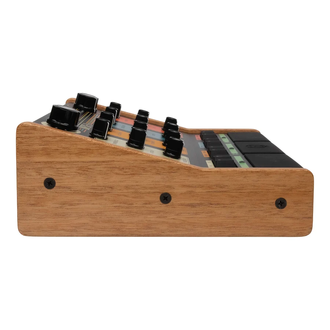

• Unit Dimensions(including knobs): 262mm x 232mm x 97mm
• This product is covered by our limited lifetime warranty
