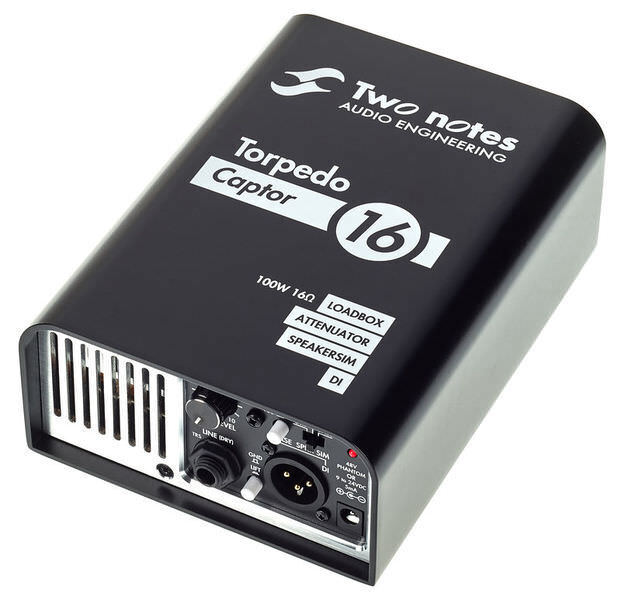

Two notes Torpedo Captor 16 Ohms 100 Watt Loadbox

Edit Product

SKU: 133002

UPC: 3700673800033

Linked to MusiPos

RRP: $449

Stock:
0 — Primary Warehouse
0 — Secondary Warehouse

tik1 | tik2 | tik3

Two notes Torpedo Captor 16 Ohms 100 Watt Loadbox

Description

The Industry Standard Box Of Tricks!

The Torpedo Captor allows you to capture a rich sound for direct recording without having to mic your speaker. Used without a speaker, it allows you to use your amp head in silent mode without any risk. If you wish to keep using a cabinet, the Torpedo Captor features a direct speaker THRU or ATT output which sends either the full volume of the amp to the cabinet or a fixed -20dB attenuation. It also offers a balanced XLR active DI output with selectable guitar or bass simulation taken from Two notes critically acclaimed Le-series preamps, as well as a balanced line output with adjustable output level and polarity.

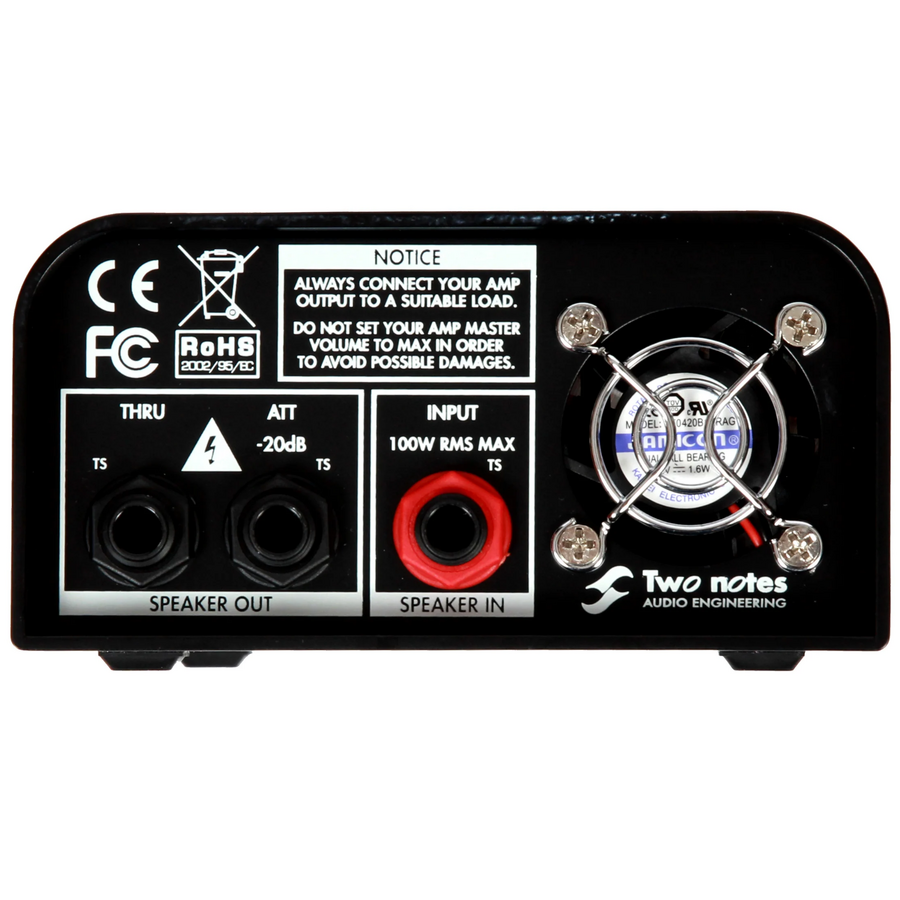

Input / Output

Speaker Input :1/4″ Jack unbalanced (TS)

Speaker Attenuated Output :1/4″ Jack unbalanced (TS)
Attenuation: -20dB

Speaker Thru* :
1/4″ Jack unbalanced (TS)
Directly connected to Speaker Input
*Loadbox disconnected when in use

Line Output* :
1/4″ Jack balanced (TRS)
Impedance: 1000 Ohms
Phase switch
Ground lift
*Without speaker simulation

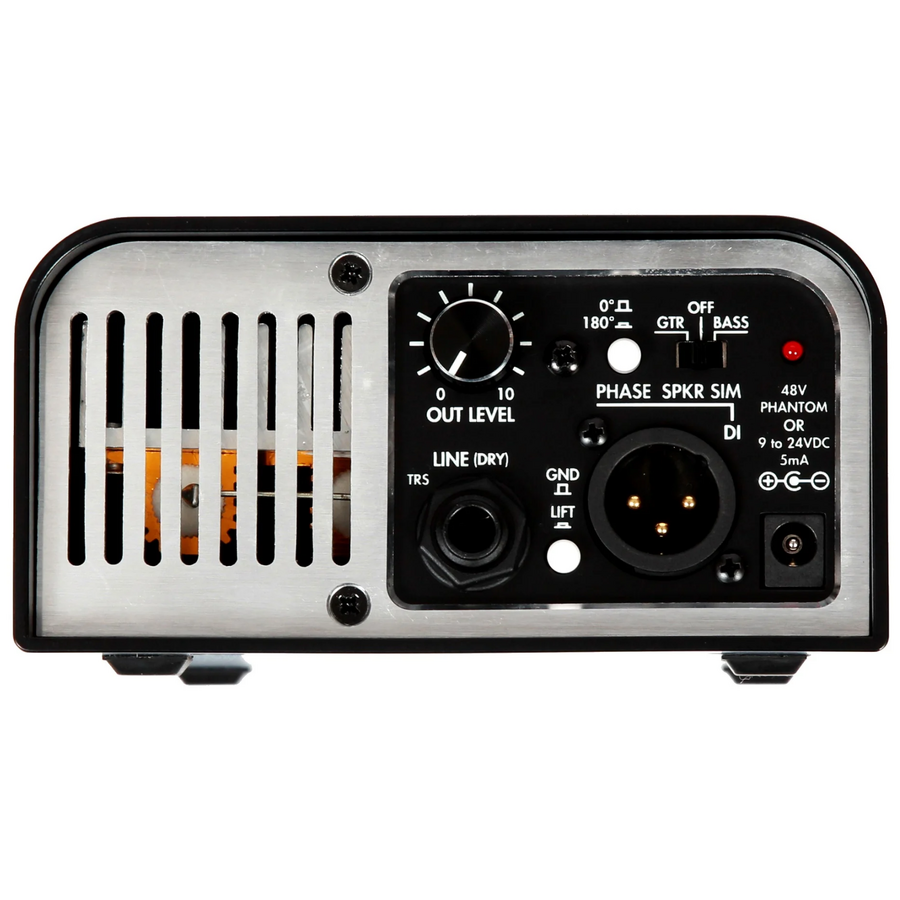

DI Output :
XLR balanced
Impedance: 600 Ohms
*With or without speaker simulation

Analog speaker sim :
Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone
Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone
Reactive Load Box

Impedance :
4, 8 or 16 Ohms

Max admissible power :
100W RMS

Safety system :
Temperature-controlled fan
Active thermal safety
Power

Input voltage :
Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center.

Current draw :5mA

Power input connector:
DC connector, 2.1mm x 5.5mm, center negative

Power is required only for the XLR DI output and analog speaker sim
Dimensions & weight

Width x Depth x Height*:
12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″
*Including connectors and knobs

Weight: 1000 g / 2.2 lbs

Specifications

Reactive loadbox

Input impedance: 16 Ohms
Admissible power: 100W RMS
Cooled by fan, thermal security: the amp and musician work in security.

Input / Output

Speaker Input: 1/4″ Jack unbalanced (TS, Tip/Sleeve)
Speaker Att: 1/4″ Jack unbalanced (TS) – Attenuation: -20dB.
Speaker Thru: 1/4″ Jack unbalanced (TS) – Directly connected to Speaker Input. Disconnects the loadbox when used.
Line Output: 1/4″ Jack balanced (TRS) – Impedance: approx 1 kOhms – Without speaker simulation
DI Output: XLR balanced – Impedance: 600 Ohms – With or without speaker simulation

Speaker sim

Guitar or Bass, analog, based on acclaimed Torpedo virtual cabinets

Power

Power is required only for the XLR DI output and speaker simulation.
Phantom power or DC jack, 2.1×5.5mm, negative center.
Current : 5mA

Dimensions & weight

175 x 126 x 62 mm
1 kg

SKU: 133002
Barcode: 930006024860
Brand: Two notes
