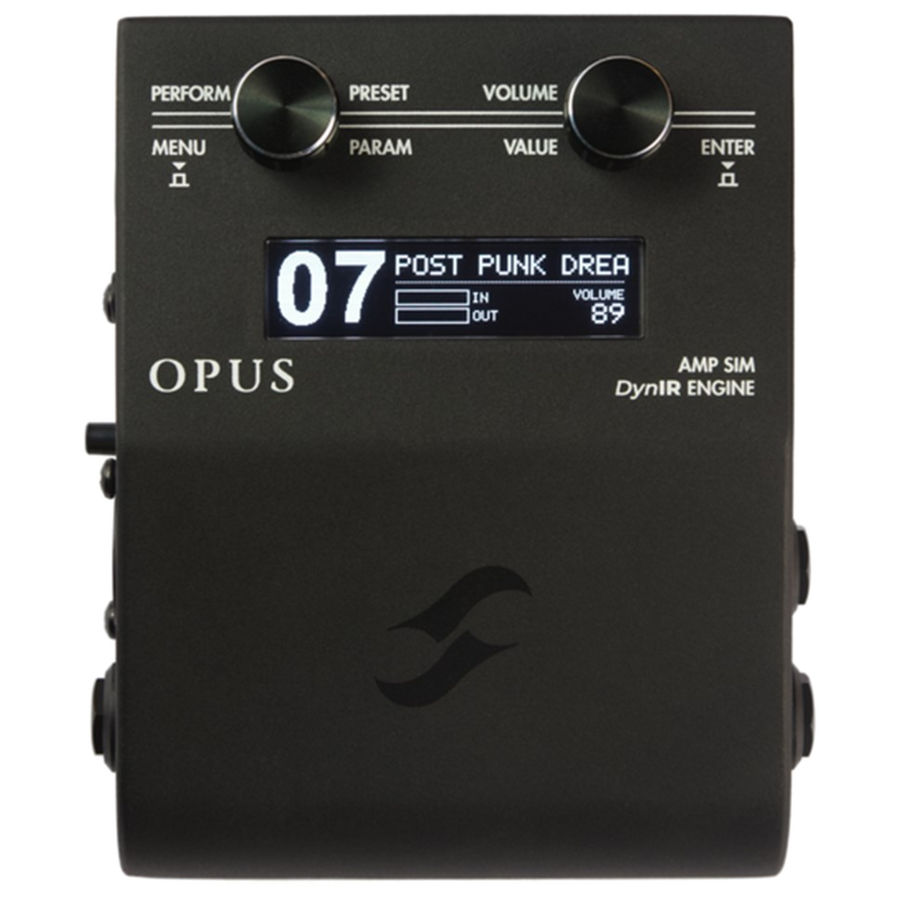

Introducing OPUS, an end-to-end tone shaping Amp Simulator and DynIR™ Engine ushering-in the next milestone-evolution of the Two notes ecosystem. Building upon the C.A.B. lineage – and our critically- acclaimed digital cabinet simulation legacy – OPUS adds Pre- & Power-amp Tube-Stage Modeling™ (TSM™), MIDI integration and a future-proofed USB-C specification, empowering players of all- walks with apex-level tone in a go-anywhere footprint.

OPUS Features

•     The ultimate pedal platform Amp Sim and DynIR Engine powered by Tube-Stage Modeling™ (TSM™) technology
•     10 pristine TSM Preamp emulations
•     Exquisite TSM Poweramp simulation with 4 tube amp models (6L6, EL34, EL84 and KT88), Pentode / Triode, Push-Pull (PP) ‘Class AB’, or Single Ended (SE) ‘Class A’ power amps
•     On-board DynIR™ Engine for class-leading cabinet simulation with dual-miking facilities, 8 microphones per cabinet and 12 room emulations
•     Pro-grade suite of essential DSP-powered processors and effects including an EQ, Enhancer, Noise Gate and Reverb
•     Pre-loaded with the OPUS-Series DynIR Cabinet Collection featuring 32 Cabinets including captures from Steve Stevens, Dave Friedman, Pete Thorn, George Lynch and Phil X
•     99 preset locations and an exclusive collection of 40+ artist-series presets from the likes of Pete Thorn, Michael Nielsen, Jack Gardiner, Tom Quayle, Adam Steel, John Browne, Jay Leonard J and more
•     Wireless Bluetooth® and USB integration with Torpedo Remote (iOS, Android, MacOS, Windows) for expert-level tone shaping, preset management and real-time auditioning of 500+ DynIR Cabinets
•     MIDI input for seamless assimilation into existing set-ups; MIDI breakout cable included
•     Dual Static IR Loader and Acoustic DI with 40+ premier Acoustic Impulse Responses included
•     USB-C connectivity for future-proofed rapid data transfer
•     Compact ultra-portable footprint and rugged, road-ready metal chassis



Specifications
OPUS
Input / Output

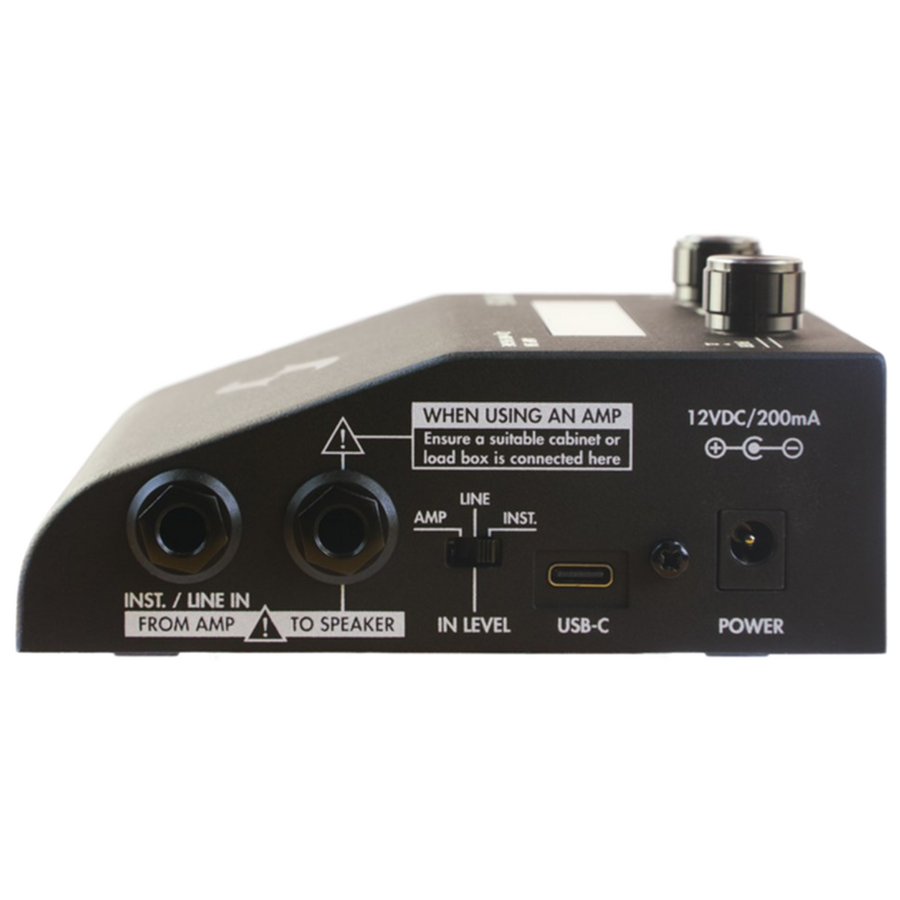

• Amp/Inst/Line Input:

1/4″ jack unbalanced (TRS)

• Input Impedance:

AMP :160kΩ unbalanced / 300kΩ balanced
LINE : 37kΩ unbalanced / 55kΩ balanced
INST. : 1MΩ unbalanced

• Max Level (No Input Pad):

AMP: 26.1dBu
LINE: 11.3dBu
INST.: 2.8dBu

• Max Level (With Input Pad):

AMP: 36.2dBu
LINE: 20.8dBu
INST.: 12.3dBu

• Max Admissible Power For Amplifier Connection:

“IN LEVEL” Switch Set To “AMP”

“TO SPEAKER” output connected to a speaker rated at 16Ω
No input pad: 15.2W
With input pad: 100W

“TO SPEAKER” output connected to a speaker rated at 8Ω
No input pad: 30.3W
With input pad: 100W

“TO SPEAKER” output connected to a speaker rated at 4Ω
No input pad: 60.5W
With input pad: 100W

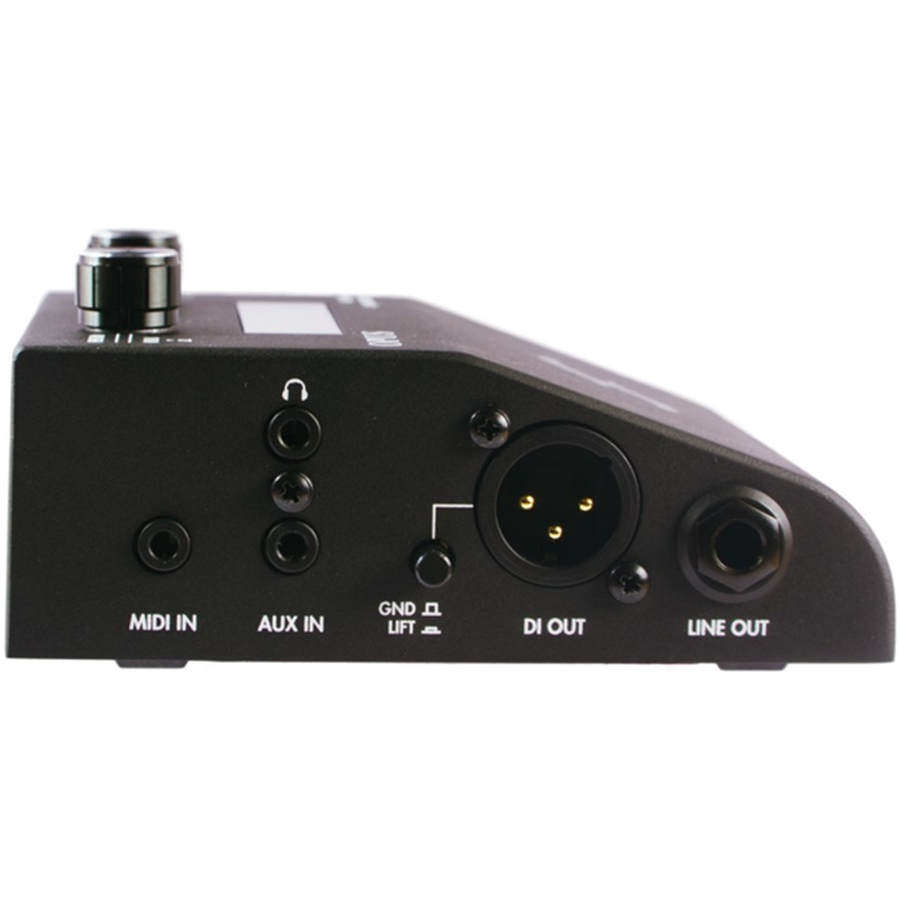

• Aux In:

1/8″ (3.5mm) TRS jack
Input Impedance: 29kΩ

• TO SPEAKER Output*:

1/4″ Jack balanced (TS)
*Unprocessed, unbuffered

• DI Output*:

XLR balanced
Max level: 10dBu
Output Impedance: 600Ω
*Protected against +48V phantom power

• Line Output*:

1/4″ (6.35mm) TRS jack
Max level: 10dBu
Output Impedance: 600Ω
*Not Protected against +48V phantom power

• Headphone Output*:

1/8″ (3.5mm) TRS jack
Max output power: 300mW under 100Ω
Output impedance: 33Ω

• USB Connector:

USB-C 2.0
Memory

• DynIR Capacity:

64 DynIR

• Memory Card:

256Mb Micro-SD included Up to 32Gb cards supported
Digital Audio

• AD/DA Converters:

Studio-grade 24-bit / 96 kHz

• Bandwidth (-1dB):

30 Hz – 19 kHz

• Dynamic Range ratio:

101dB

• Internal Processing:

32-bit floating-point

• Latency:

2.2 ms (Line Input to Line Output)
Power

• Power input connector:

Connector: 2.1mm x 5.5mm
Polarity: Center negative
Voltage: 12V DC
Current: 200mA
Power consumption: approx. 2W

• Supplied adapter:

Connector: 2.1mm x 5.5mm
Polarity: Center negative
Input Voltage: 100-240V AC , 50-60Hz
Output Voltage: 12Vdc
Max. Current: 2000 mA
Dimensions & weight

• Width x Depth x Height*:

12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″
*Including connectors and knobs

• Weight:

450 g / 0.99 lbs
