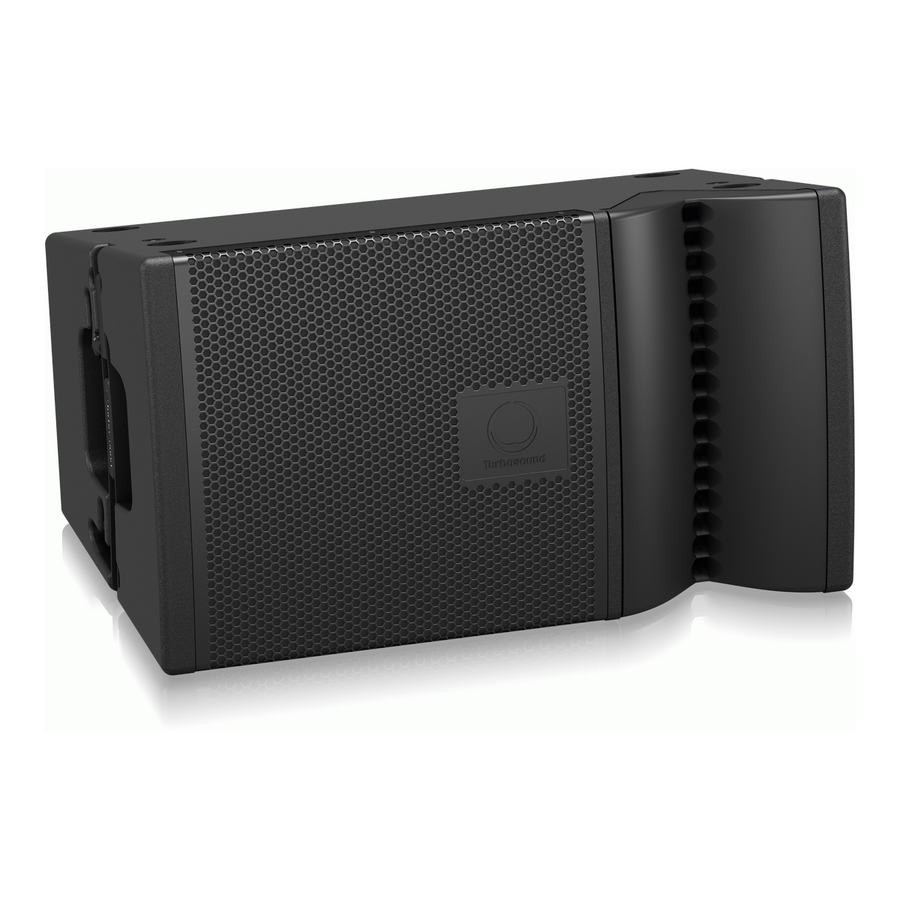

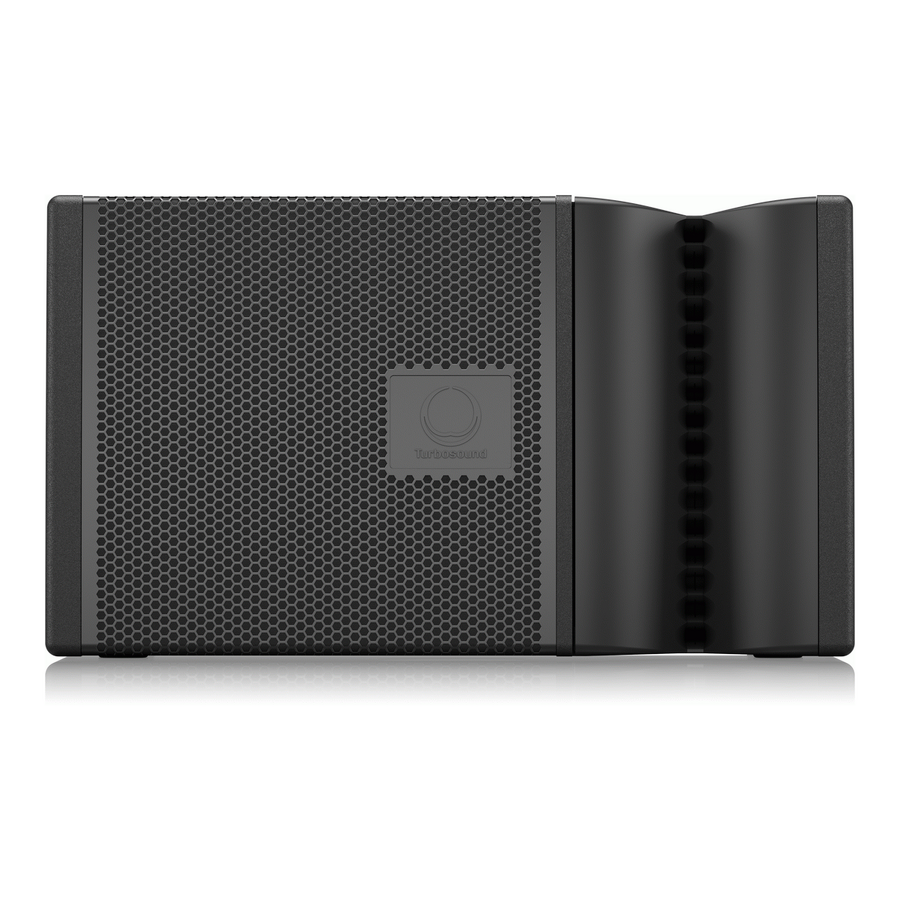

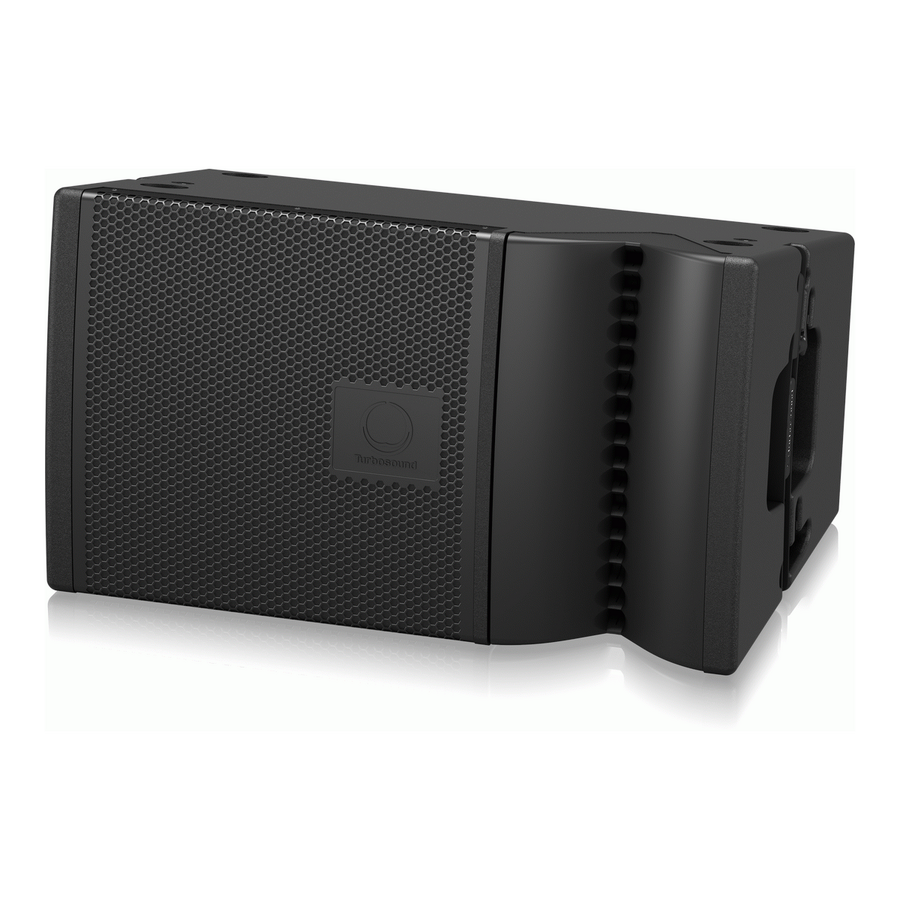

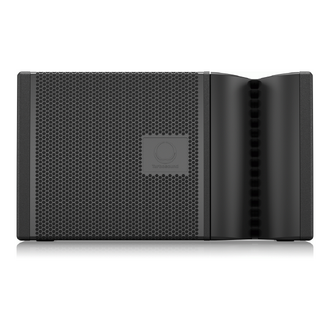

BERLIN TBV123-AN

The 2-way full range TBV123-AN is an arrayable 2,500 Watt 12" powered loudspeaker system that is ideally suited for touring, portable, and installed sound reinforcement applications. Designed to work individually without a controller, the TBV123-AN provides optimal performance for FOH, offstage fill, stereo in-fill or distributed fill applications in a wide range of venues – including nightclubs, concert halls, houses of worship, and more.

Custom-Engineered Drivers

TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TBV123-AN loudspeaker features a carbon fibre loaded 12" neodymium low frequency driver, and dual aluminium dome 1" neodymium motor compression drivers mounted on a 100° horizontal by 15° vertical dispersion constant curvature Dendritic waveguide, which maximises the direct sound field while reducing reverberant energy.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight KLARK TEKNIK Class-D power amplifier, the TBV123-AN provides an impressive 2,500 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

Onboard DSP

A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.

ULTRANET Connectivity

ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

Intuitive User Interface

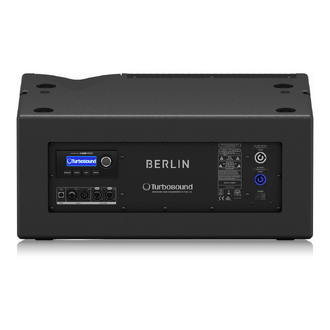

On the rear panel of the amplifier module, the user interface's LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TBV123-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.

Plywood Construction

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (3/4") plywood with a rugged powder coated perforated steel mesh grille backed with reticulated foam, a convenient dual angle 35 mm pole/speaker stand mount for accurate audience coverage, and a durable handle for easy transport. The TBV123-AN includes integral suspension hardware for efficient array configuration and aiming, plus multiple internal M10 mount points that allow eyebolt suspension in any orientation.

Mains input and output link power connectors are Neutrik powerCON.

Touring-Grade Performance

Designed to provide exceptional performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,500-Watt TBV123-AN puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.
