SKU: 509626
UPC: 615104366091
Linked to MusiPos
RRP: $2049
Stock:
2 — Primary Warehouse
Description
Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.
-
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
-
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
-
Half-rack stereo transmitter in a full-metal housing with OLED display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Compatible with Sennheiser WSM control software for flexible frequency allocation
-
Up to 16 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 50 mW) depending on country regulations

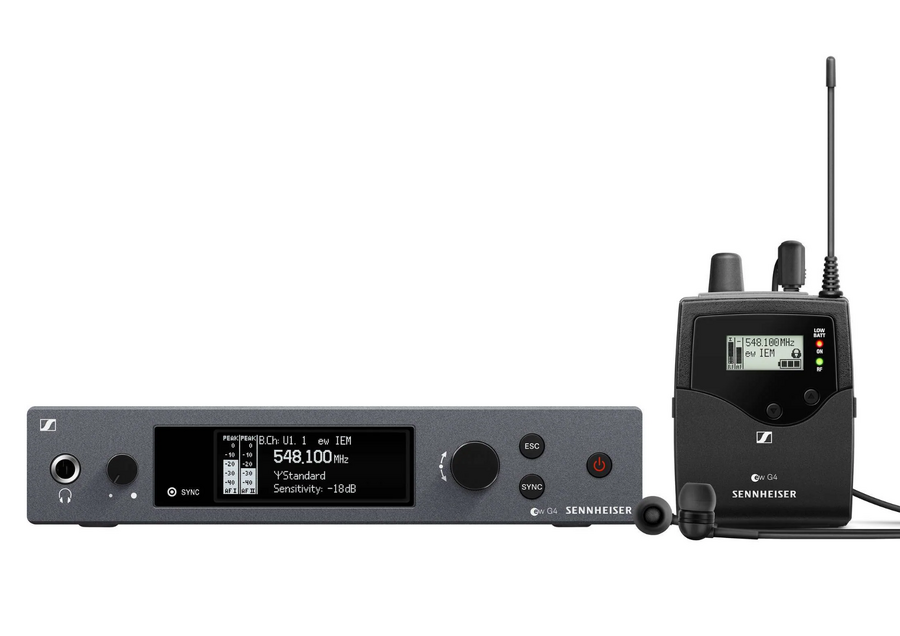

Wireless stereo monitoring set. Includes (1) SR IEM G4 stereo transmitter, (1) EK IEM G4 stereo bodypack receiver, (1) pair of IE4 earbuds and (1) GA3 rackmount kit, frequency range: AS (520 - 558 MHz)
Specifications
-
- Frequency range
-
A: 516 - 558 MHzA1: 470 - 516 MHzAS: 520 - 558 MHzB: 626 - 668 MHzC: 734 - 776 MHzE: 823 - 865 MHzG: 566 - 608 MHzGB: 606 - 648 MHzD: 780 - 822 MHz
-
- Dimensions
-
Approx. 202 x 212 x 43 mm
-
- Compander
-
Sennheiser HDX
-
- THD, total harmonic distortion
-
<0.9 %
-
- Weight
-
Approx. 980 g
-
- Audio input
-
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
-
- Audio output
-
¼" (6.3 mm) stereo jack socket, balanced
-
- Signal-to-noise ratio
-
>90 dB
-
- RF output power
-
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
-
- Switching bandwidth
-
up to 42 MHz
-
- Peak deviation
-
±48 kHz
-
- Nominal deviation
-
±24 kHz
-
- Modulation
-
Wideband FM stereo (MPX pilot tone)
-
- Power supply
-
12 V DC
-
- Current consumption
-
max. 350 mA
-
- Max. Input voltage
-
+22 dBu
-
- Transmission frequency
-
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- AF frequency response
-
25 Hz to 15 kHz
-
- Temperature Range
-
-10 °C to +55 °C
-
- Frequency stability
-
±10 ppm
-
- Antenna Output
-
BNC socket, 50 Ω
-
- Frequency range
-
748.3 MHz - 757.7 MHz
-
- Frequency range
-
Sr iem g4:D: 780 - 822 MHz
- SKU
- 509626
- Model #
- 509626
- Barcode
- 930074002977
- Brand
- Sennheiser
