Sennheiser ew D1-845-S-NH-NT D1 Handheld Wireless Mic System 506152 $ 749 $849.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

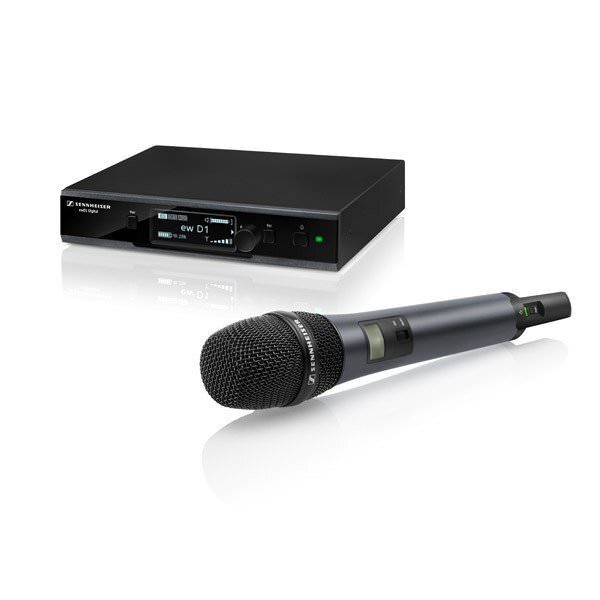

Sennheiser ew D1-845-S-NH-NT D1 Handheld Wireless Mic System

evolution wireless D1 Vocal-Set with the legendary evolution e845 super-cardioid capsule and mute-switch for live stage use.

evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

Key Features

  • Choice of various microphone heads from the renowned evolution series
  • Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS app for remote control and monitoring of the system
  • Sturdy metal housin

What's in the Box

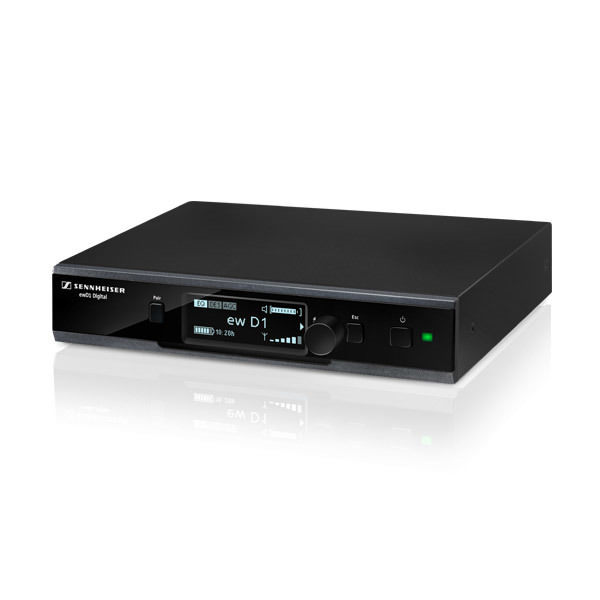

  • EM-D1 rackmount receiver
  • SKM-D1 handheld transmitter
  • MZQ microphone clamp
  • NT-12 power supply

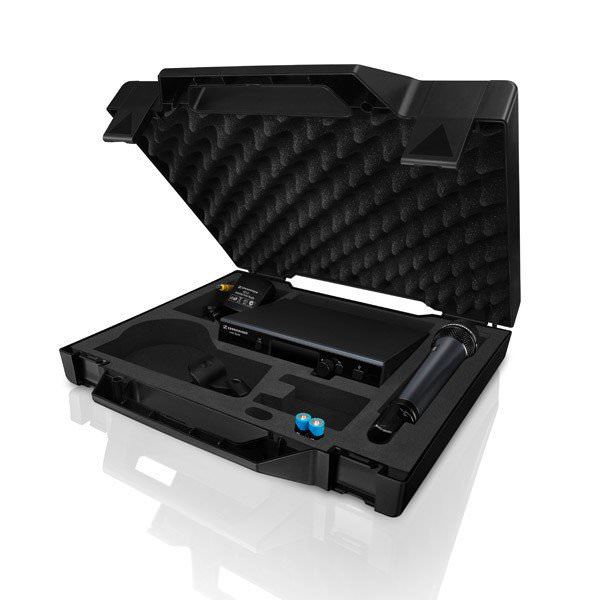

  • Transport Case
  • User Manual


Specifications

SKM D1

  • Frequency response 50 to 20,000 Hz
  • Weight approx. 280 g incl. microphone head
  • RF output power adaptive, up to 100 mW (country-specific)
  • Battery Specification 2 x AA size battery (1.5 V), Operating time: typ. 6 h
  • Display LCD
  • Input sensitivity automatic sensitivity adjustment
  • Accupack BA 10 (Li-Ion, 3.7 V)

System

  • THD, total harmonic distortion typ. < 0,1 %
  • Storage temperature – 20 Β°C to +70 Β°C (The temperature range is influenced by the battery characteristics)
  • Operating temperature – 10 Β°C to +55 Β°C
  • Signal-to-noise ratio β‰₯ 105 dB (A)
  • RF frequency range 2,400 to 2,483.5 MHz
  • Modulation GFSK with back channel
  • Dynamic range > 135 dB (A)
  • Audio sampling 24 bit/48 kHz
  • Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity
  • Latency 3.9 ms
  • Audio codec APT-X Live
  • AF frequency response 20 to 20.000 Hz

EM D1

  • Weight approx. 824 g
  • Audio output Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
  • RF output power back channel 10 mW/100 mW (country-specific)
  • Power supply 12 V DC hollow jack
  • Antenna connector 2 x Rev-SMA
  • Current consumption 350 mA
  • Low-cut filter –3 dB at 120 Hz
  • RF sensitivity <-90 dBm
  • Connection XLR/ΒΌ" (6.3 mm) jack
  • Equalizer 7-band graphic equalizer
  • Automatic gain control (AGC) compression/expansion with automatic make-up gain function
  • Display OLED
  • Network socket RJ45
  • Network protocol Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
