Wireless omni-directional lavalier for performers, speakers and reporters. Providing the highest flexibility for outdoor shoots and field recordings.

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

•     Rugged all-in-one wireless system with high flexibility for broadcast quality sound
•     Excellent sound and construction quality
•     Easy to use and fast setup time
•     Powerful and reliable wireless transmission
•     Range: up to 100 meters / 330 feet
•     Up to 8 hours of operation time



Reliability and performance

Eventually, you’ll most likely get to a point in your filmmaking career when you realize that audio quality is just as important as video quality when it comes to creating compelling content. And at a certain point, reliability and consistency become the top priorities when recording wireless audio while on set or in the field. Enter the evolution wireless G4 100 Series—the next level in your journey as a professional filmmaker.



Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.



Differences between the sets

The 112P, 122P, 135P and 100 ENG sets are all great options and vary depending on your needs. The 112P features our omni-directional ME 2-II lavalier microphone while the 122P features our cardioid ME 4 lavalier microphone. The 135P swaps the bodypack transmitter and lavalier mic for the SKM 100 handheld transmitter and MMD 835 cardioid capsule. For those that need a combination of both for a range of Electronic News Gathering applications, the EW 100 ENG G4 set includes the ME 2-II lavalier and adds the SKP 100 plug-on transmitter for your existing dynamic XLR microphone or a battery powered shotgun mic like the MKE 600.

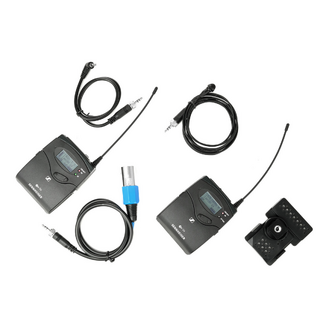

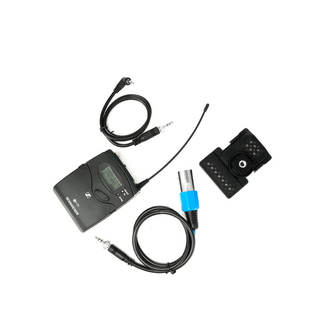

What's in the Box

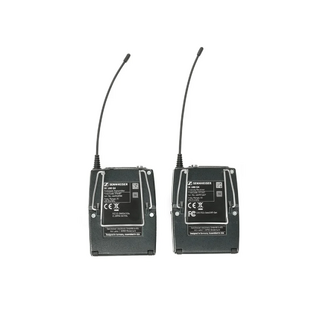

•     EK 100 G4 camera receiver

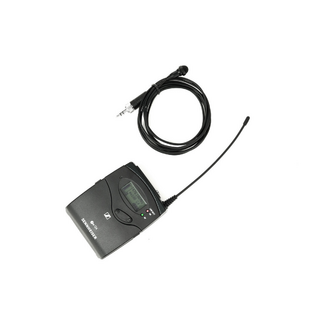

•     SK 100 G4 bodypack transmitter
•     ME 2 clip-on microphone (ew 112 P variants only)

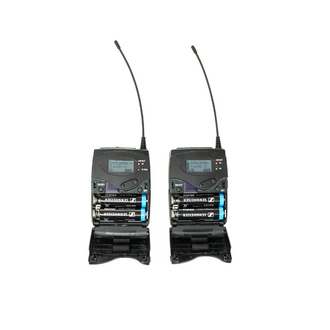

•     4 AA batteries
•     CA 2 camera adapter

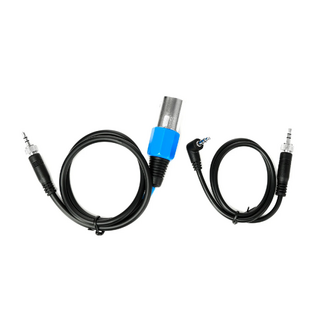

•     CL 1 3.5 mm jack cable
•     CL 100 XLR to 3.5 mm jack adapter cable
•     quick guide
•     safety guide
•     manufacturer declaration sheet





Specifications

EK 100 G4

    Frequency range
        A: 516 - 558 MHz
        A1: 470 - 516 MHz
        AS: 520 - 558 MHz
        B: 626 - 668 MHz
        C: 734 - 776 MHz
        C-TH: 748.3 MHz - 757.7 MHz
        D: 780 - 822 MHz
        E: 823 - 865 MHz
        G: 566 - 608 MHz
        GB: 606 - 648 MHz
        JB: 806 - 810 MHz
        K+: 925 - 937,5 MHz

    Dimensions
        Approx. 82 x 64 x 24 mm

    Compander
        Sennheiser HDX

    THD, total harmonic distortion
        ≤ 0.9 %

    Weight
        (incl. batteries) approx. 160 g

    Audio output
        3.5 mm jack socket: +12 dBu (mono, unbalanced)

    Signal-to-noise ratio
        ≥ 110 dBA

    Switching bandwidth
        up to 42 MHz

    Peak deviation
        ±48 kHz

    Nominal deviation
        ±24 kHz

    Operating time
        Typically 8 h

    Modulation
        Wideband FM

    Power supply
        2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
        at nominal voltage: typ. 180 mA
        with receiver switched off: ≤ 25 µA

    Adjacent channel rejection
        ≥ 65 dB

    Intermodulation attenuation
        ≥ 65 dB

    Powering
        3 V battery / 2.4 V rechargeable battery

    Receiving frequency
        Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

    RF sensitivity
        < 1.6 μV for 52 dBA eff S/N

    Squelch
        low: 5 dBµV middle: 15 dBµV high: 25 dBμV

    Temperature Range
        -10 °C to +55 °C

    Receiver Principle
        Adaptive diversity

    Blocking
        ≥ 70 dB

    Frequency range
        748.3 MHz - 757.7 MHz



SK 100 G4

    Dimensions
        Approx. 82 x 64 x 24 mm

    Compander
        Sennheiser HDX

    THD, total harmonic distortion
        ≤ 0.9 %

    Weight
        (incl. batteries) approx. 160 g

    Signal-to-noise ratio
        ≥ 110 dBA

    RF output power
        Max. 30 mW

    Switching bandwidth
        up to 42 MHz

    Peak deviation
        ±48 kHz

    Nominal deviation
        ±24 kHz

    Operating time
        Typically 8 h

    Modulation
        Wideband FM

    Power supply
        2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
        at nominal voltage: typ. 180 mA
        with transmitter switched off: ≤ 25 µA

    Input impedance
        40 kΩ, unbalanced / 1 MΩ

    Max. Input voltage
        3 Veff

    Powering
        3 V battery / 2.4 V rechargeable battery

    Transmission frequency
        Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

    AF frequency response
        Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz

    Temperature Range
        -10 °C to +55 °C

    Frequency stability
        ≤ ±15 ppm

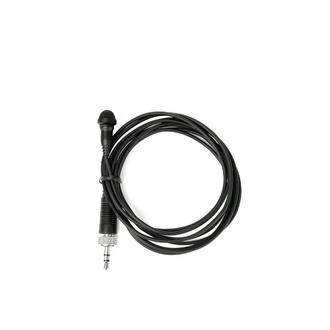

ME 2

    Connector
        3.5 mm jack

    Frequency response
        50 to 18,000 Hz (ME 2-II)

    Max. sound pressure level
        130 dB

    Cable length
        approx. 1.60 m

    Transducer principle
        pre-polarized condensor microphone

    Pick-up pattern
        omni-directional

    Sensitivity in free field, no load (1kHz)
        20 mV/Pa

    Equivalent noise level
        36 dB
