Description

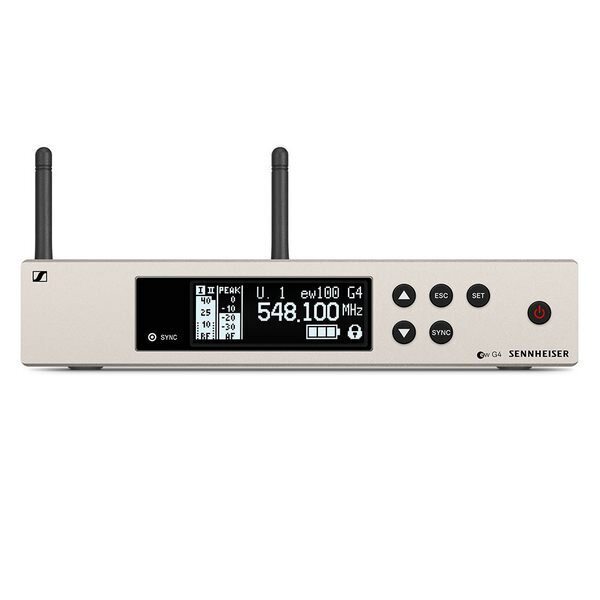

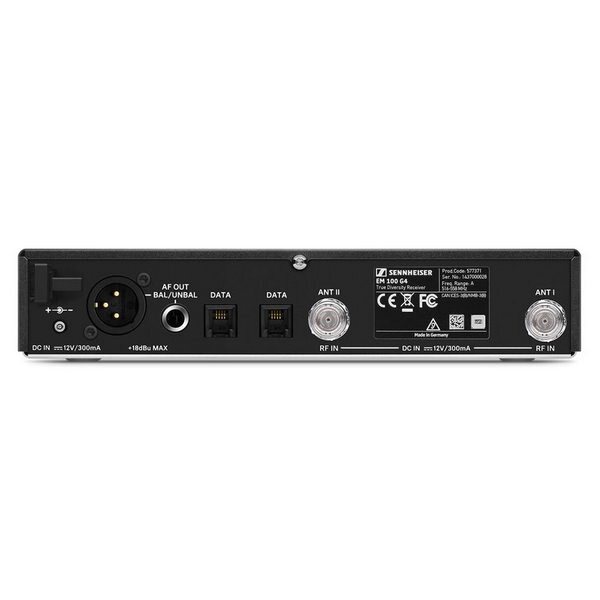

Sennheiser EM 100 G4-1G8 Wireless True Diversity Half-Rack Receiver

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
  • Made in Germany

What's in the Box

  • EM 100 G4 true diversity receiver
  • 2 rod antennas
  • power supply
  • RJ 10 cable
  • rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • frequency supplement sheet


Specifications

  • Frequency range 1G8: 1785 - 1800 MHz
  • Dimensions Approx. 190 x 212 x 43 mm
  • Compander Sennheiser HDX
  • THD, total harmonic distortion ≤ 0.9 %
  • Weight Approx. 980 g
  • Audio output
    • 6.3 mm jack socket (unbalanced): +12 dBu
    • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio ≥ 110 dBA
  • Switching bandwidth up to 42 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Modulation Wideband FM
  • Power supply 12 V DC
  • Antenna connector 2 BNC sockets
  • Current consumption 300 mA
  • Adjacent channel rejection Typically ≥ 65 dB
  • Intermodulation attenuation Typically ≥ 65 dB
  • Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity < 2.5 μV for 52 dBA eff S/N
  • Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
  • Equalizer
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range -10 °C to +55 °C
  • Receiver Principle True diversity
  • Blocking ≥ 70 dB
