Description

Best materials, extremely ruggged metal housings and supersolid moving parts with gold-plated conducting paths ensure perfect sound, superb functionality and a long service life. Manufactured for extreme precision: Snaps cleanly into all switch positions. The switch knobs are available in black and white.

Specifications

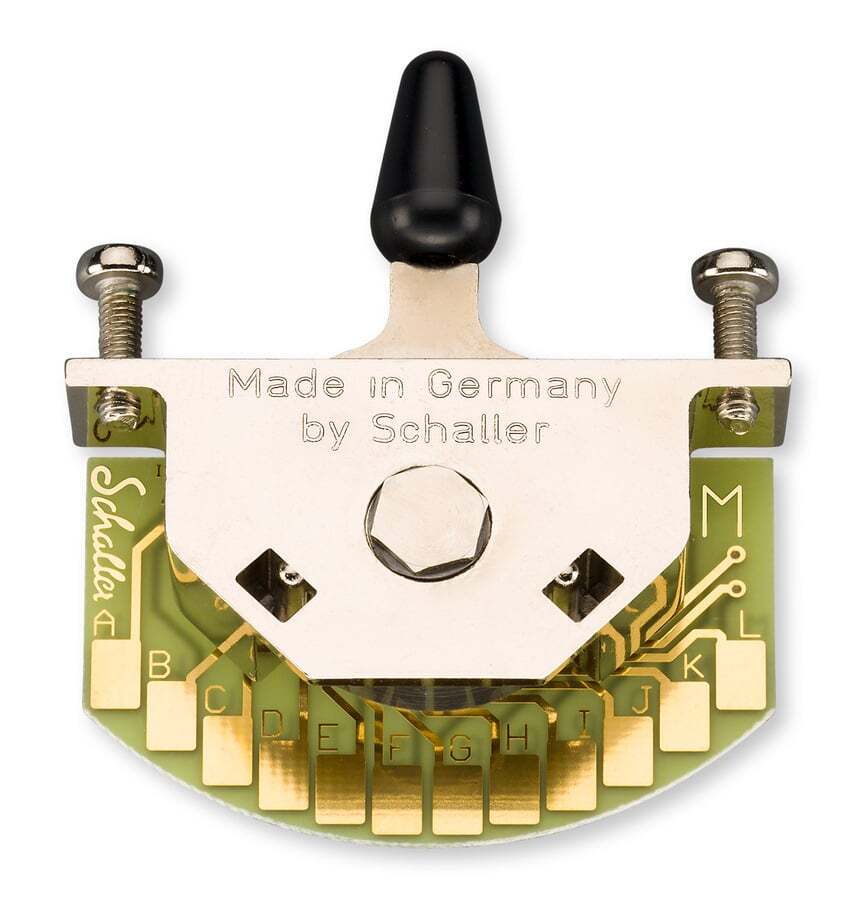

Megaswitch P

You can use Megaswitch P for the following switching positions:

HH9

With this switching type, a combination of coils is obtainable which some PRS guitars produce using a rotary switch:

bridge Humbucker
outer coils parallel
inner coils in series
inner coils parallel
neck Humbucker

The Megaswitch P was specially developed for this purpose. Whereby all positions are meant to be buzz-free, the magnetic polarity of the coils must be NS-NS or SN-SN. This is the case on PRS guitars; here the neck and bridge pickups are poled differently from a magnetic perspective. In the event that in standard types the screw side should be the outer one and that buzz-free sound is required in all positions, the magnet in one of the two pickups must be turned.

HH9A

HH9B-19

HH9C

Connections:

Positions
1 bridge humbucker
2 outer coils parallel
3 inner coils in series
4 inner coils parallel
5 neck humbucker

Connections
1 neck hot wire inner coil and cold wire outer coil
2 output
3 bridge hot wire outer coil and cold wire inner coil
4 bridge cold wire outer coil
5 neck cold wire inner coil, ground
6 neck hot wire outer coil
7 bridge hot wire inner coil
ground: 5, neck cold wire inner coil

SKU: 48558
Barcode: 930035010971
Brand: Schaller
