Description

With four times the wave memory of its predecessor, the TD-4 is loaded with great drum and percussion instruments and kits. Kits can be customized with virtual tuning and muffling for the kick, snare and toms. Natural ambience effects can be adjusted as well.




  • Wave-expanded sound module with 125 instruments and 25 kits

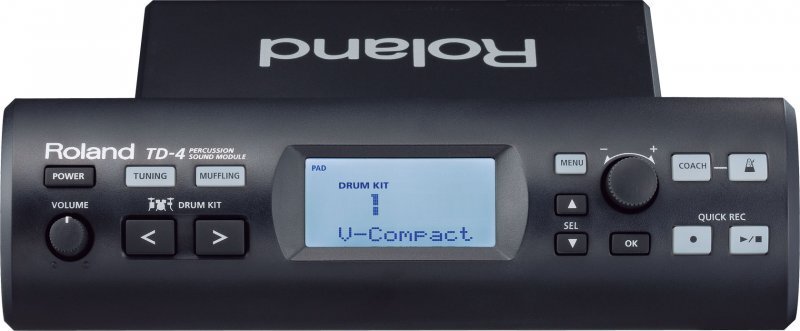

  • Tuning and Muffling for the kick, snare and toms can be adjusted via the buttons and dial on the front panel

  • Coach Mode with new exercises, such as Warm Ups and Tempo Check for building your accuracy and endurance

  • Quick Rec function for recording your performance with just one button

  • Mix In connector for playing along with external audio sources


  •



Specifications


Instruments

Drum Instruments: 125

Drum Kits

25

Instrument Parameters

KICK, SNARE, TOM, PERC: Tuning, Muffling

Mixer Parameters

Pad Volume, Pan, Kit Volume, Cross Stick Volume

Ambience Types

9

Rhythm Coach Functions

Warm Ups, Time Check, Tempo Check, Quiet Count, Auto Up/Down

Quick Rec

Resolution: 96 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: approx. 9,000 Notes

Display

Custom (backlit LCD)

Connectors

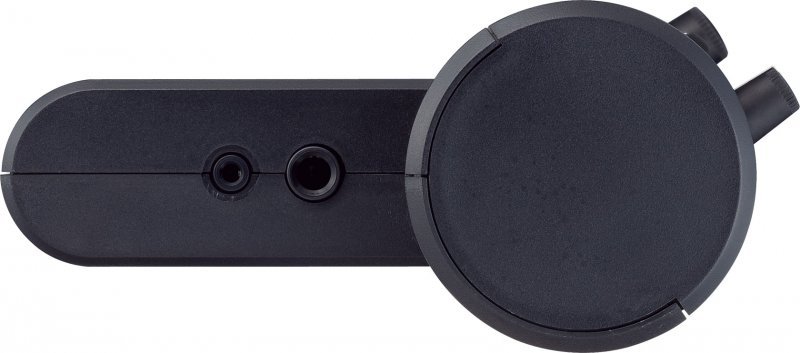

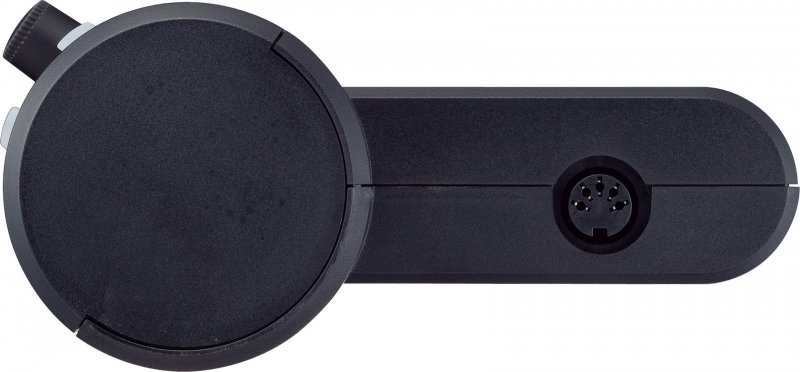

Trigger Input connector (DB-25 type), (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Crash2, Ride, Hi-Hat Control), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (stereo miniature phone type), MIDI OUT Connector

Output Impedance

1.0 k ohms

Power Supply

AC Adaptor (DC 9 V)

Current Draw

500 mA

Accessories

Owner's Manual, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate

Options

Pads: PD-8, PDX-8, PD-85, PD-105, PD-125, Cymbals: CY-5, CY-8, CY-12R/C, CY-14C, CY-15R, Kick Triggers : KD-8, KD-85, KD-120, Hi-Hats: VH-11, Hi-Hat Control Pedal: FD-8, Stand: MDS-4, Cymbal Mount: MDY-10U, Pad Mount: MDH-10U, Acoustic Drum Trigger: RT-10K, RT-10S, RT-10T, Personal Drum Monitor: PM-10, PM-30
V-Drums Accessory Package: DAP-3, V-Drums Mat: TDM-20/TDM-10

Size and Weight

Width

224 mm

8-7/8 inches

Depth

151 mm

6 inches

Height

65 mm

2-9/16 inches

Weight

0.5 kg

1 lbs. 1 oz.

*The specifications are subject to change without notice.



SKU
TD4
Barcode
930039005318
Brand
Roland
