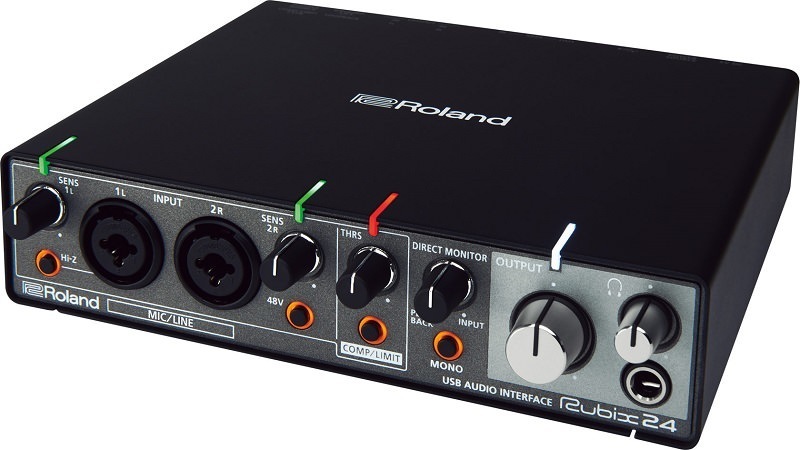

2-in/4-out, high-resolution interface for Mac, PC and iPad
Rubix 24 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix 24 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.
Nothing is more important than sound quality when it comes to audio interfaces. And you shouldn’t have to sacrifice sound quality to have an affordable interface that you can take with you. Rubix 24 sounds clean and detailed with transparent, low noise mic preamps and supports audio resolutions up 24-bit/192kHz. It’s made of durable metal, and a lot went into its compact, low-noise design. With all the places Rubix 24 can go, you’ll appreciate its extensive shielding and ground lifts, making sure you get good clean audio just about anywhere.
Rubix 24’s dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you’re recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables. Four individual outputs mean you can create more sophisticated routing and monitoring setups. This is useful for sending a click track to a performer, setting up a stage monitor, or routing audio to external gear.
Highly dynamic sources like vocalists and percussion instruments often need taming, especially when recording on location. Dynamics processors help ensure a good hot signal without clipping and causing unwanted distortion. Rubix 24's built-on compressor/limiter provides peace of mind in the heat of a recording session.
Studios and stages can be dark places, and getting proper levels is critical. You want to focus on the performance, not on small, hard-to-see clip and level indicators from across the room. Rubix 24 has highly visible indicators that are an integral part of its design. They clearly show if a channel has incoming signal, or if you’re going to overload, even from a distance.
Rubix 24 is ultra-portable and ultra-flexible. It has low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes Ableton Live Lite, powerful studio production and live performance software that works perfectly with Rubix 24, right out of the box.
SYSTEM
Number of Audio Record/Playback Channels Record: 2 channels Playback: 4 channels
Signal Processing PC interface: 24 bits AD/DA conversion: 24 bits
Sampling Frequency AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Interface Hi-Speed USB MIDI IN, OUT

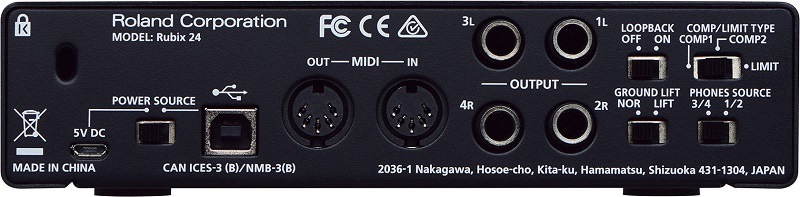

Connectors INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1) INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced) PHONES jack: Stereo 1/4-inch phone type OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced) MIDI (IN, OUT) connectors USB port: USB Type B DC 5V port: USB Type micro B *1 Current value per channel. *2 INPUT 1L supports high impedance

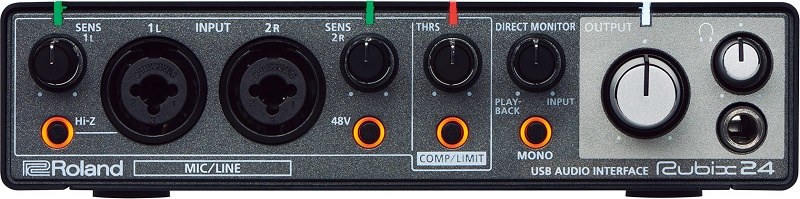

Controllers SENS 1L, 2R knobs Hi-Z switch 48V switch THRS knob COMP/LIMIT switch DIRECT MONITOR knob MONO switch OUTPUT knob PHONES knob POWER SOURCE switch LOOPBACK switch COMP/LIMIT TYPE switch GROUND LIFT switch PHONES SOURCE switch
Indicator Level indicators (1L, 2R) Level indicator (COMP/LIMIT) POWER indicator Hi-Z indicator 48V indicator COMP/LIMIT indicator
CHARACTERISTICS
Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
Maximum Input Level INPUT (1L, 2R) connectors (XLR type): +2 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
Nominal Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced)
Maximum Output Level OUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced)
PHONES Maximum Output Power 20 mW + 20 mW (L + R, 47 ohms load)
Headroom 14 dB
Input Impedance INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced) INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced) INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater *3 When the Hi-Z is turned on
Output Impedance OUTPUT (1L, 2R, 3L, 4R) jacks: 2 k ohms (balanced) PHONES jack: 47 ohms
Residual Noise Level INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
Dynamic Range AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.) DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ.
OTHER
Power Supply Supplied from the computer via USB, DC 5V
Current Draw 500 mA
Operating System Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10 Apple Mac OS X 10.10 or later Apple iOS 9 or later
Dimensions 183 (W) x 165 (D) x 46 (H) mm 7-3/16 (W) x 6-1/2 (D) x 1-13/16 (H) inches
Weight (main unit only) 1.2 kg 2 lbs 11 oz
Accessories Setup Guide Leaflet "USING THE UNIT SAFELY" USB cable Ableton Live Lite Serial Number Card * 0 dBu = 0.775 Vrms
