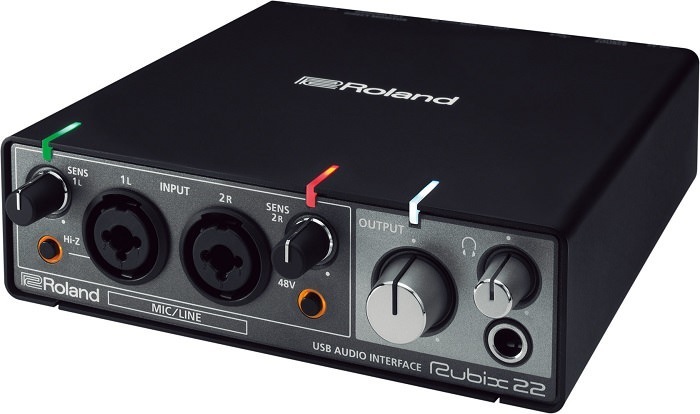

Roland Rubix22 USB Audio Interface

Edit Product

SKU: RUBIX22

UPC: 4957054508920

Linked to MusiPos

RRP: $315

Stock:
0 — Primary Warehouse
1 — Secondary Warehouse

tik1 | tik2 | tik3

Description

2-in/2-out, high-resolution interface for Mac, PC and iPad

Rubix 22 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix 22 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

Features

2-in/2-out USB audio interface
2 low-noise mic preamps with XLR combo jacks
Hi-Z input for guitar and other high impedance sources
MIDI In/Out ports
Extensively shielded, low-noise design
Sturdy and compact metal construction
Big, easy-to-read indicators show vital information
Low latency, class compliant drivers
Ground lifts for quiet operation in a variety of venues
Includes Ableton Live Lite

Studio-grade sound you can take anywhere

Nothing is more important than sound quality when it comes to audio interfaces. And you shouldn’t have to sacrifice sound quality to have an affordable interface that you can take with you. Rubix sounds clean and detailed with transparent, low noise mic preamps and supports audio resolutions up 24-bit/192kHz. It’s made of durable metal, and a lot went into its compact, low-noise design. With all the places Rubix 22 can go, you’ll appreciate its extensive shielding and ground lifts, making sure you get good clean audio just about anywhere.

2 high quality mic preamps

Rubix 22’s dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you’re recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables.

Built for Mac, PC and iPad

Rubix 22 is ultra-portable and ultra-flexible. It has low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes Ableton Live Lite, powerful studio production and live performance software that works perfectly with Rubix 22, right out of the box.

Specifications

SYSTEM

Number of Audio Record/Playback Channels
Record: 2 channels
Playback: 2 channels

Signal Processing
PC interface: 24 bits
AD/DA conversion: 24 bits

Sampling Frequency
AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Interface
Hi-Speed USB
MIDI IN, OUT

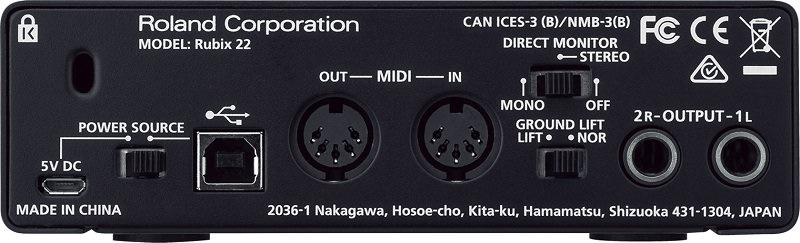

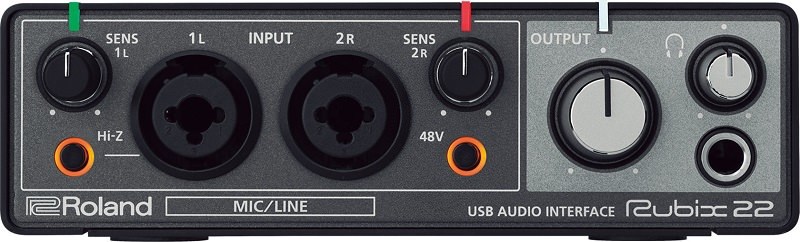

Connectors
INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedance

Controllers
SENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switch

Indicator
Level indicators (1L, 2R)
POWER indicator
Hi-Z indicator
48V indicator

CHARACTERISTICS

Nominal Input Level
INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu

Maximum Input Level
INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu

Nominal Output Level
OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)

Maximum Output Level
OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)

PHONES Maximum Output Power
20 mW + 20 mW (L + R, 47 ohms load)

Headroom
14 dB

Input Impedance
INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on

Output Impedance
OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms

Residual Noise Level
INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)

Dynamic Range
AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.

OTHER

Power Supply
Supplied from the computer via USB, DC 5V

Current Draw
500 mA

Operating System
Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later

Dimensions
145 (W) x 165 (D) x 46 (H) mm
5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches

Weight (main unit only)
1.0 kg
2 lbs 4 oz

Accessories
Setup Guide
Leaflet "USING THE UNIT SAFELY"
USB cable
Ableton Live Lite Serial Number Card
* 0 dBu = 0.775 Vrms
