Roland HS-5 Session Mixer Rehearsal and Recording Mixer for Ensembles HS-5 $ 1049 $1,199.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Convenient and simple to use, the HS-5 allows up to five musicians to rehearse, jam, and record while monitoring with headphones. Players have individual hands-on control of their personal mix, plus access to reverb and COSM® effects for guitar, bass, and vocals. Bands can capture stereo recordings directly to a USB thumb drive, or connect the HS-5 to a computer via a USB cable and record each channel to individual tracks in a DAW. Additionally, each musician’s personalized settings can be saved for instant recall, providing quick setup for future rehearsals and recording sessions.








  • Performer-friendly digital mixer with high-quality sound and USB

  • Up to five musicians can rehearse or jam while monitoring with headphones

  • Independent control of the monitor mix for each performer

  • COSM amp modeling plus vocal effects and built-in reverb

  • Record stereo mixes to a USB thumb drive

  • Connect to a computer via USB for multitrack recording in a DAW







  •
  •
  •
  •
  •
  •









A Personal Monitor Mix for Each Musician









The HS-5 allows every musician in a group to set up their own independent monitor mix using the Mix A thru Mix D switches located in the center of the unit. Once an overall mix has been decided, musicians can use the My Mix knob to adjust the volume of their own mic or instrument, and they can also add ambience independently with their channel’s Reverb knob. Current settings are clearly displayed with LEDs encircling the knobs, making it easy to check the status while playing. For larger groups, another HS-5 can be connected in tandem to accommodate up to eight musicians.









Four Channels with Guitar/Bass Amp Modeling and Vocal Effects









The HS-5 provides access to guitar and bass amp modeling on four independent channels. This means that players can connect their electric guitar or bass directly into the HS-5 and jam with the same sound and feel as playing through an amp. Vocalists can also experience enhanced, studio-quality sound via the built-in compressor for each mic input. With the intuitive panel controls, HS-5 users can quickly adjust EQ and pan settings and dial in just the right amount of amount of guitar distortion or vocal compression.









Capture Stereo Mixes or Full Multitrack Recordings









By connecting a USB thumb drive to the HS-5’s Memory jack, it’s extremely easy to record stereo mixes of group performances for evaluation and sharing. For more advanced production, it’s possible to connect to a computer via USB and record each performer to individual tracks in popular DAW software. This powerful combo creates an incredibly simple and versatile system for creating complete ensemble recordings.









Onboard Metronome for Tight Timing









Timing is essential for rehearsal and recording, and the HS-5 includes a built-in metronome to keep everyone playing together. Just press the dedicated Click/Tap button to start the metronome, and then tap the button at the desired tempo to adjust the speed for the music.









Total Recall for Quick Setup









The HS-5’s snapshot function allows you to save all the unit’s current settings to a USB thumb drive. This lets your entire group resume performances right where you left off—even at a totally new location or a much later date.













Specifications

Processing
Sampling Frequency
44.1 kHz
Signal Processing
AD/DA conversion: 24 bits
Recorder
Tracks
2 tracks (stereo)
Recording Mode
USB flash drive: WAV (44.1 kHz ,16 bits)
Recording Media
USB flash drive (512 MB – 32 GB)
Recording Time (unit: hour)
2 GB: 3
4 GB: 6
8 GB: 12
16 GB: 24
32 GB: 48

Each recording time is approximate. The times may change depending on the card specifications.
In case that there are plural files, the sum of recording time would be shorter than above.
Maximum recording time of one song is 200 minutes.
Recording Songs
Up to 512 songs on a single USB flash drive
Effects
Guitar
Preamp: 10 types
Bass
Preamp: 5 types
Vocal
Compressor, Equalizer, Delay

Reverb: 5 types
Input/Output
Audio Input
Section A–D = MIC jacks: XLR type (balanced), INPUT L/R jacks: 1/4-inch phone type (unbalanced) *1
Section E = INPUT L/R jacks: 1/4-inch phone type (unbalanced), Stereo miniature phone type

*1 INPUT L jack supports high impedance
Audio Output
Section A–D = PHONES jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
MAIN MIX OUT = PHONES jacks: Stereo miniature phone type, OUTPUT L/R jacks: 1/4-inch phone type (unbalanced)
Frequency Response
20 Hz–20 kHz (+0 dB/-2 dB)
Nominal Input Level
Section A–D = MIC jacks: -61–-13 dBu, INPUT L/R jacks: +4 dBu (Hi-Z ON: INPUT L = -5 dBu)
Section E = INPUT L/R jacks: +4 dBu, Stereo miniature phone type: -10 dBu
Nominal Output Level
Section A–D = PHONES jacks: +6 dBu
MAIN MIX OUT = PHONES jacks: +4 dBu, OUTPUT L/R jacks: +4 dBu
Input Impedance
Section A–D = MIC jacks: 2.3 k ohms, INPUT L/R jacks: 12 ohms (Hi-Z ON: INPUT L = 680 k ohms)
Section E = INPUT L/R jacks: 12 k ohms, Stereo miniature phone type: 10 k ohms
Output Impedance
Section A–D = PHONES jacks: 47 ohms

MAIN MIX OUT = PHONES jacks: 47 ohms, OUTPUT L/R jacks: 1 k ohm
Other
Power Supply
AC adaptor
Current Draw
1.2 A
Accessories
Owner’s manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power Cord
Options (sold separately)

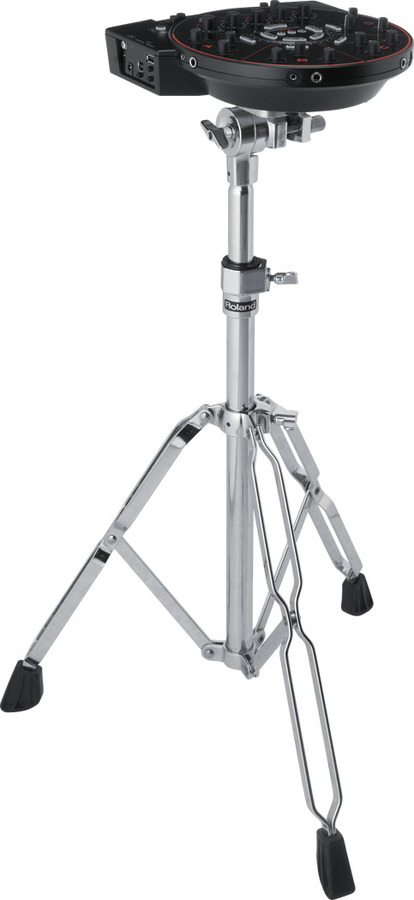

Stand: Roland PDS-10
* 0 dBu = 0.775 Vrms
Size and Weight
Width
257 mm
10-1/8 inches
Depth
248 mm
9-13/16 inches
Height
68 mm
2-11/16 inches
Weight
1.1 kg
2 lbs. 7 oz.

Features

A PERSONAL MONITOR MIX FOR EACH MUSICIAN

The HS-5 allows every musician in a group to set up their own independent monitor mix using the Mix A thru Mix D switches located in the center of the unit. Once an overall mix has been decided, musicians can use the My Mix knob to adjust the volume of their own mic or instrument, and they can also add ambience independently with their channel’s Reverb knob. Current settings are clearly displayed with LEDs encircling the knobs, making it easy to check the status while playing. For larger groups, another HS-5 can be connected in tandem to accommodate up to eight musicians.

FOUR CHANNELS WITH GUITAR/BASS AMP MODELING AND VOCAL EFFECTS

The HS-5 provides access to guitar and bass amp modeling on four independent channels. This means that players can connect their electric guitar or bass directly into the HS-5 and jam with the same sound and feel as playing through an amp. Vocalists can also experience enhanced, studio-quality sound via the built-in compressor for each mic input. With the intuitive panel controls, HS-5 users can quickly adjust EQ and pan settings and dial in just the right amount of amount of guitar distortion or vocal compression.

CAPTURE STEREO MIXES OR FULL MULTITRACK RECORDINGS

By connecting a USB thumb drive to the HS-5’s Memory jack, it’s extremely easy to record stereo mixes of group performances for evaluation and sharing. For more advanced production, it’s possible to connect to a computer via USB and record each performer to individual tracks in popular DAW software. This powerful combo creates an incredibly simple and versatile system for creating complete ensemble recordings.

ONBOARD METRONOME FOR TIGHT TIMING

Timing is essential for rehearsal and recording, and the HS-5 includes a built-in metronome to keep everyone playing together. Just press the dedicated Click/Tap button to start the metronome, and then tap the button at the desired tempo to adjust the speed for the music.

TOTAL RECALL FOR QUICK SETUP

The HS-5’s snapshot function allows you to save all the unit’s current settings to a USB thumb drive. This lets your entire group resume performances right where you left off—even at a totally new location or a much later date.
