Developed in partnership between Roland and Drum Workshop (DW), DrumLink is a powerful wireless ecosystem that transforms how electronic drummers connect and perform. Whether you have a Roland V-Drums kit or a hybrid acoustic-electronic configuration, the modular DrumLink system streamlines connectivity for faster setup and a cleaner look.

Welcome to the Future of Wireless Drumming

DrumLink is a new wireless triggering technology for electronic pads, cymbals, and drum triggers that simplifies your rig. This proprietary system is designed specifically for drumming applications, delivering lightning-fast response and rock-solid performance that feels identical to analog triggering. Up to 30 active instruments are supported simultaneously,* unlocking a growing range of hybrid, electronic, and software-based drumming setups.

From Trigger to Tone Without the Tangle

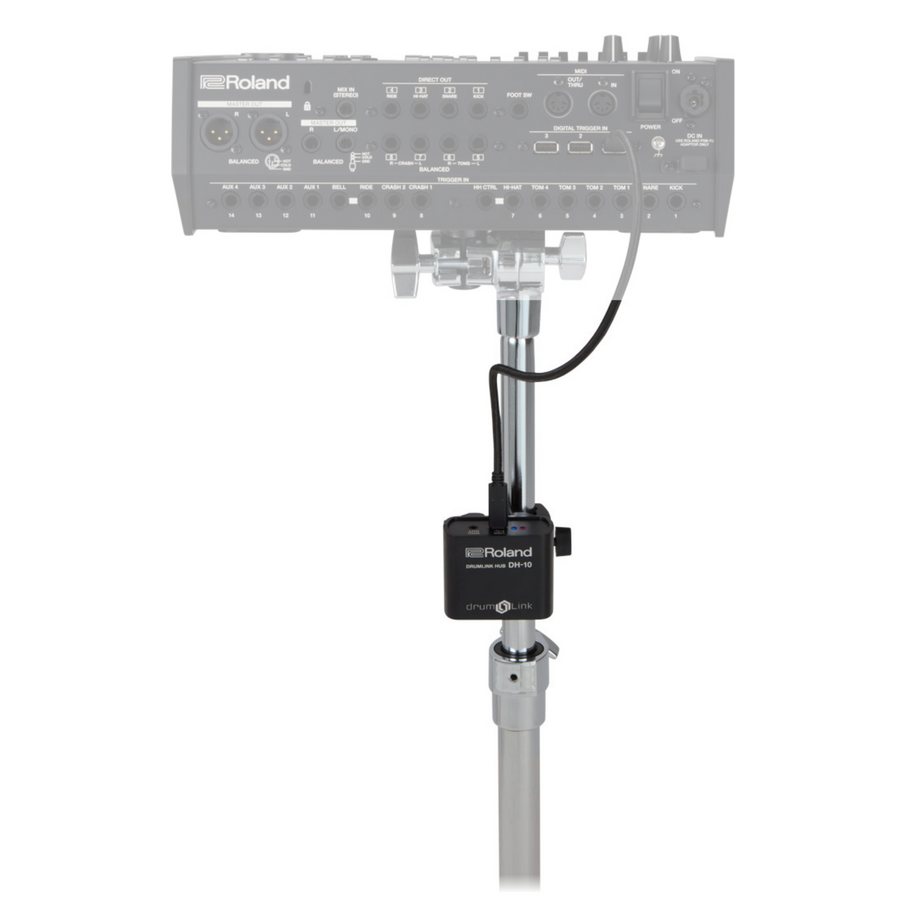

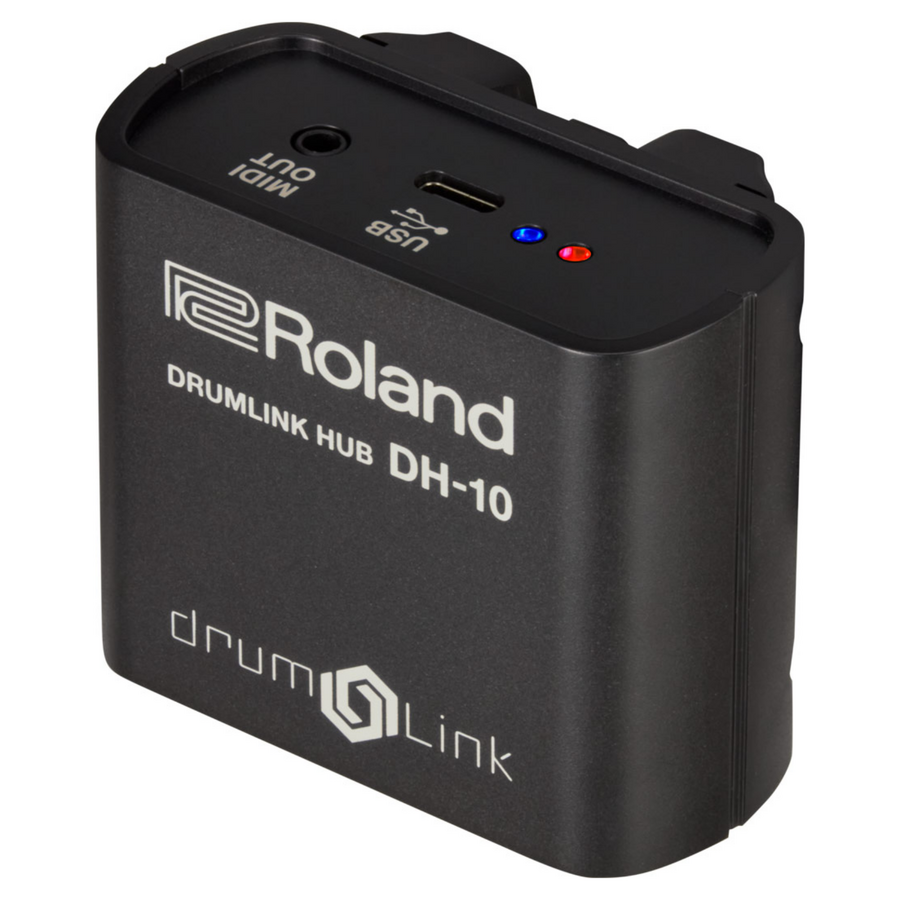

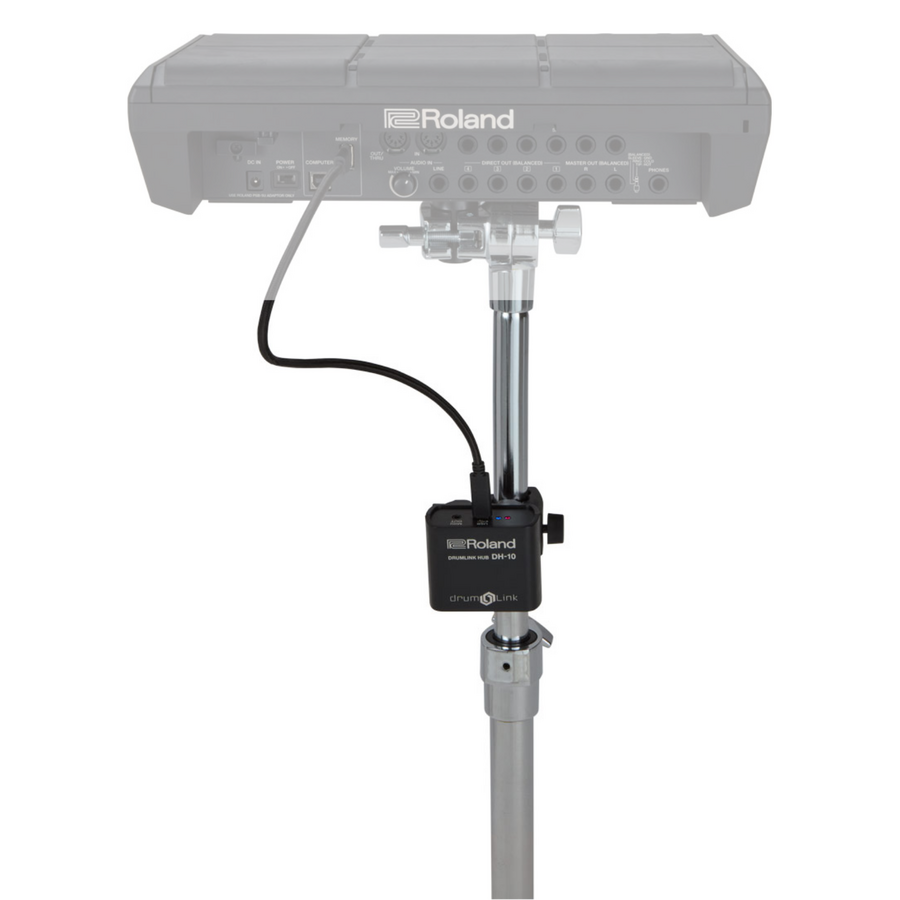

Roland offers a wide range of products with analog trigger outputs that normally require long cables to connect them to trigger inputs on the sound source. DrumLink eliminates these extended cable runs with compact wireless transmitter units mounted on or near each pad, which are connected locally with very short cables. Signals from multiple transmitters are captured with a high-performance wireless receiver that hooks up to a compatible sound module or computer via a single USB-C or MIDI cable.

The WT-10 converts the analog trigger outputs on compatible Roland drum/cymbal pads and acoustic drum triggers to wireless signals. Two inputs support single- and dual-trigger pads, allowing you to connect two different pads to one unit. A single cymbal with two outputs can be connected for bow/bell/edge triggering, and hi-hat pads with two trigger/control outputs are also supported. The integrated mount is highly adjustable, enabling secure and flexible attachment to drum/pad rims, bass drum hoops, and cymbal/hi-hat stands. WT-10 units are powered by two AA alkaline batteries, which provide up to six months of operation in typical applications.

Integrates with the Gear You Already Own

DrumLink works with a wide range of Roland gear, with support planned for more products soon.

-    Roland V-Drums Sound Modules—TD-27, TD-50X, and V71
-    Roland Pads—PD, PDX, PDA, and KD series*
-    Roland Cymbals—CY series (including the CY-16R-T) and the VH-10 V-Hi-Hat
-    Roland Triggers—RT-30 series, RT-10 series (legacy), and BT-1
-    Percussion Pads—SPD-SX PRO
-    Software—DW Soundworks software instrument, plus any computer music software that supports MIDI triggering
