Product Information:

Step into the Spotlight

Today’s audiences crave dynamic performances that stand out. As an artist, you want to connect with your fans and take your moment in the spotlight. The AX-Edge builds on decades of refinement and learning from artists the world over about what makes the ultimate performance synthesizer. The AX-Edge has a sleek, modern design with a customizable look via interchangeable Edge Blades, 49 full-sized keys, and a sound set crafted specifically for keytarists. And throughout the AX-Edge, you’ll find thoughtful design features that give you the freedom and confidence to truly express yourself on stage.

Specifications:

Keyboard: 49 keys (with velocity and channel aftertouch)
Sound Generator: Synth-EX
Parts: 4 parts + Vocoder part
Tones: User Program: 320
Preset Tone: Over 500
User Tone: 256
Effects: Part Multi-effects: 79 types
Part EQ
Vocoder
Program Multi-effects (IFX): 79 types
Chorus: 8 types
Reverb: 6 types
Master Compressor
Master EQ
Other Functions: Favorite
Song Player
Arpeggio
Vocoder
MIDI Master Keyboard
Sound Edit

* You can use the smartphone AX-Edge Editor app (Android version/iOS version) to edit the AX-Edge's sounds.
Controllers: Ribbon Controller
Modulation Bar
Assignable Control knob
Master Volume knob
Assignable buttons x 7
Pedal
Aftertouch
Bluetooth: MIDI: Bluetooth Ver. 4.1 (Bluetooth LE)

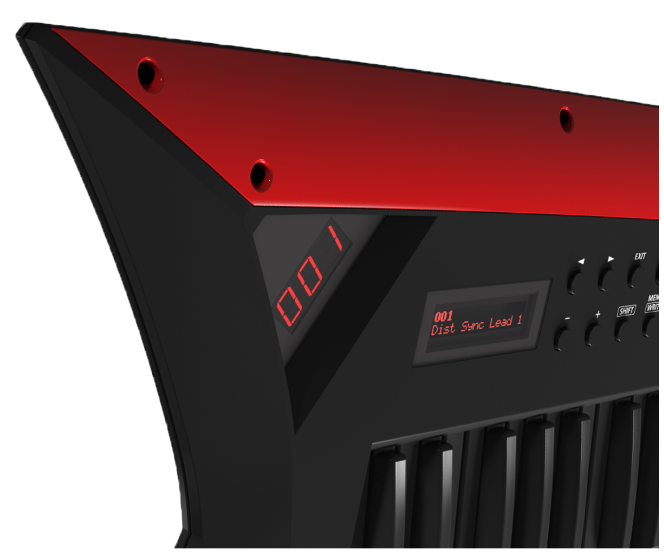

Display: 16 characters 2 line LCD
(3 x 7) segment LED
External Storage Device: USB flash drive

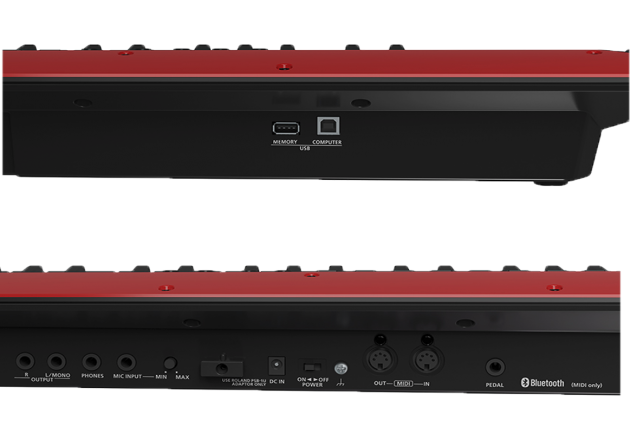

Connectors: PHONES jack: stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
MIC INPUT jack: 1/4-inch phone type
PEDAL jack
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (supports USB MIDI)
DC IN jack
Power Supply: DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
Current Draw: 1,000 mA
* Battery life for continuous use (differs depending on the conditions of use)
Rechargeable nickel metal hydride batteries: approximately 4 hours
* Carbon-zinc or alkaline batteries cannot be used
Accessories: Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Strap
Blade panel (including Hex key, screws)
Ferrite core (including Band for fastening the core)
Options (sold separately): AX-Edge stand (ST-AX2)
Pedal switch: DP series
Expression pedal: EV-5

Size and Weight
Width: 1,252 mm
49-5/16 inches
Depth: 291 mm
11-1/2 inches
Height: 85 mm
3-3/8 inches
Weight (excluding AC adaptor, Batteries): 4.2 kg
9 lbs. 5 oz.
