Description

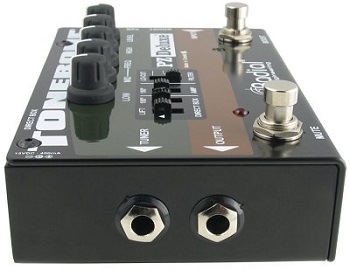

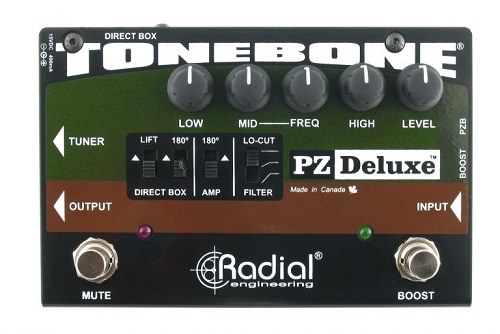

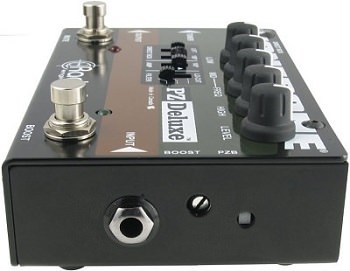

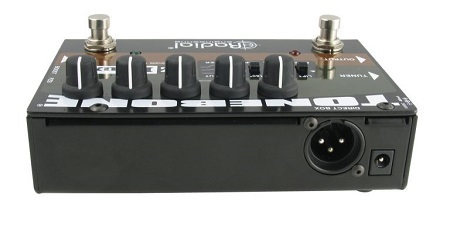

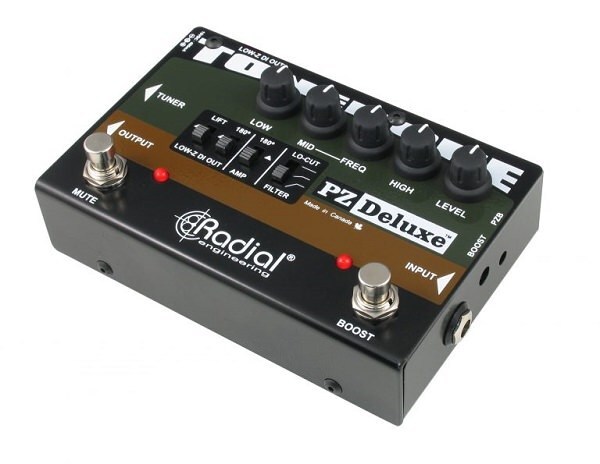

Radial Tonebone PZ-Deluxe Acoustic Instrument Preamp

The PZ-Deluxe is a studio quality instrument preamp in a compact pedal for live stage use, with tone-shaping EQ controls and built-in boost & mute footswitches.

  • Acoustic preamp for all types of pickups and transducers
  • Low-cut filter and 180° polarity reverse to eliminate feedback
  • Radial direct box output to feed the PA
  • Power booster and mute for more control on stage

Control your tone on stage
The PZ-Deluxe is an instrument preamp with a low noise front end that is capable of exceptional dynamics to adapt to all instruments including acoustic guitar, upright bass, mandolin and violin no matter what type of pickup system is being used. Powerful EQ controls allow you to shape your tone through the PA and a stage amp, with a low cut filter and 180° polarity reverse switches to help eliminate feedback on stage. A special PZB gain stage can be activated for use with instruments that have piezo transducers, increasing the input impedance to 10 meg ohms to eliminate the squawk and harshness that are sometimes associated with those pickup systems. The PZ-Deluxe also features a high quality Radial DI to provide a balanced output that can drive cables of over 100 meters (300ft) without noise into the PA system, and built-in mute and boost footswitches give you instant control for solos, instrument changeovers, or silent tune-ups on stage.

Acoustic guitar
The PZ-Deluxe 15V supply delivers more headroom than typical 9V devices for greater dynamics, less distortion and more natural tone. This makes the PZ-Deluxe the perfect front end for acoustic guitars with built-in active systems, electric violin and magnetic pickups.

Direct piezo hook-up
The PZ-deluxe eliminates the need for a preamp. Simply activate the PZB gain stage and the PZ-Deluxe automatically elevates the input impedance to 10 meg Ohms and connect the guitar directly to the studio quality preamp for smooth, natural performance

Upright bass
The studio quality preamp delivers exceptional performance no matter what instrument you plug in. This makes the PZ-Deluxe a great choice for acoustic bass, viola, mandolin, banjo or just about any acoustic instrument. Bypass your external preamp by turning on the PZB for optimum performance.


Specifications

Audio circuit type: Class A FET Hybrid Input Stage
Number of channels: 1
Frequency response: 20Hz ~ 18kHz (0/-3dB)
Dynamic range: 105dB
Gain: +21dB (PZB-Off)
Total harmonic distortion: 0.03% @ -20dB output
Intermodulation Distortion: 0.07%
Input Impedance: PZB OFF: 6.8K Ohms | PZB On: 10M-Ohms
Output Impedance: XLR: 600Ω
Equivalent Input Noise: -108dBu
Features
180° polarity reverse, Ground lift, HPF, Level Control, EQ Control, Boost
Input Connectors: 1/4"
Output Connectors: 1/4", XLR
General
Size (L x W x D): (6.1" x 3.8" x 2.1") (155 x 96.5 x 53mm)
Weight: 1.75lbs (0.8kg)
Power: 15V 400mA Center Pin Positive Adapter
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
