Radial StageBug SB-2 Passive Direct Box

Edit Product

SKU: RA-SB-2

UPC: 676101040650

Linked to MusiPos

RRP: $179

Stock:
0 — Primary Warehouse
0 — Secondary Warehouse

tik1 | tik2 | tik3

Description

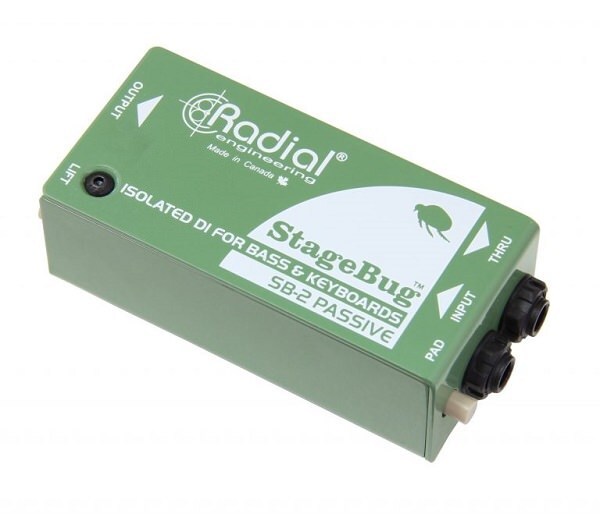

The Radial StageBug SB-2™ Passive is a high-performance direct box made for players who are on the move! Made to fit inside of a guitar case, the SB-2 is ultra compact yet is feature-packed to ensure great performance on any stage.

Passive DI for bass, acoustic and keyboard
Ultra compact to fit in your guitar case
Plug & play easy to use feature set
Transformer isolation eliminates noise

Small size and big performance

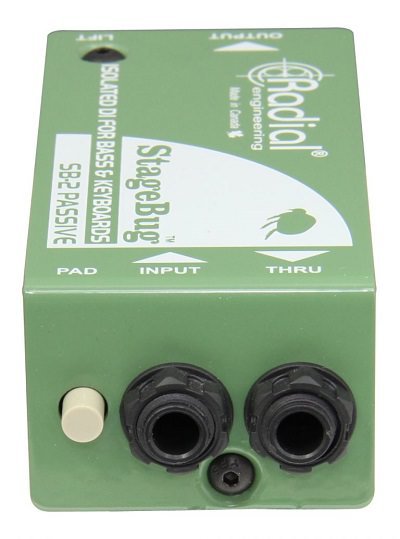

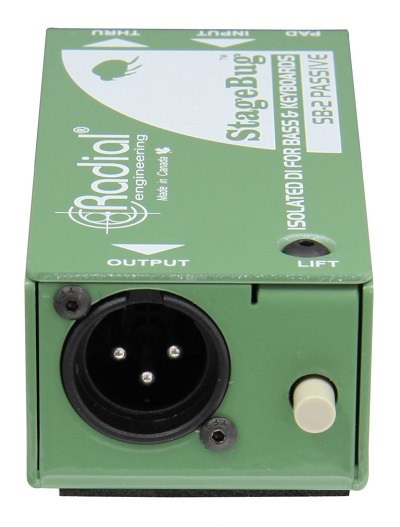

The compact design begins with a ¼" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results.

Using the SB-2 with Acoustic guitar
Plug your acoustic guitar into the SB-2 Passive and it will smooth out the peaks and warm up your tone with a vintage vibe. The compact design makes it perfect for traveling between gigs.

Using the SB-2 with electric bass
Connect your bass to the StageBug SB-2; send the thru signal to your amp and the output to the PA system. Transformer isolation eliminates nasty hum and buzz caused by ground loops.

Using the SB-2 with a keyboard
The Passive SB-2 is a perfect go-to direct box when you need to take the output from a keyboard and send it to the PA system. Input and thru jacks automatically merge the stereo signal to mono to save channels while the SB-2 balances the signal to drive distances of 100 meters (300 feet) without noise!

Specifications

Audio circuit type:	Passive, transformer based
Transformer:	Eclipse ET-DB3, 12:1 ratio
Number of channels:	1
Frequency response:	20Hz ~ 20KHz (± 0.5dB)
Dynamic range:	115dB
Total harmonic distortion:	0.005% @ 1kHz
Phase Deviation:	3° @ 100Hz; 8° @ 50Hz
Input Impedance:	140k Ohms, unbalanced
Output Impedance:	1k Ohms, balanced
Maximum Input:	+20dB
Features
Input pad, Ground lift
Input Connectors:	1/4"
Output Connectors:	XLR
General
Construction:	14 gauge steel chassis & outer shell
Size (L x W x D):	4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
Weight:	0.55 lbs (250 grams)
Shipping size (L x W x D):	8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight:	0.8 lbs (365 grams)
Power:	Passive, no power required
Conditions:	For use in dry locations only between 5°C and 40°C
Warranty:	Radial 3-year, transferable
