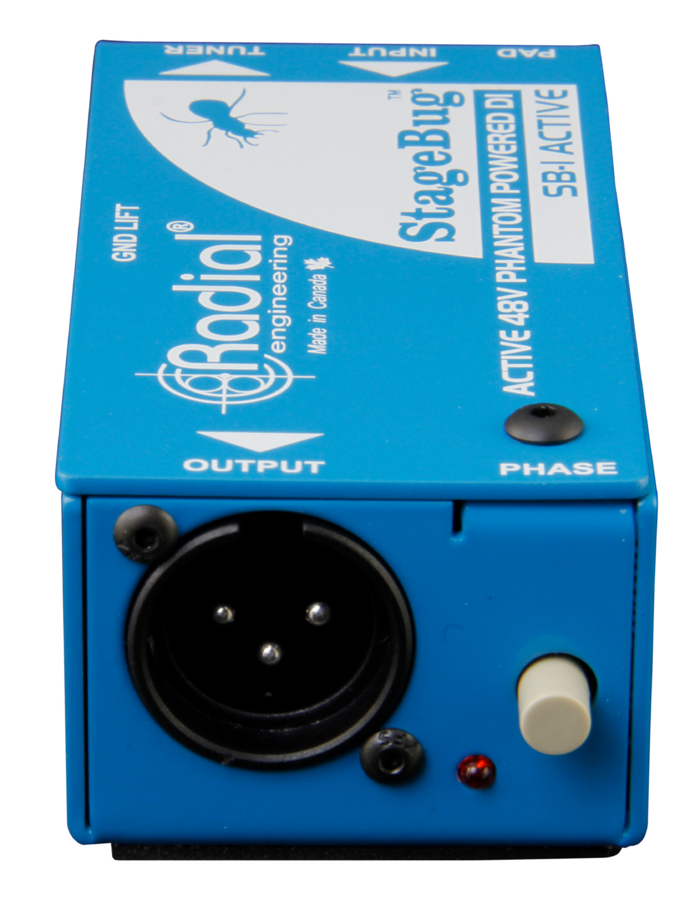

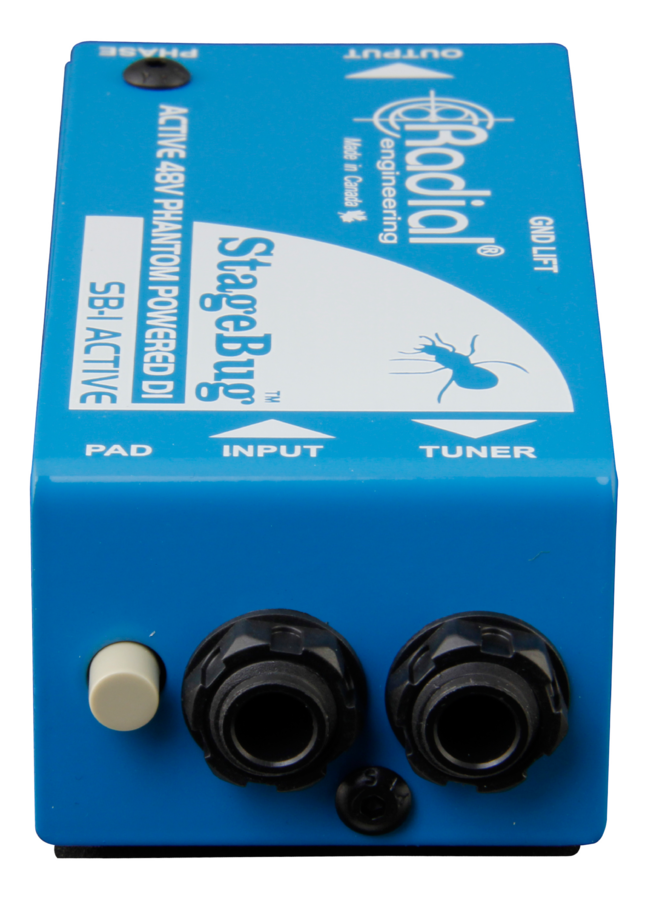

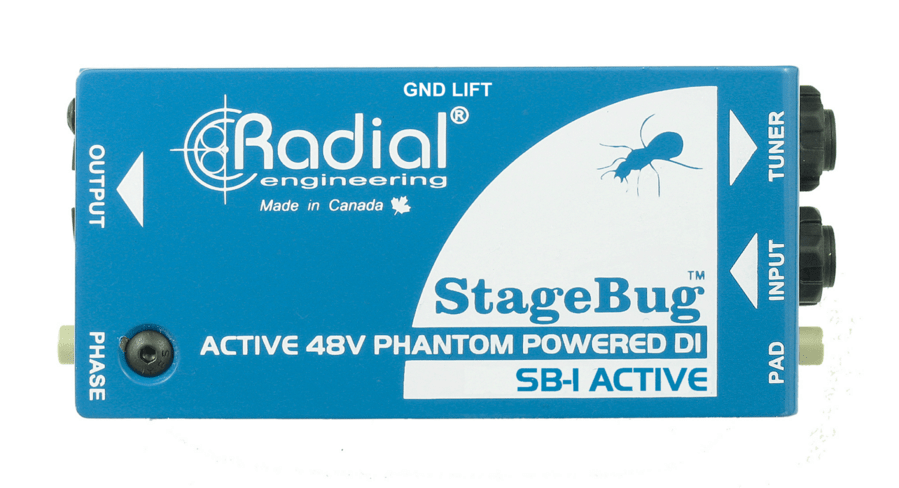

Radial StageBug SB-1 Active Direct Box

Edit Product

SKU: RA-SB-1

UPC: 676101040643

Linked to MusiPos

RRP: $179

Stock:
1 — Primary Warehouse
0 — Secondary Warehouse

tik1 | tik2 | tik3

Description

Ultra-compact DI

The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48 volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!

Specifications

Audio circuit type:	Passive, transformer based
Transformer:	Eclipse ET-DB3, 12:1 ratio
Number of channels:	1
Frequency response:	20Hz ~ 20KHz (± 0.5dB)
Dynamic range:	115dB
Total harmonic distortion:	0.005% @ 1kHz
Phase Deviation:	3° @ 100Hz; 8° @ 50Hz
Input Impedance:	140k Ohms, unbalanced
Output Impedance:	1k Ohms, balanced
Maximum Input:	+20dB
Features
Input pad, Ground lift
Input Connectors:	1/4"
Output Connectors:	XLR
General
Construction:	14 gauge steel chassis & outer shell
Size (L x W x D):	4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
Weight:	0.55 lbs (250 grams)
Shipping size (L x W x D):	8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight:	0.8 lbs (365 grams)
Power:	Passive, no power required
Conditions:	For use in dry locations only between 5°C and 40°C
Warranty:	Radial 3-year, transferable

SKU: RA-SB-1
Barcode: 930101000993
Brand: Radial
