Celebration of Tone
“Modern Eagle models have always been built to stand up to history while celebrating tonewoods and the discovery of new tones. The Modern Eagle V is a sophisticated instrument not only in its craftsmanship but in its electronic and mechanical design,” said Paul Reed Smith.

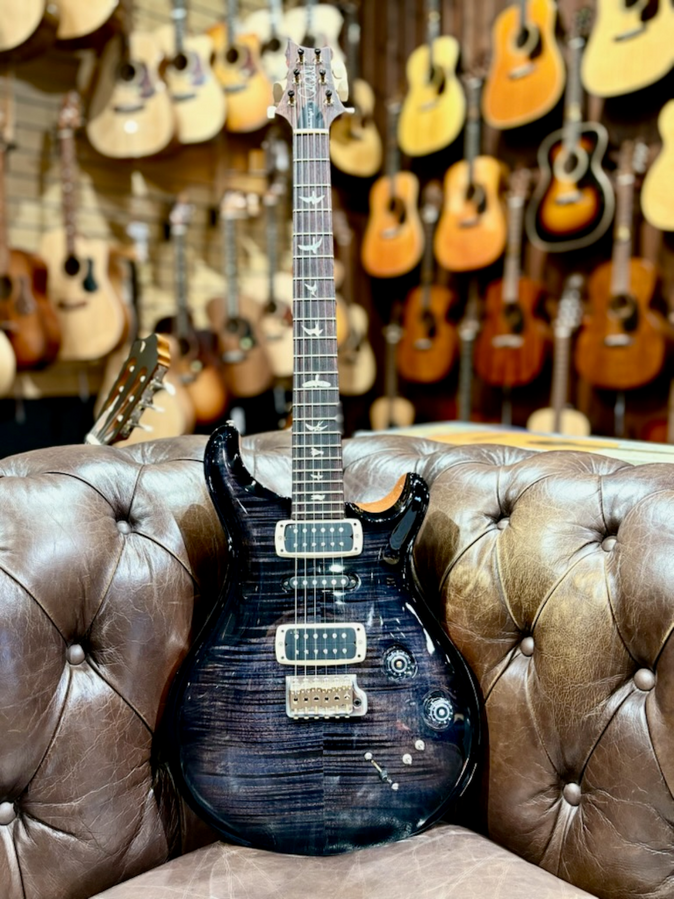

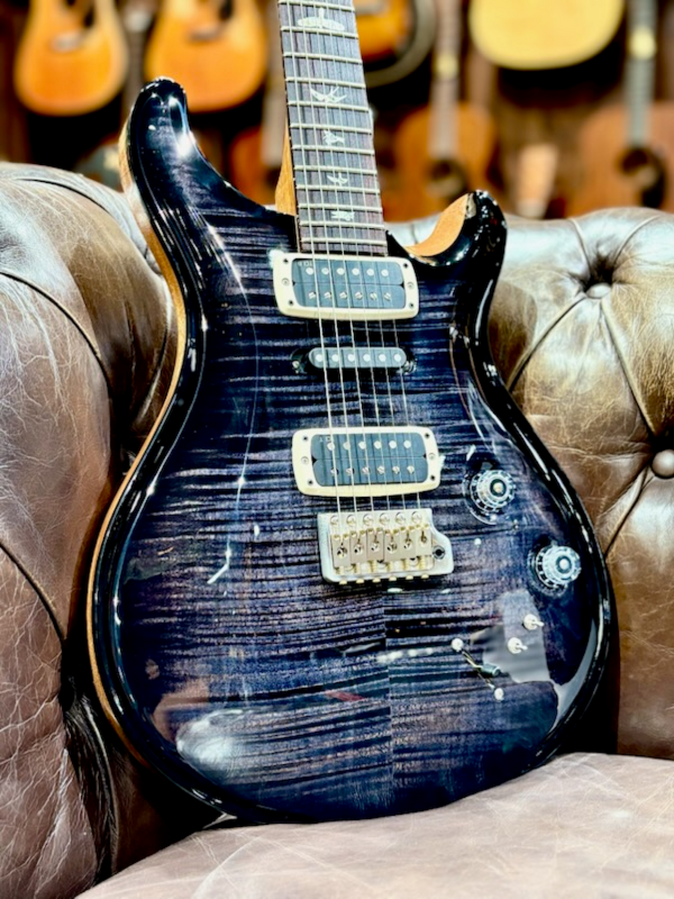

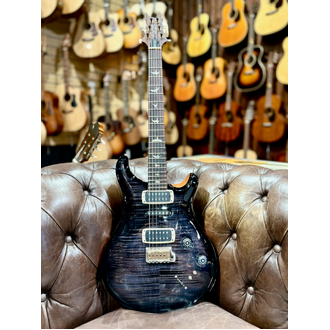

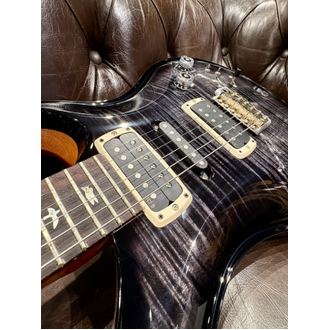

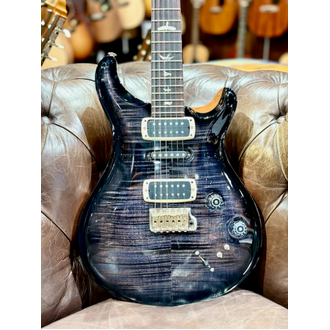

The Modern Eagle V offers highly musical tones for both recording and playing live. A mix of classic and modern, the Modern Eagle V is built on a tried-and-true foundation of a maple top and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck with rosewood fretboard, bone nut, PRS Phase III Tuners, and the PRS patented Gen III tremolo. Its innovative pickup and electronics configuration puts a wide range of tones at your fingertips.

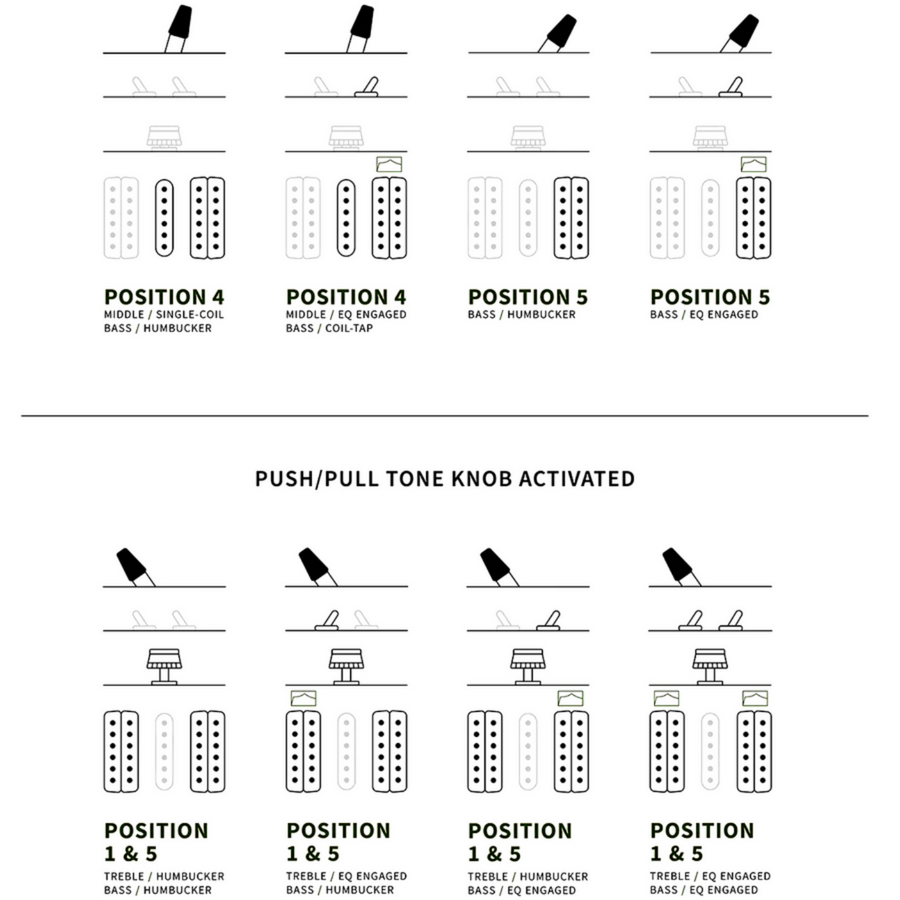

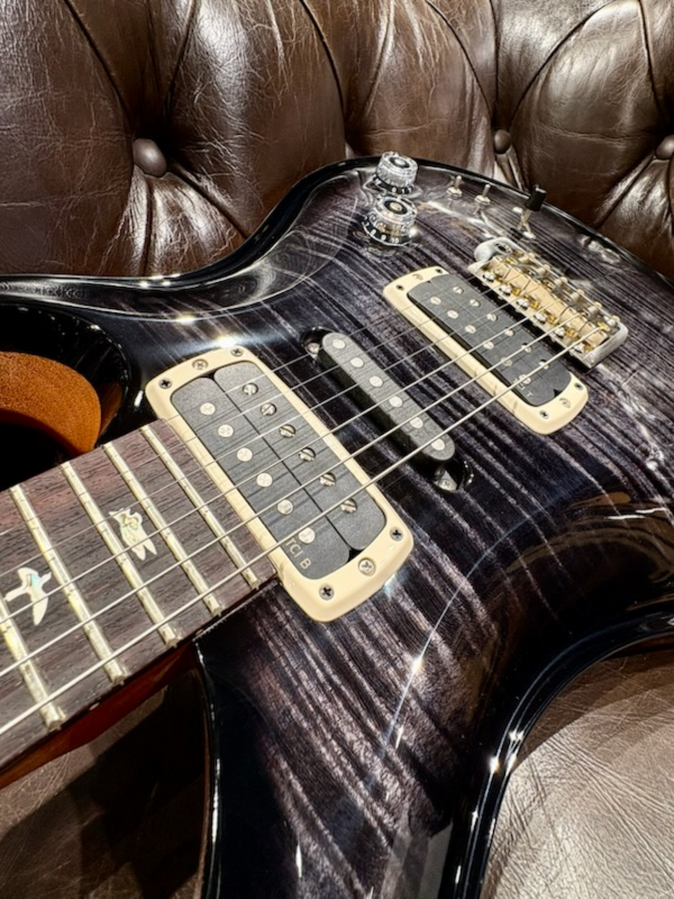

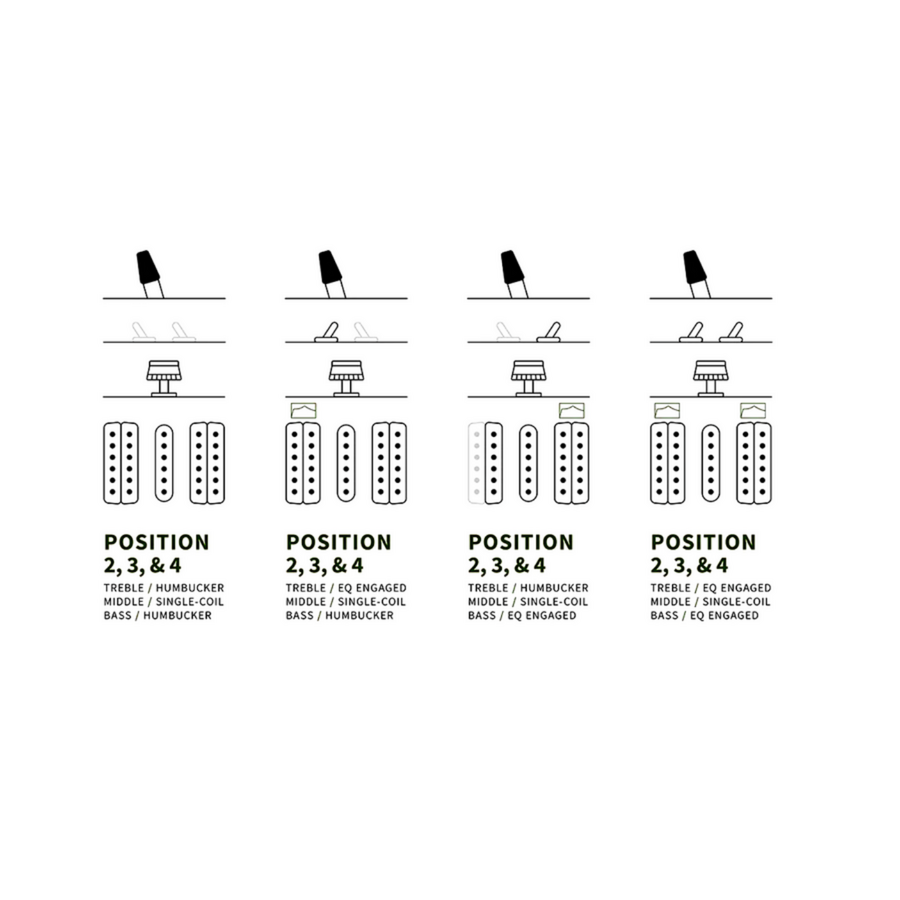

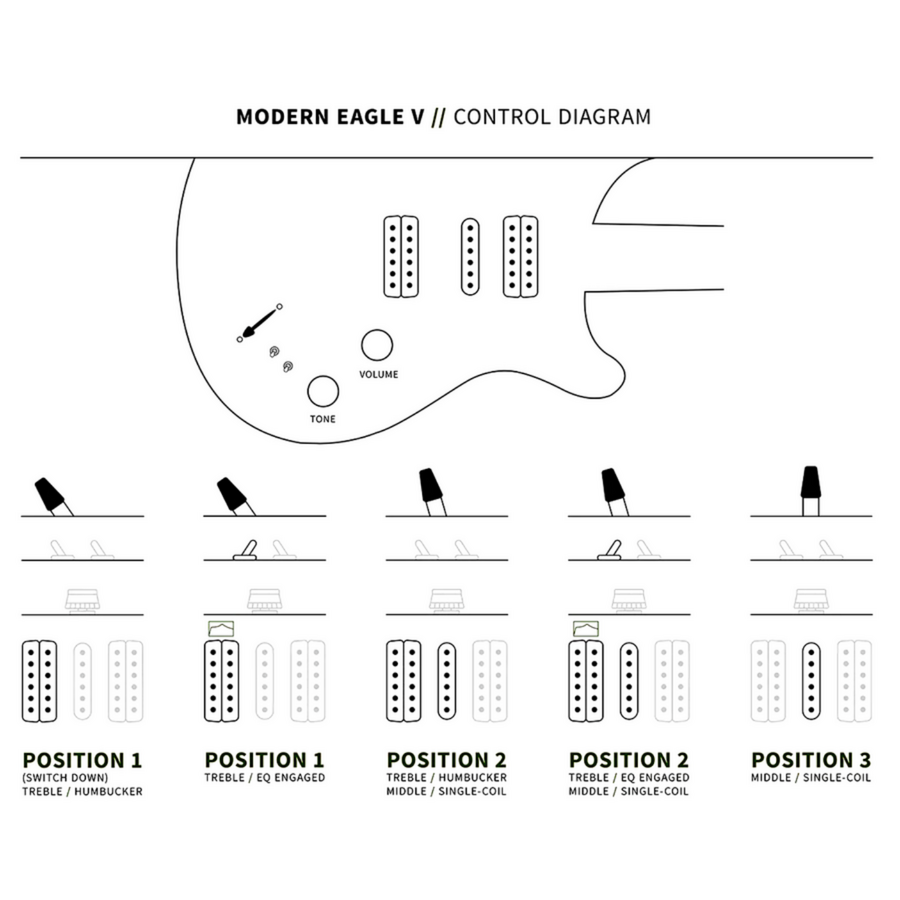

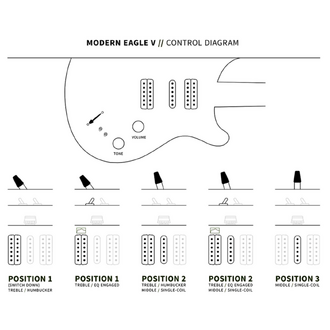

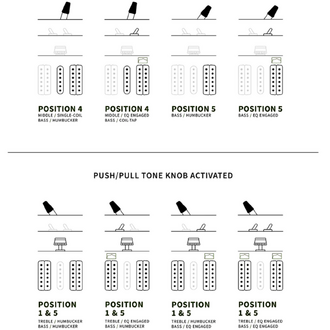

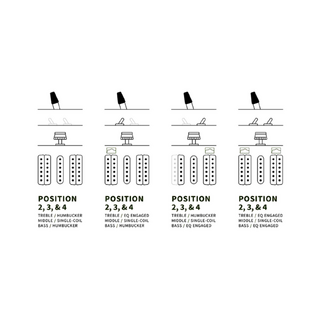

Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the dual EQ mini-toggle switches act as tuned high-pass filters when engaged (in the up position), removing shelved low-end and allowing the high frequencies through for more clarity and musical highs.

Specifications

Body
Body Construction: Solidbody
Top Wood: Maple
Back Wood: Mahogany
Top Carve: Violin

Neck
Number of Frets: 22
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern
Neck Depth at the 1/2 Fret: 7/8"
Neck Depth at the 12 1/2 Fret: 61/64"
Neck Width at the Nut: 1 11/16"
Neck Width at the Body: 2 1/4"
Fretboard Wood: Rosewood
Fretboard Radius: 10"
Fretboard Inlay: Birds
Headstock Logo: Signature, Inlaid
Neck/Body Assembly
Neck/Body Assembly Type: Set

Finish
Finish Type: High-Gloss Nitro

Hardware
Bridge: PRS Patented Tremolo, Gen III

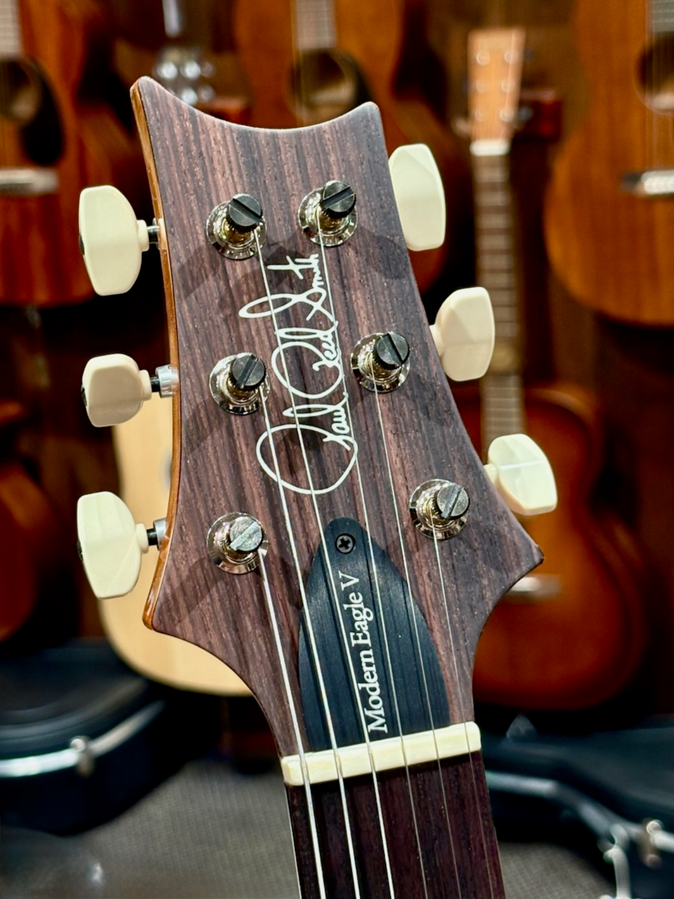

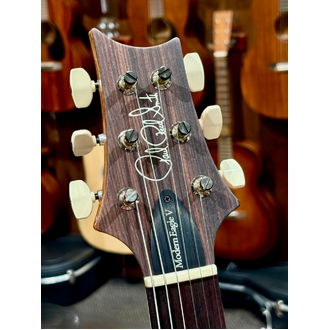

Tuners: PRS Phase III Locking Tuners with Wing Buttons
Hardware Type: Nickel
Nut: Bone
Truss Rod Cover: "Modern Eagle V"

Electronics
Treble Pickup: TCI
Middle Pickup: NS-01
Bass Pickup: TCI

Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle EQ Switches

Additional Info
Strings: PRS Signature 10-46
Tuning: Standard (6 String): E, A, D, G, B, E
Case: Hardshell Case
