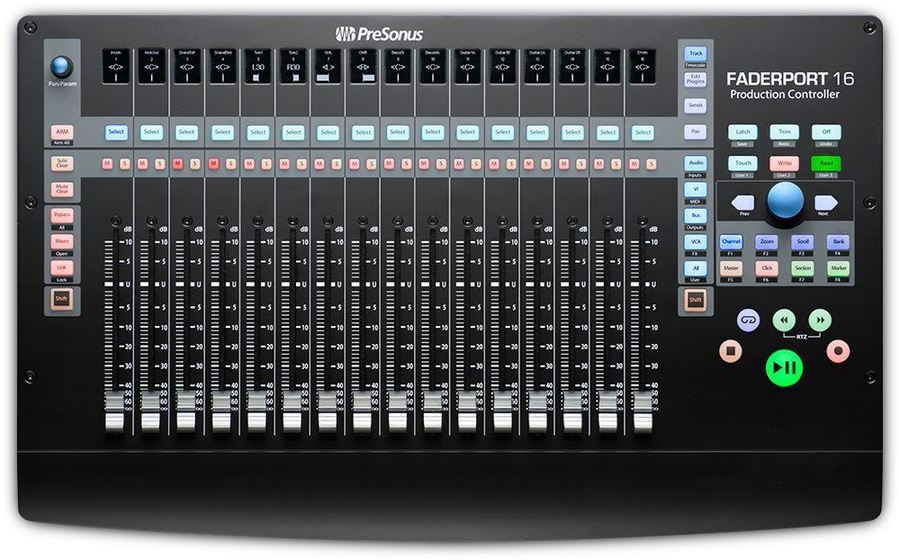

PreSonus FaderPort 16 16-Channel Moving Fader Mix Production Controller

Description

PreSonus FaderPort 16 16-Channel Moving Fader Mix Production Controller

A superior solution for anyone who mixes in the box, only the FaderPort 16 provides 16 100 mm touch-sensitive, motorized faders and 89 buttons covering 104 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 16, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.


Specifications

Computer system requirements:

Below are the minimum computer-system requirements for the FaderPort™ 16:

Mac

  • Mac® OS X 10.8.5 64-bit or later
  • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
  • Intel Core 2 Duo (Intel Core i3 or faster recommended)
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB 2.0 port
  • Internet connection required for driver and bundled software installation
  • 30 GB hard disk space*
  • Monitor with 1366 x 768 resolution (high-dpi monitor recommended)*

* Required for Studio One
Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

PreSonus FaderPort 16 has been tested and approved to work with the following software:

  • Native Mode - PreSonus® Studio One® 3.5.3
  • HUI Emulation - Supported by Pro Tools 12
  • Mackie Control Emulation - Supported by Logic 10.4, Cubase 9.4, Ableton 9.7+, Sonar, and more
  • Other DAW support coming soon.

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.​​


Technical Specifications

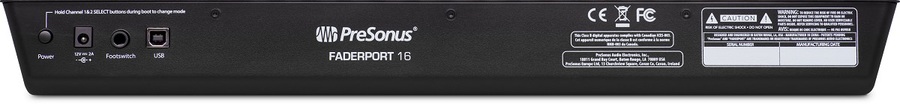

Input / Output
1 USB 2.0 port
1 Footswitch jack for hands-free stop/start

Faders
16 100 mm long-throw, touch-sensitive, motorized faders
Dual-servo motorized drive belt system for fast and quiet operation
Ultra-smooth feel and lightning fast
Heavy-duty construction
Resolution: 10-bit, 1,024 steps

Buttons and Knobs
General Controls: Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls: Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality: Plug-in Edit, Bus Sends, Pan
Window View: Mix, Project, Transport, Undo
Transport: Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)
Navigation: Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge
Console Management: Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
Displays: 16 digital scribble strip displays, time code display, channel meters

Power
12 VDC, 1.2A external power supply (factory configured, included)

Physical
Dimensions
Height: 2.11” (53.59 mm)
Depth: 11.9” (302.26 mm)
Width: 19.6” (497.84 mm)
Weight: 8 lb. (3.63 kg)


SKU
PRE-FADERPORT16
Barcode
930249000309
Brand
PreSonus
