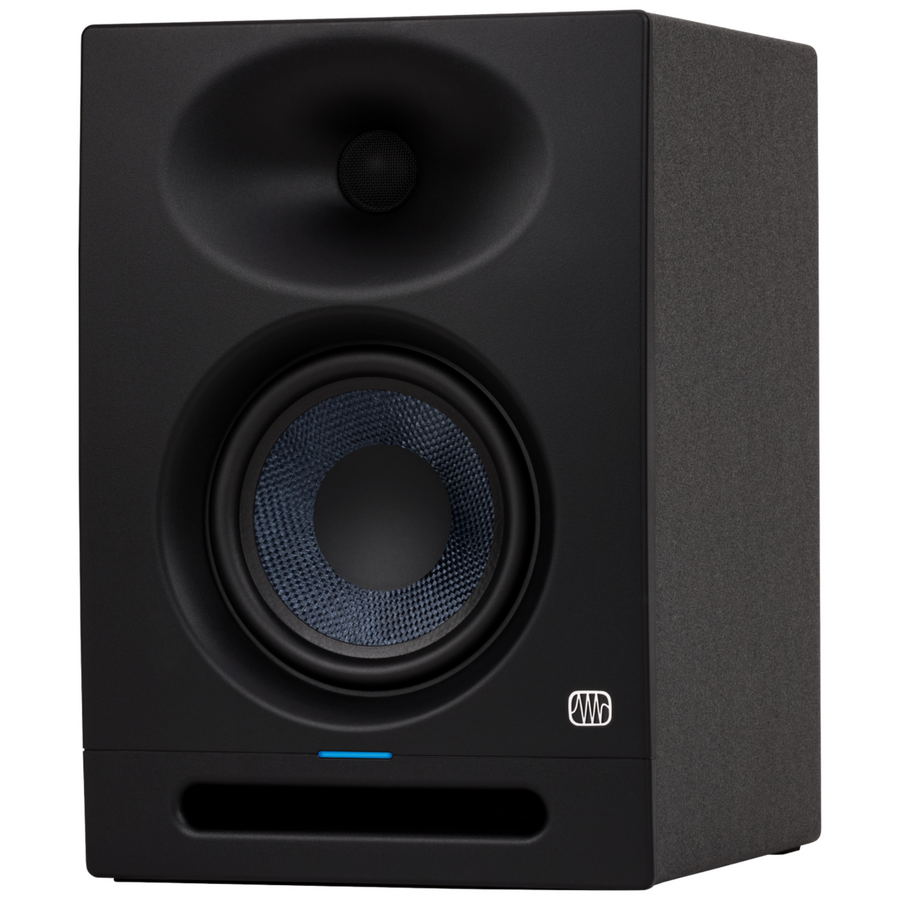

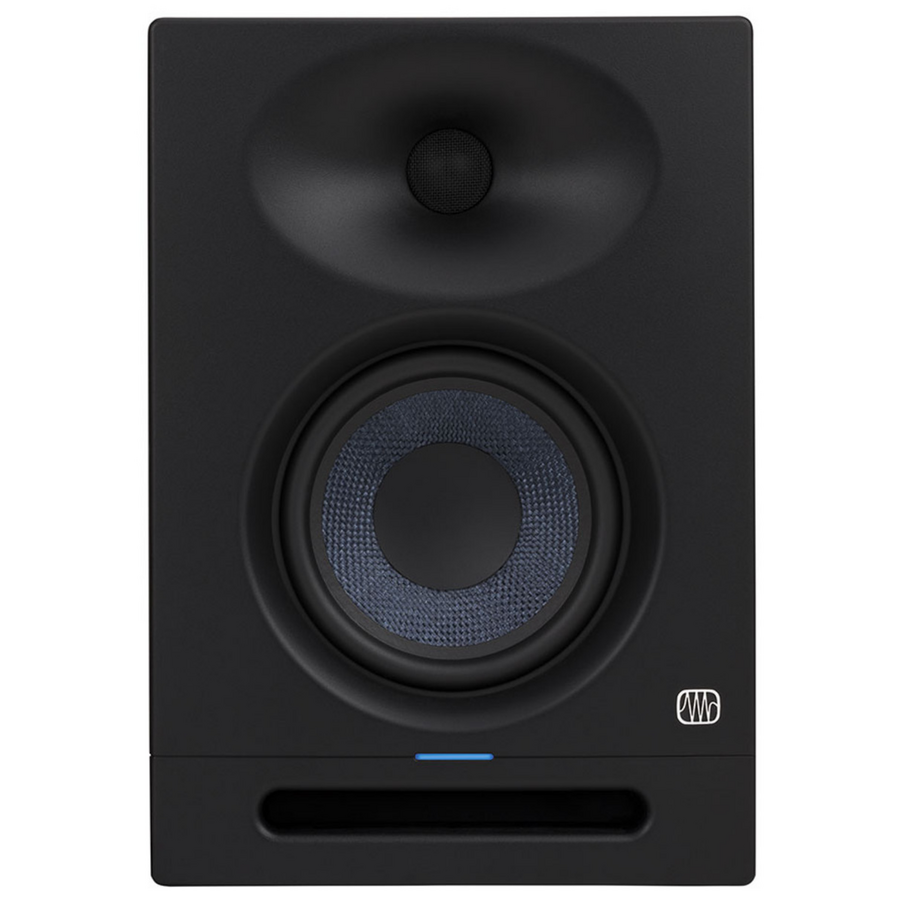

5.25-Inch 2-Way Active Studio Monitors With EBM Waveguide

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Features

5.25-inch woven composite low-frequency driver
1-inch, ultra-low mass, silk-dome, high frequency driver
Crossover Frequency, 3.5 kHz
120˚ x 60˚ EBM waveguide provides a sweet spot
Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
80W, Class AB dual amplification
48 Hz to 20 kHz frequency response
102 dB Peak SPL (@ 1 meter)

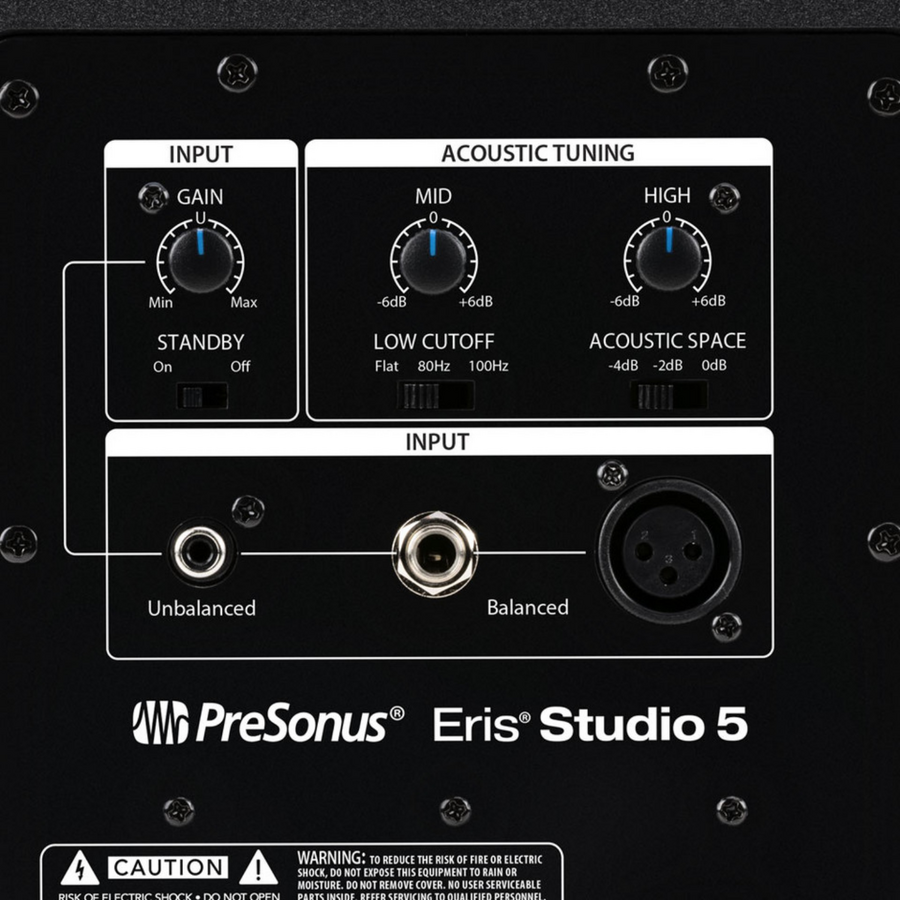

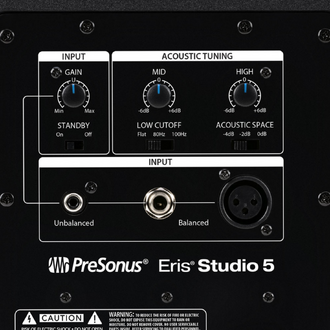

Acoustic Tuning Controls:
    Acoustic Space (Flat, -2 dB, -4 dB)
    High Frequency (±6 dB, center 10 kHz, continuously variable)
    Mid Frequency (±6 dB, center 1 kHz, continuously variable)
    Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Inputs:
    XLR and 1/4-inch TRS balanced rear-panel inputs
    RCA unbalanced rear-panel inputs
Protection:
    RF interference
    Output-current limiting
    Over-temperature
    Turn-on/off transient
    Subsonic filter
    Power Saver mode (engages after 40 minutes)

Weight:
    6.36 KGS
Width:
    0.32 (cm)
Height:
    0.40 (cm)
Depth:
    0.29 (cm)
