A reborn classic
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.

Turn the tables

The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

Excellent sound design

The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

Pick up the pace

Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

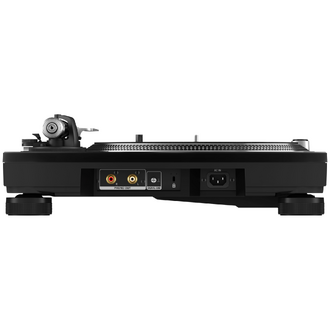

Flexible connectivity

Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Main Features


Accessories

    PLX-1000
    Power cord
    Audio cable
    Ground wire
    Adapter for EP record
    Turntable sheet
    Slip mat and sheet
    Dust cover
    Head shell
    Balance, sub and shell weights
    Operating instructions

Specifications

Width: 453 mm
Height: 159 mm
Depth: 353 mm
Weight: 14.6 kg

Turntable
Drive Method: Quartz lock, servo-type, direct drive
Platter: Aluminium, die-casting diameter: 332 mm
Motor: 3-phase, brushless DC motor
Braking System: Electronic brake
Rotation Speed: 33⅓ rpm, 45 rpm
Rotation Adjustment Range: ±8, ±16, ±50 %
Wow and Flutter: <0.01% (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio: 70 dB
Starting Torque: > 4.5 kgf・cm
Start Time: 0.3 sec (at 33⅓ rpm)

Tone Arm

Arm Type
    Universal type S-shape tone arm
    Gimbal-supported type bearing structure
    Static balance type

Overhang: 15 mm
Effective Length: 230 mm
Tracking Error: Within 3°
Height Adjustment Range: 6 mm
Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
Single Cartridge Weight: 2.5-12 g (includes mounting materials)

Terminals

Outputs: 1 ANALOGUE (RCA
