Description

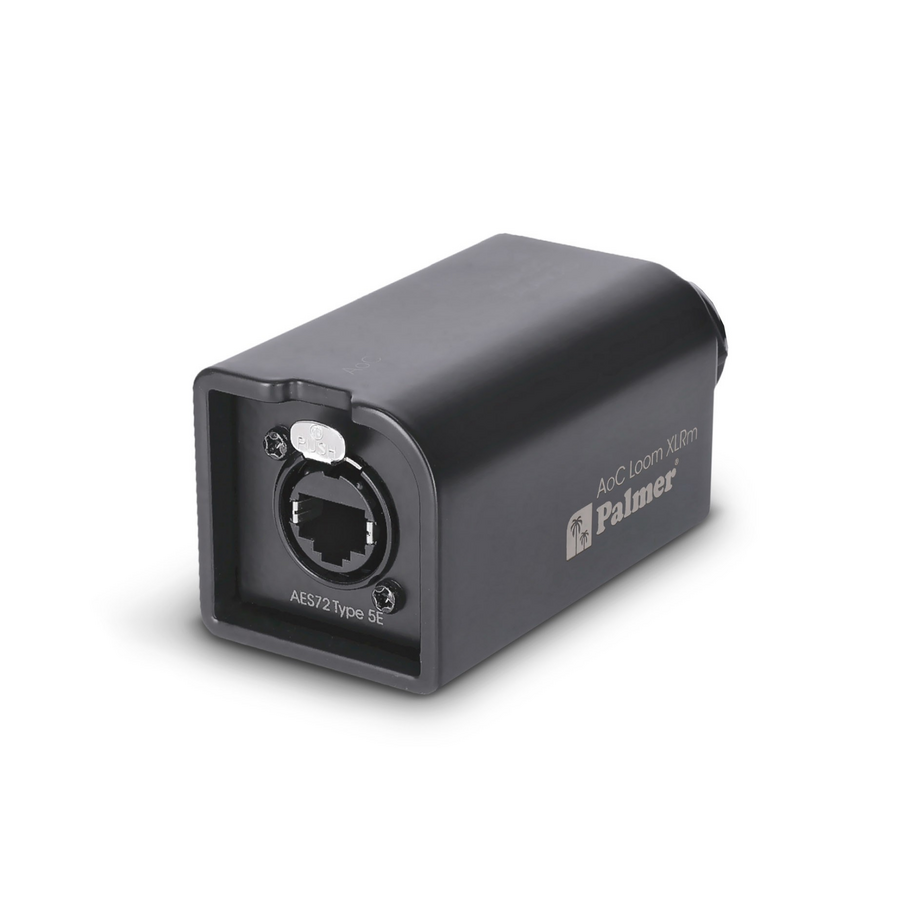

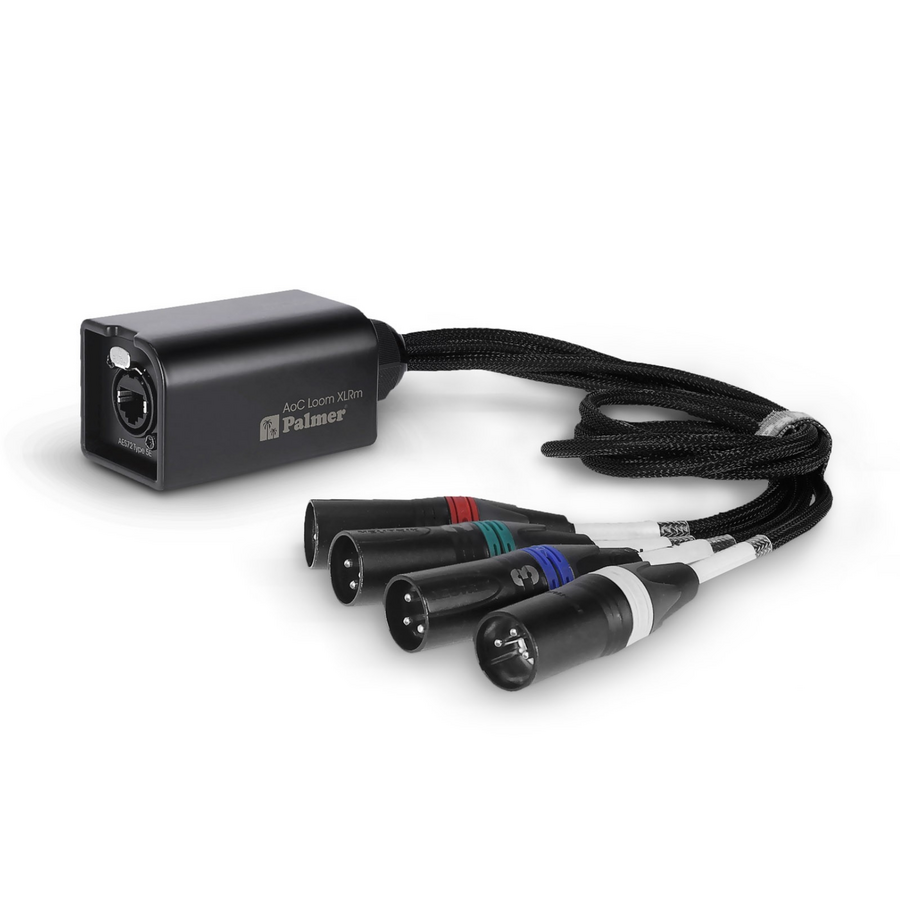

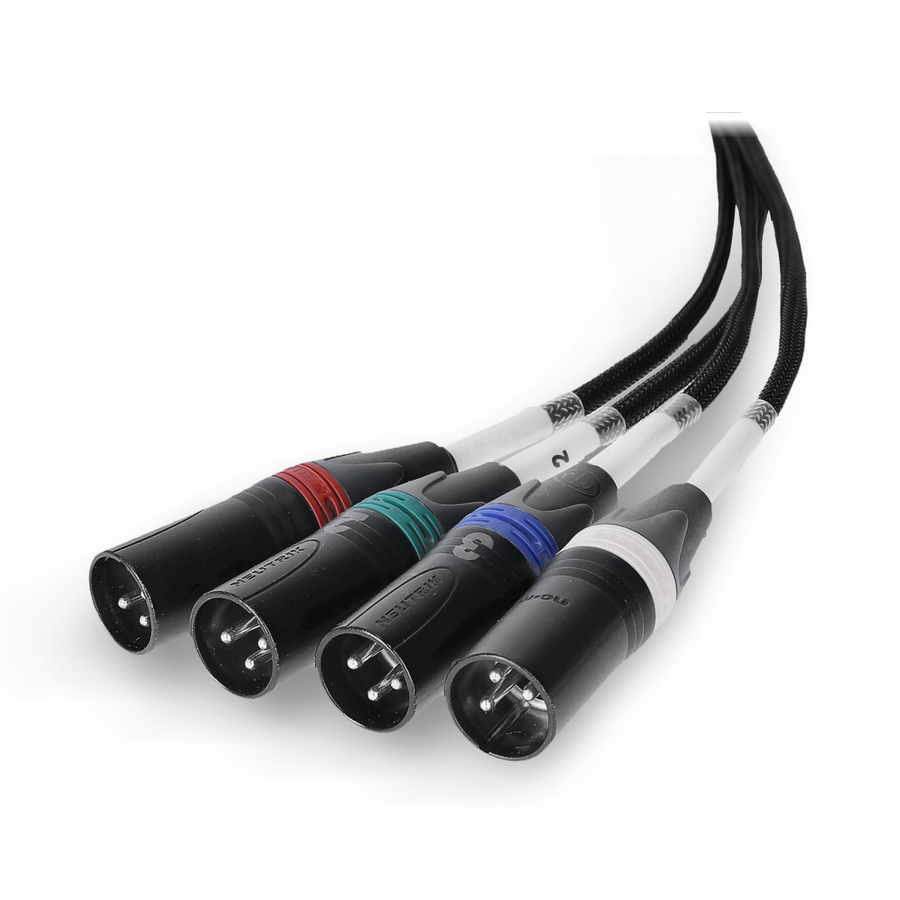

The P AOC L XLR M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The male XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the P AOC L XLR M enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L XLR M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Specifications

General
Product type: Audio over Cat adapter
Number of inputs: 4
Input type: Balanced
Input Connector: RJ45
Number of outputs: 4
Output type: Balanced
Output connector: 3 pin XLRm
Material: Aluminium, Steel
Cable Length: 0.5 m
Width: 80 mm
Depth: 45 mm
Height: 45 mm
Weight: 0,38 kg
Operating Temperature: -20 - 70 °C
Air humidity: > 80 % (non-condensing)



Specifications

SKU
PAL-PAOCLXLRM
Model #
PAL-PAOCLXLRF
Barcode
930249002260
Brand
Palmer
