Description

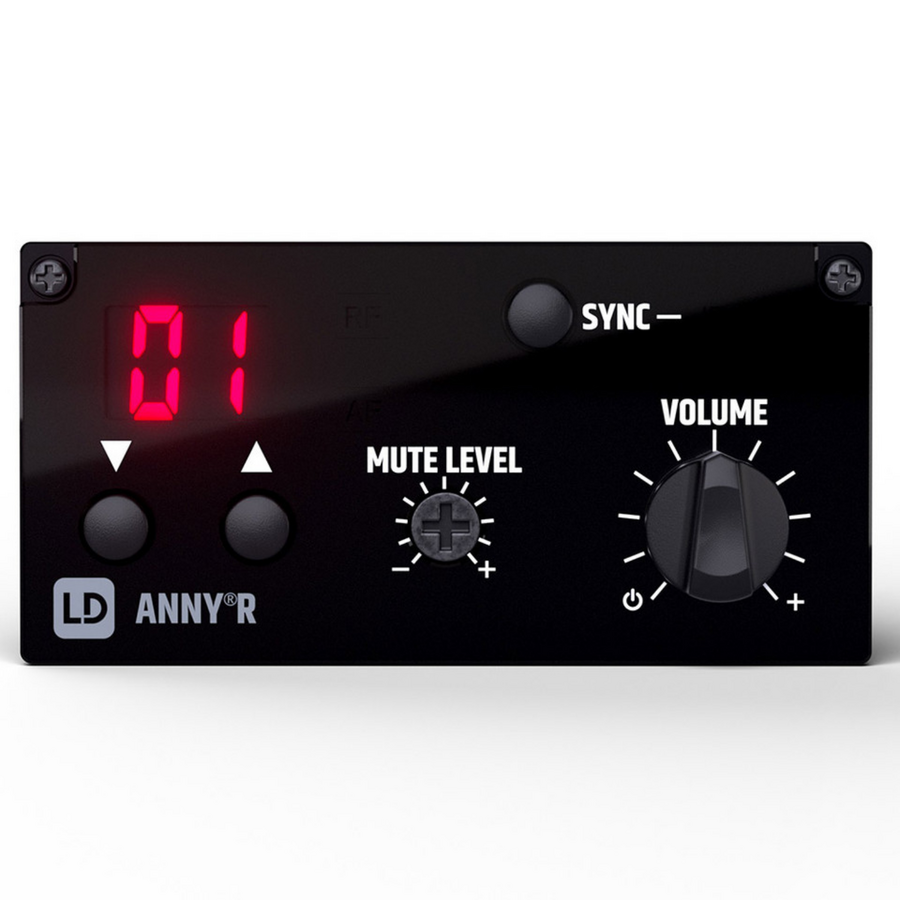

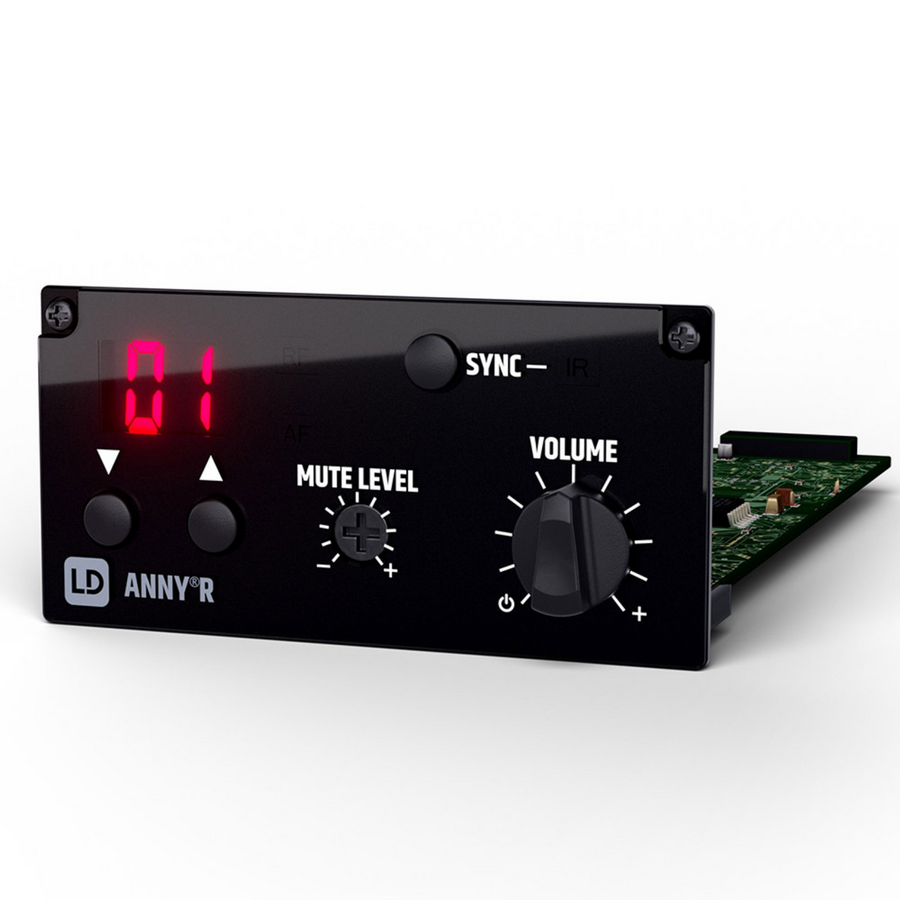

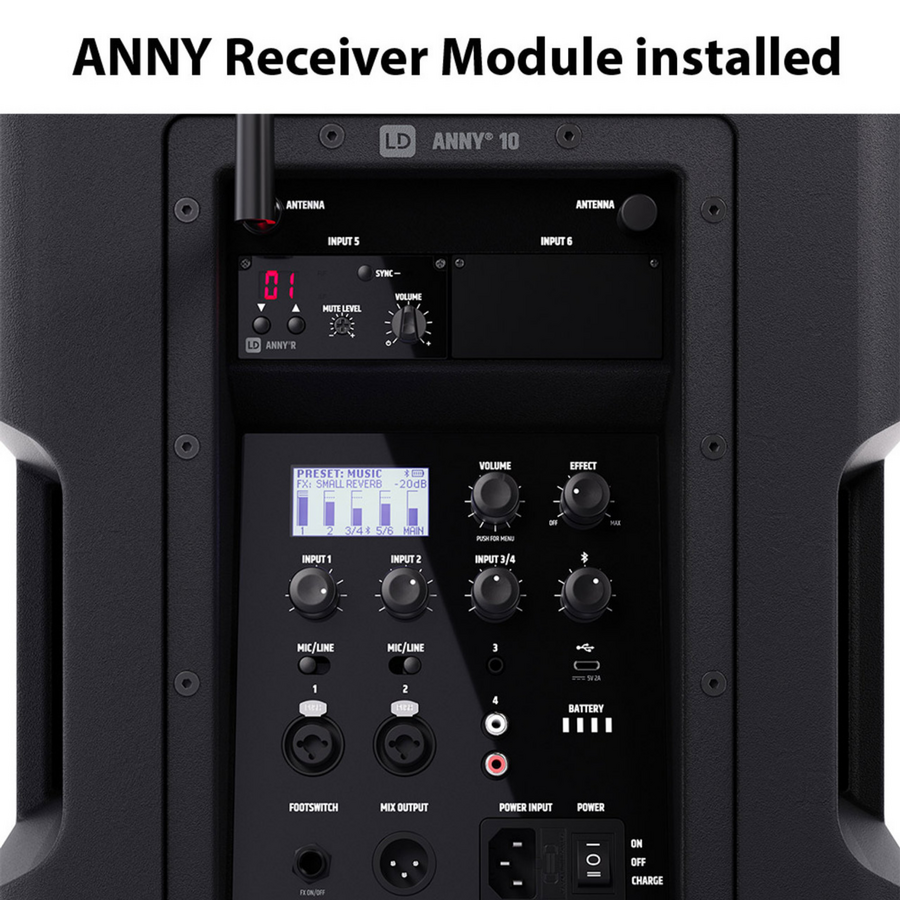

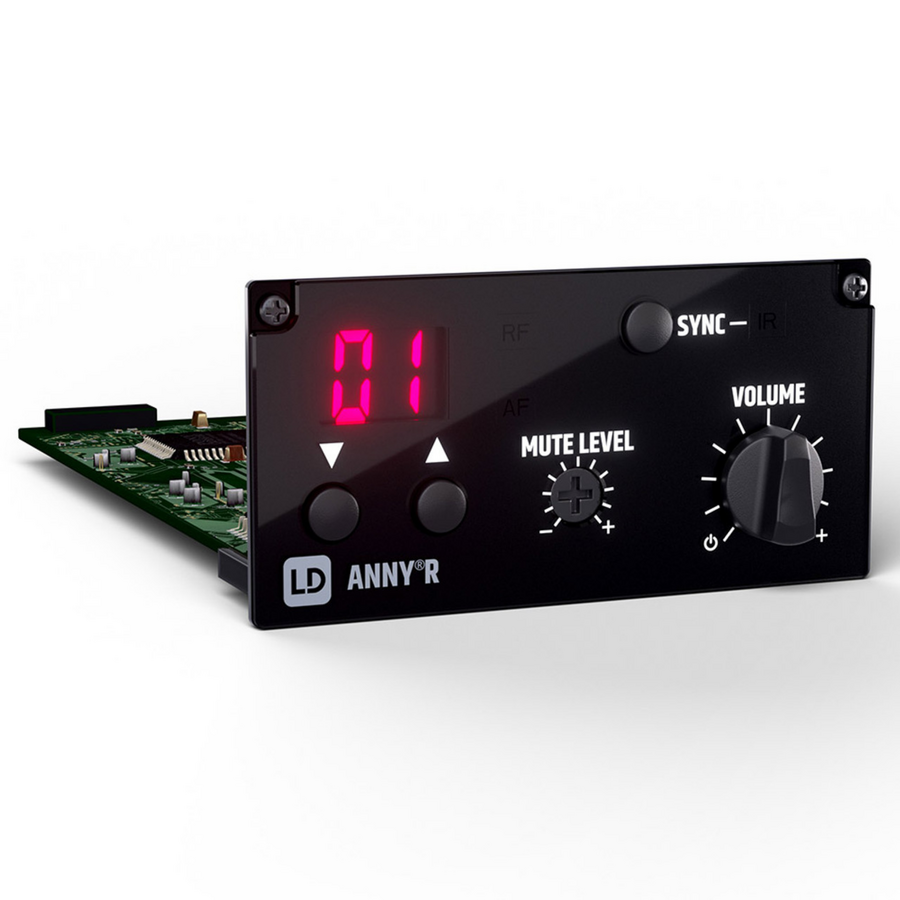

This ANNY® Receiver Module allows retrofitting of an ANNY® wireless microphone by installing it in a free receiver module slot of the ANNY® loudspeaker. It receives with the frequency band B5 the frequency range of 584 - 608 MHz. A volume control on the module allows you to set the volume level to suit your needs, while a mute level control effectively eliminates noise and interference caused by weak signals. Radio signals can be received up to 80 metres using the supplied antenna with TNC connector. The receiver is easily and conveniently synchronised via infrared with the matching ANNY® bodypack transmitter or wireless handheld microphone.

Features

  •     Radio system with FM technology incl. separate antenna
  •     Can be retrofitted to all ANNY® loudspeakers
  •     Reception range up to 80 m
  •     Separate volume control
  •     12 selectable radio channels
  •     Mute level control (squelch)

Specifications
Product type     Battery-powered PA speaker accessories
Type     Receivers
Modulation Type     FM
Transmission frequency range     584 - 608 MHz
Channels     12
Frequency response     50 Hz - 17 kHz
Controls     Mute Level (Squelch)
Controls     Power / Volume
Controls     SYNC
Controls     Value Down
Controls     Value Up
Indicators     AF (audio signal)
Indicators     LED Display
Indicators     RF (radio signal)
Connectors     Audio outputs
Connectors     BNC-Antenna
Weight     0.08 kg

Specifications

SKU
LDS-ANNYRB5
Model #
LDS-ANNYRB5
Barcode
930249001379
Brand
LD Systems
