IK Multimedia UNO Synth Pro Synthesizer

Description

UNO Synth Pro gives you the power to create nearly any analog synth sound you can imagine. With its unique dual-filter, 3-oscillator paraphonic design, 256 presets, 64-step sequencer, studio-grade effects, expanded connections, and much more, UNO Synth Pro breaks new ground for music makers.

Available in two form factors to suit all players’ needs—stage-ready with metal housing and premium Fatar semi-weighted keybed; or ultra-portable, USB-powered with capacitive keyboard—UNO Synth Pro offers everyone the next generation of analog sound design in a smart format that fits any space or budget.

Huge real analog sound: 3 continuously variable waveshape oscillators with PWM, synch, FM and ring modulation
Dual filter design: a new SSI filter plus the original UNO Synth filter for 24 possible modes, including serial and parallel routing
Massive sonic flexibility: full ADSR envelopes + LFOs and modulation matrix
Powerful control: 256 User-editable presets, onboard arpeggiator and 64-step sequencer with automation
Onboard effects: 12 studio-quality effects in 3 simultaneous slots: modulation, delay and reverb, plus true-analog overdrive
Advanced connectivity: noiseless balanced outs; USB, MIDI and CV/Gate I/O; plus audio input to filters, effects or outputs
Includes FREE editor for Mac/PC that works as a standalone application and a plug-in inside your favorite DAW

3 Oscillators that do it all

3 analog oscillators offer continuously variable waveshape, including pulse-width modulation. Oscillators can be hard-synced for more harmonically complex tones, and oscillator FM (frequency modulation) lets you shape everything from bell-like sounds to screaming industrial tones.

UNO Synth Pro even includes ring modulation for wobbly, sci-fi sound, and a white noise generator for a wide range of percussive sounds and epic rises.

Recreate famous synth sound sources or forge entirely new ones - UNO Synth Pro has the tools you need.

Dual filters with 24 available modes

In addition to the original UNO Synth’s 2-pole OTA multimode filter, UNO Synth Pro adds a new 2/4-pole SSI LP filter with self-oscillation. The dual filters can be used in series or parallel, with invertible phase, for a total of 24 possible filter combinations.

In short, the UNO Synth Pro can recreate the filter sound of the most famous classic synths as well as deliver fresh new options to the limits of your imagination.

Envelopes, filters and modulation matrix

UNO Synth Pro offers 2 full ADSR envelopes, one dedicated to the filter and the other to amplitude, with both available as sources to modulate everything from oscillator pitch and waveshape to LFO speed or even other envelope stages.

2 LFOs (low-frequency oscillators) can create classic synth vibrato, wah and tremolo as well as do more complex modulations including audio range FM.

And a 16-slot modulation matrix makes routing all these a breeze. You can quickly and easily design even the most sophisticated modulation scheme, with both internal and external sources, including MIDI controllers.

Stunning onboard effects

IK’s experience in modeling analog studio effects is decades long. For UNO Synth Pro, you’ll find a super warm and organic true-analog overdrive, plus 12 studio-quality effects in three simultaneous slots: modulation, delay and reverb. External signals can also be routed through these effects, with pre-effects filtering for maximum flexibility.

Unparalleled creative tools

Improved playability

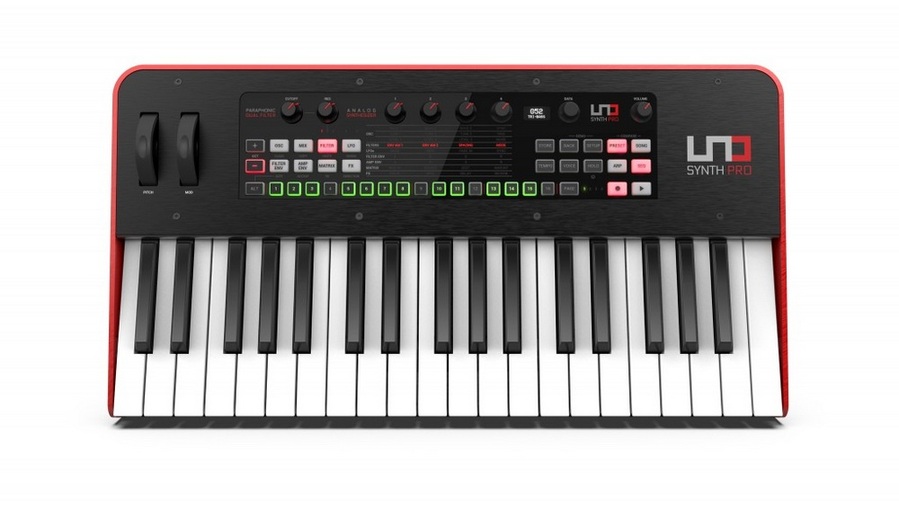

UNO Synth Pro offers a premium 37-key semi-weighted keybed made by Italian manufacturer Fatar, while UNO Synth Pro Desktop provides an enhanced version of the original’s long-lasting capacitance-sensing keys along with pitch and mod strips for enhanced expression.

You’ll find firm-touch rubber pads for the control sections, plus LED-backlit indicators and an LED display for key information, making it easier than ever to use UNO Synth Pro live on stage or in deep programming sessions in the studio.

Presets, sequencer and arpeggiator
UNO Synth Pro offers 256 user-editable presets, each capturing the full state of the sound engine from oscillators to effects.

An onboard 64-step sequencer offers both step and real-time recording, with automation for up to 40 parameters, letting you create incredibly intricate and evolving soundscapes. You can even write CV and gate automation.

And a 10-mode arpeggiator makes it easy to create intricate patterns and runs plus a new “chord mode” that takes advantage of UNO Synth Pro’s paraphonic design.

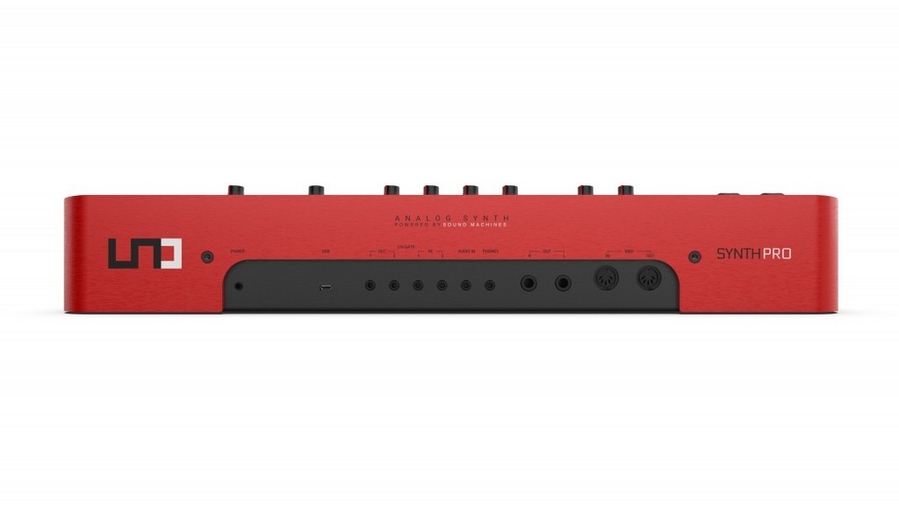

Advanced connectivity
UNO Synth Pro offers two noiseless, balanced stereo outputs as well as headphone out, for superior audio quality in any situation.

USB and 5-pin DIN MIDI In and Out make it easy to integrate with other synths, Mac/PC and mobile devices, and its assignable CV/Gate connections lets UNO Synth Pro interact effortlessly with your Eurorack or other modular system.

And now, audio input allows access to the filter and FX section for external signals, in addition to the original thru-put for daisy-chaining multiple units together without using a mixer.

Advanced software control for Mac/PC

Ready to release the full power of UNO Synth Pro? Now you can. The UNO Synth Pro Editor is here to give you access to all the parameters under the hood. While the Editor does not generate sound on its own, it will free how you work with UNO Synth Pro hardware, harnessing the power of your Mac/PC to easily create, save and manage presets.

Features

All-analog audio path with 2 VCOs with continuously variable waveshape, noise generator, resonant multimode VCF and VCA
2 independent analog VCOs with Saw, Triangle and Pulse waveforms with continuously variable shape including PWM of the square wave and a separate white noise generator
A 2-pole multimode OTA-based sweepable analog resonant multimode filter with LPF, HPF, BPF
LFO with Sine, Triangle, Square, Up Saw, Down Saw, Random and Sample-and-Hold to modulate Pitch, Filter and Amp
AD (Filter) + AR (Amp) envelopes (full ADSR control available via MIDI CC or software editor)
40 onboard controls and LED display
100 onboard presets
10 mode, 4-octave arpeggiator
Real-time and step edit 16-step sequencer with 20 automatable parameters
Onboard multi-touch 27-note chromatic and scale keyboard with 13 scales
Sync Delay audio effect and 5 performance effects
Self-tuning with auto-tune calibration
USB MIDI and 2.5 mm jack MIDI IN/OUT (cables included)
Audio In to daisy chain other audio devices with no need for a mixer
Mac/PC/iOS Editor
Complete MIDI implementation with all parameters and clock can be controlled via MIDI CC
Battery (4xAA Alkaline, Ni-Mh) or USB powered
Ultra-portable and lightweight
Designed and made in Italy

Specifications

Specs

UNO Synth Pro Specifications

First-class analog sound

3 discrete wave-morphing oscillators
PWM, sync, FM and ring modulation
Dual state variable filters with 24 modes
Original UNO Synth OTA filter
New SSI-based filter with self-oscillation
16-slot modulation matrix

Cutting-edge features

256 user-editable presets
12 studio-quality FX in 3 slots
Reverbs, Delays, Modulations
64-step sequencer with 84 parameters
10-mode onboard arpeggiator
USB / MIDI / CV / Gate in/out
Audio input to filters, FX or pass-through

For everyone

Available in two form factors
UNO Synth Pro
- Compact, stage-ready 37-key keyboard
- Fatar semi-weighted keybed with aftertouch
- Powered by included PSU or optional UNO Synth Power Bank
UNO Synth Pro Desktop
- Ultra-portable 32 capacitive-key tabletop
- Powered by USB or optional UNO Synth Power Bank

Dimensions

UNO Synth Pro
- Size (W x D x H): 55 x 30 x 7 cm, 21.65 x 11.8 x 2.75 in.
- Enclosure: Metal/plastic
- Weight: 5.8 kg, 12.8 lb
- Power: Power PSU
UNO Synth Pro Desktop
- Size (W x D x H): 33.3 x 15 x 5 cm, 13.11 x 5.91 x 1.96 in.
- Enclosure: Plastic
- Weight: 700 g, 1.54 lb
- Power: USB Power

Package includes

UNO Synth Pro
- UNO Synth Pro
- 1x Micro USB to USB Cable
- Power Supply Unit
UNO Synth Pro Desktop
- UNO Synth Pro Desktop
- 1x Micro USB to USB Cable

UNO Synth Pro Editor Compatibility

UNO Synth Pro Editor requires UNO Synth Pro with firmware version 2.0.0 or later.

Computers

64-bit application. Requires a 64 bit CPU and Operating System.

Mac® (64-bits)

Minimal: macOS 10.11 or later.

Windows® (64-bits)

Minimal: Windows 8 or later.

SKU: IKMT_IP-UNO-SYNTHPRO
Barcode: 930081003685
Brand: IK Multimedia
