• Up to 4 simultaneous Tone Models per preset (1 Amp and 1 Stomp per path)
• Hyper-realistic models of real amps, cabinets, and stompboxes, powered by AI.
• Built to last and endure the demands of both studio sessions and live performances, with
robust, roadworthy build quality.
• 70+ built-in effects derived from AmpliTube and custom designed processors, with many
more coming in future firmware updates.
• Versatile internal routing with up to 12 effect slots, featuring splitters and mixers to create
complex effect chains.
• Flexible workflow with three modes for different situations: Preset Mode, Scene Mode, and
Stomp Mode.
• Stereo FX loop that can be placed anywhere in the chain and split into two independent mono
FX loops.
• Ultra-low latency and high-performance processing for seamless, responsive playing.
• Store up to 1400 presets with 12 setlists, containing in 60 banks of 3 presets per bank.
• Streamlined, user-friendly interface and 5" high-resolution color touchscreen for precise and
intuitive control.
• 5 encoders for easy parameter adjustments on the fly while playing.
• Explore and load over 60,000+ Tone Models on ToneNET

Audio & Performance
    • Preset Capacity: Store up to 1,400 presets across 12 setlists (60 banks with 3 presets per bank).
    • Processing Power: Up to 4 simultaneous Tone Models per preset (1 Amp and 1 Stomp per path) and up to 12 effect slots per chain.
    • Built-in Effects & IRs: 70+ built-in effects (derived from AmpliTube and custom-designed processors), a Custom IR Loader module and VIR (Volumetric Impulse Response) technology.
    • Audio Converters: Ultra-low noise, 24-bit/192 kHz converters.
    • Frequency Response: 5 Hz–24 kHz.
    • Dynamic Range: Up to 123 dB dynamic range.
    • USB Audio Interface: Integrated 4-in / 2-out USB audio interface functionality with direct monitoring (Coming late September with a FW update).

Hardware & Interface

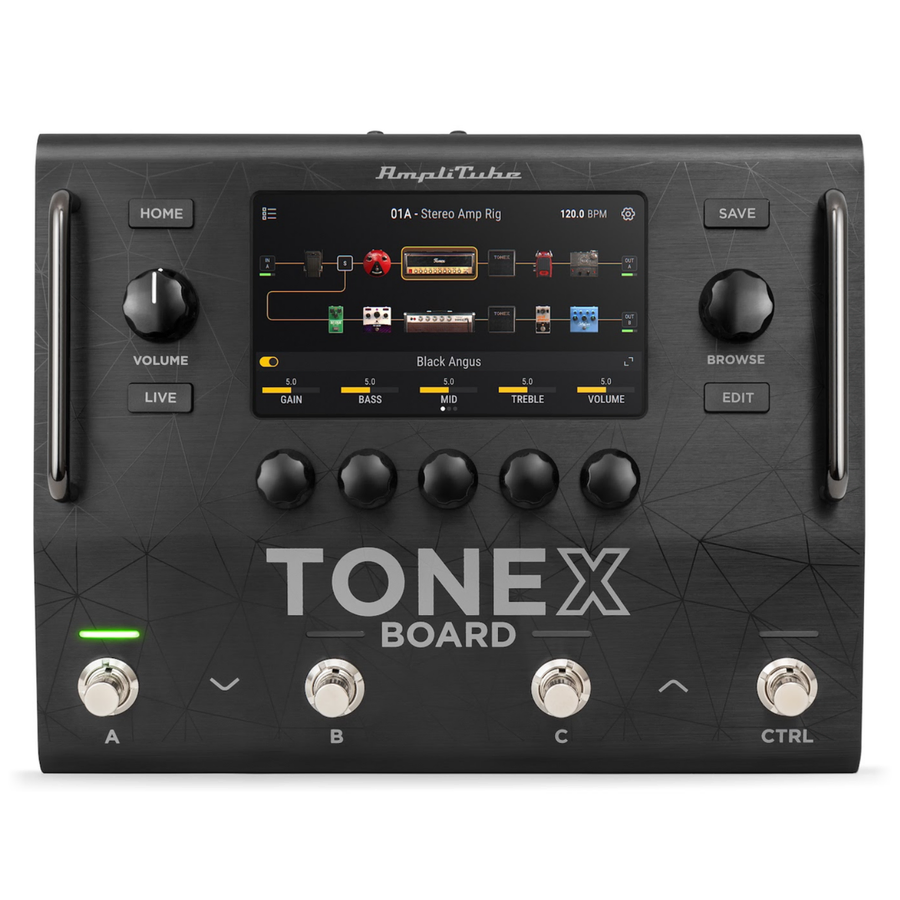

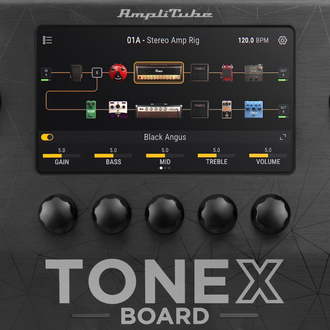

    • Display: 5" high-resolution color touchscreen.
    • Controls: 5 encoders for on-the-fly parameter adjustments and 4 footswitches with LED indicators.
    • Workflow Modes: 3 flexible modes (Preset Mode, Scene Mode, and Stomp Mode).

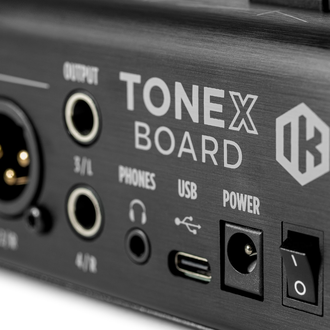

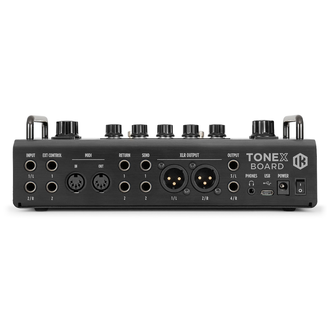

Connectivity
    • Input: Stereo input (accommodates guitar, bass, keyboards, synths, grooveboxes, etc.).
    • Main Outputs: Dual independent stereo outputs (2x XLR bilanced for 1/L & 2/R, 2x TRS for 3/L & 4/R) to route cabinet and non-cabinet signals separately.
    • FX Loop: Stereo FX Loop (1x stereo send/return or 2x independent mono send/return) placeable anywhere in the signal chain.
    • Headphone Output: 1x Headphone output.
    • MIDI: Full MIDI implementation via 5-pin DIN MIDI IN/OUT.
    • External Control: 2x Expression pedal / EXT Control inputs.
    • USB: USB-C connection for presets/tone models transfer, firmware updates, and audio interface (Coming late September with a FW update).

Size & Weight
    • Dimensions: 235 mm x 184 mm x 72 mm / 9.25” x 7.24” x 2.83”
    • Weight: 1.6 kg / 3.52 lbs

Package Content:
    • TONEX Board
    • USB-C connection cable
    • Power Supply Unit
    • Adhesive rubber feet

Included Software:
    • TONEX 2.0 MAX
    • AmpliTube 5 MAX
    • TONEX Board Editor
    • TONEX Modeler
