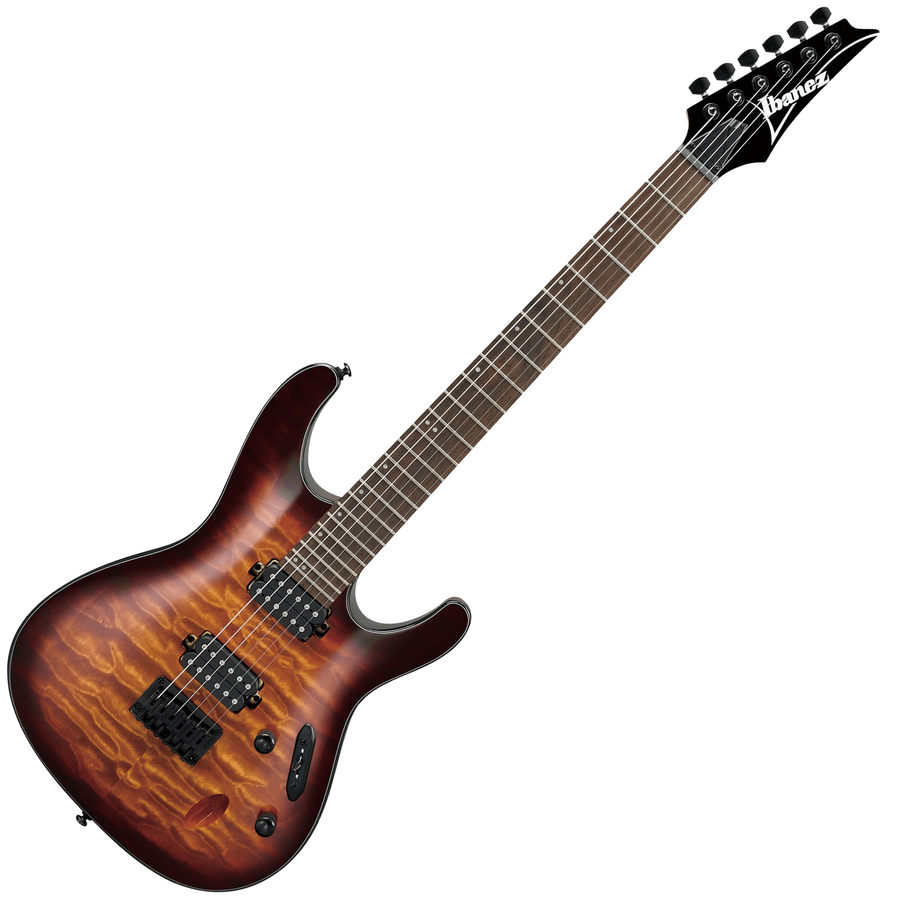

The cutting edge of Ibanez design, the S series continues to be a marvel of form and function. Its signature body shape - sculpted, lightweight, and mahogany - is stronger and more musically responsive than guitars weighing twice as much. The S series is still a rock 'n' roll version of a quick, graceful, and potentially lethal weapon.

Product Features

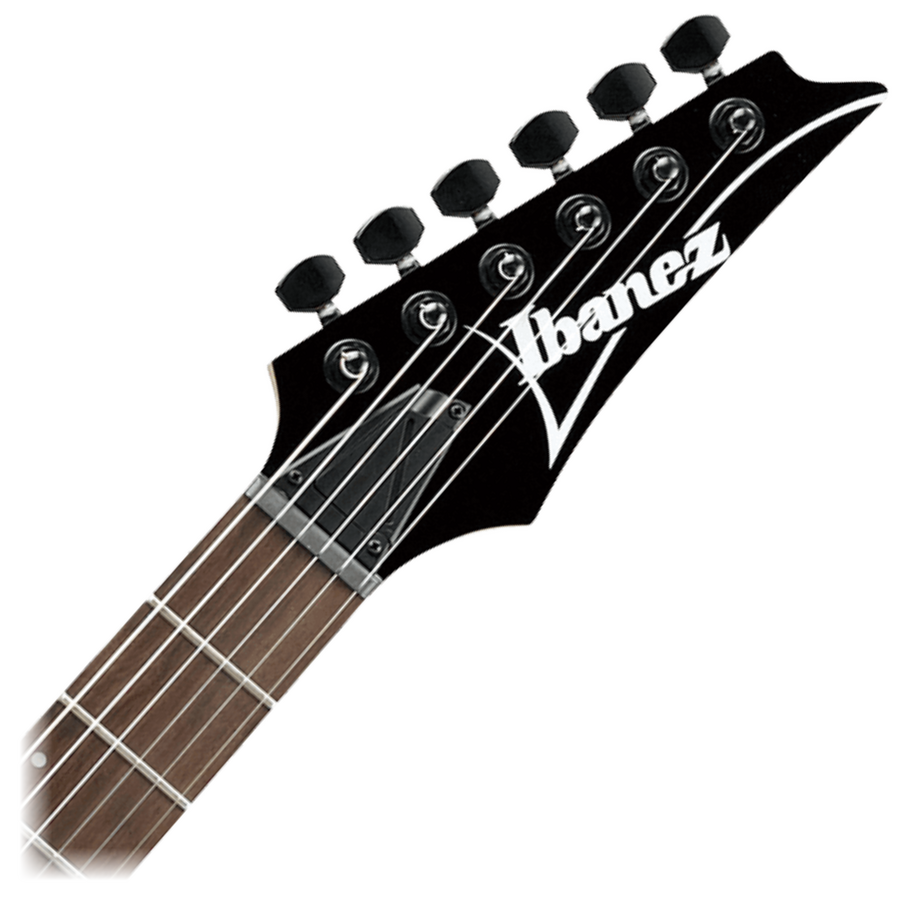

Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

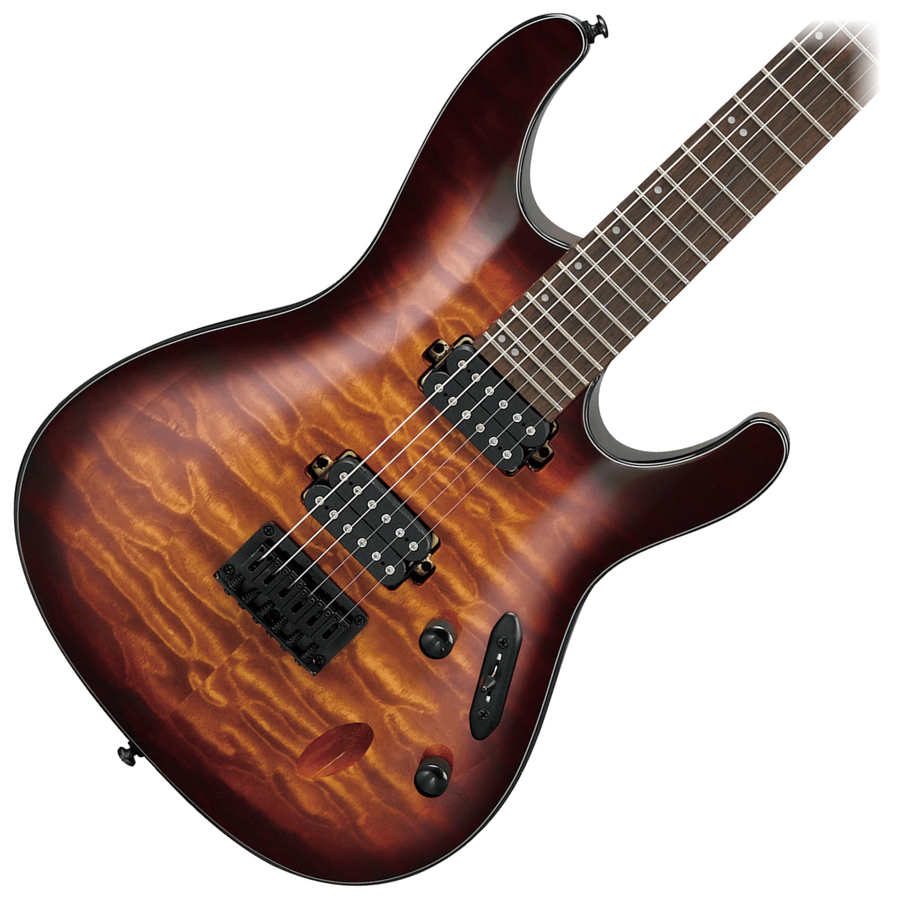

Quilted Maple top / Meranti body
The Quilted Maple top sonically enriches the response for picking. The Meranti body provides a scooped mid-ranged sweet tone.

Quantum H-H pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.

F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.

SPECIFICATIONS

•     neck type: Wizard IIIMaple neck
•     top/back/body: Quilted Maple topMeranti body
•     fretboard: Rosewood fretboardOff-set white dot inlay
•     fret: Jumbo frets
•     number of frets: 24
•     bridge: F106 bridge
•     string space: 10.5mm
•     neck pickup: Quantum (H) neck pickupPassive/Ceramic
•     bridge pickup: Quantum (H) bridge pickupPassive/Ceramic
•     factory tuning: 1E,2B,3G,4D,5A,6E
•     strings: D'Addario® EXL110
•     string gauge: .010/.013/.017/.026/.036/.046
•     hardware color: Black

NECK DIMENSIONS

        Scale : 648mm/25.5"
        a : Width 43mm at NUT
        b : Width 58mm at 24F
        c : Thickness 19mm at 1F
        d : Thickness 21mm at 12F
        Radius : 400mmR

DIMENSIONS
