Product Features

Comfort Grip Nyatoh neck
The Comfort Grip Maple Neck contour provides superior playability.

Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.

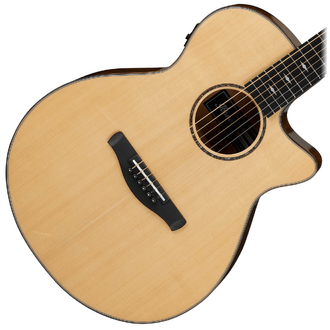

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

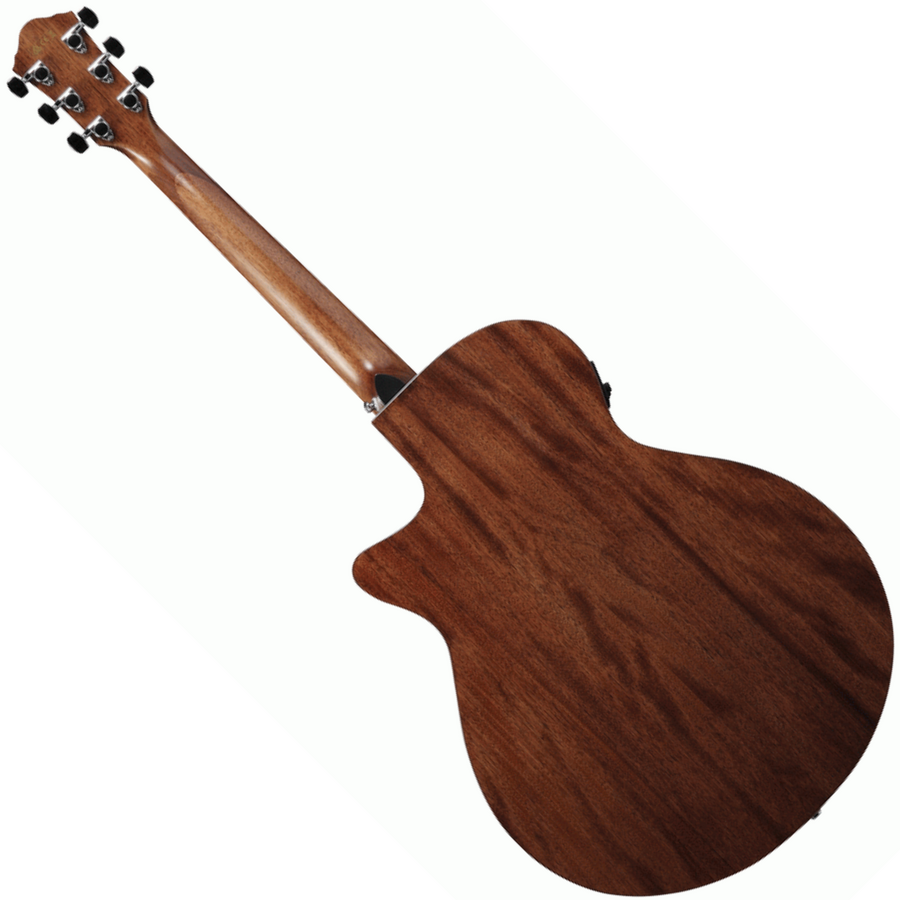

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez T-bar II Undersaddle pickup
The Ibanez T-bar II under-saddle pickup reduces noise and provides wide range of natural piezo-style sound.

Ibanez AEQ-TTS preamp w/Onboard tuner
The small and simple preamp offers two controls: volume and shape. A natural acoustic sound is found in the center position on the shape knob and allows players to easily adjust from low, fat and powerful tones to a bright and crisp sound while using only one control. A new, easy-to-read onboard tuner with LCD (liquid crystal display) is located on the preamp.

Ovangkol Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

Specifications

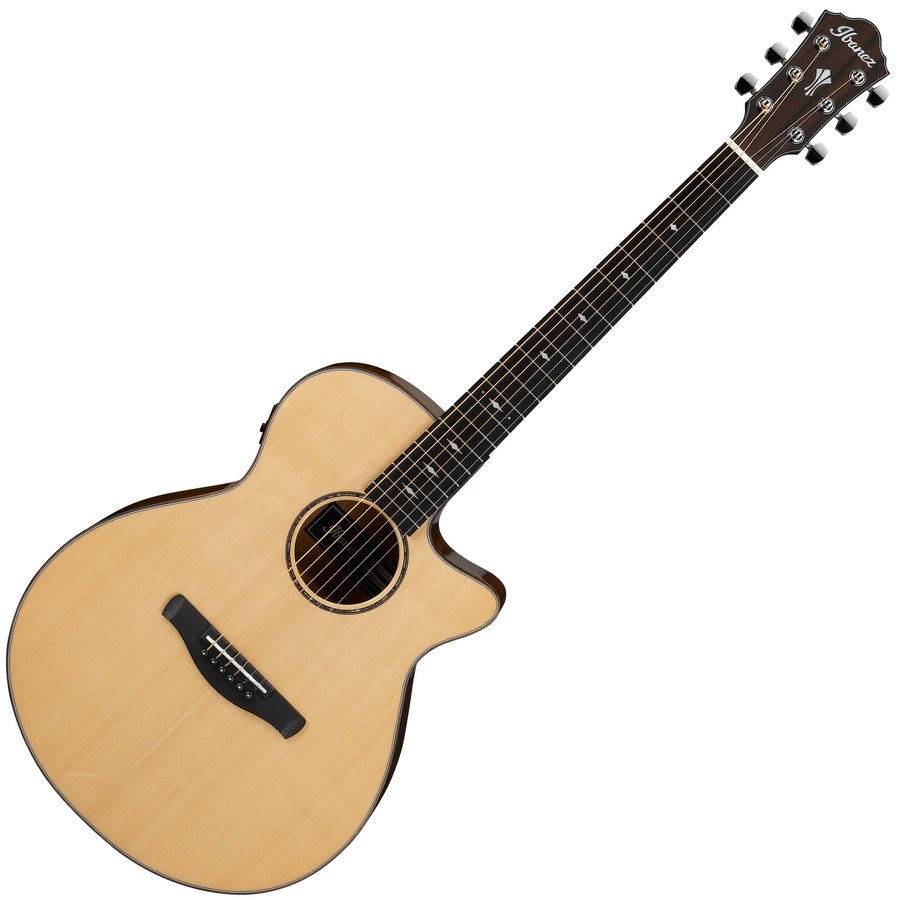

•     body shape AEG body
•     top Solid Sitka Spruce top
•     back & sides Okoume back & Okoume sides
•     neck Comfort GripNyatoh neck
•     fretboard Ovangkol fretboard
•     bridge Ovangkol scalloped bridge
•     body binding Pau Ferro body binding
•     inlay Specially designed inlay
•     soundhole rosette Abalone and Wooden

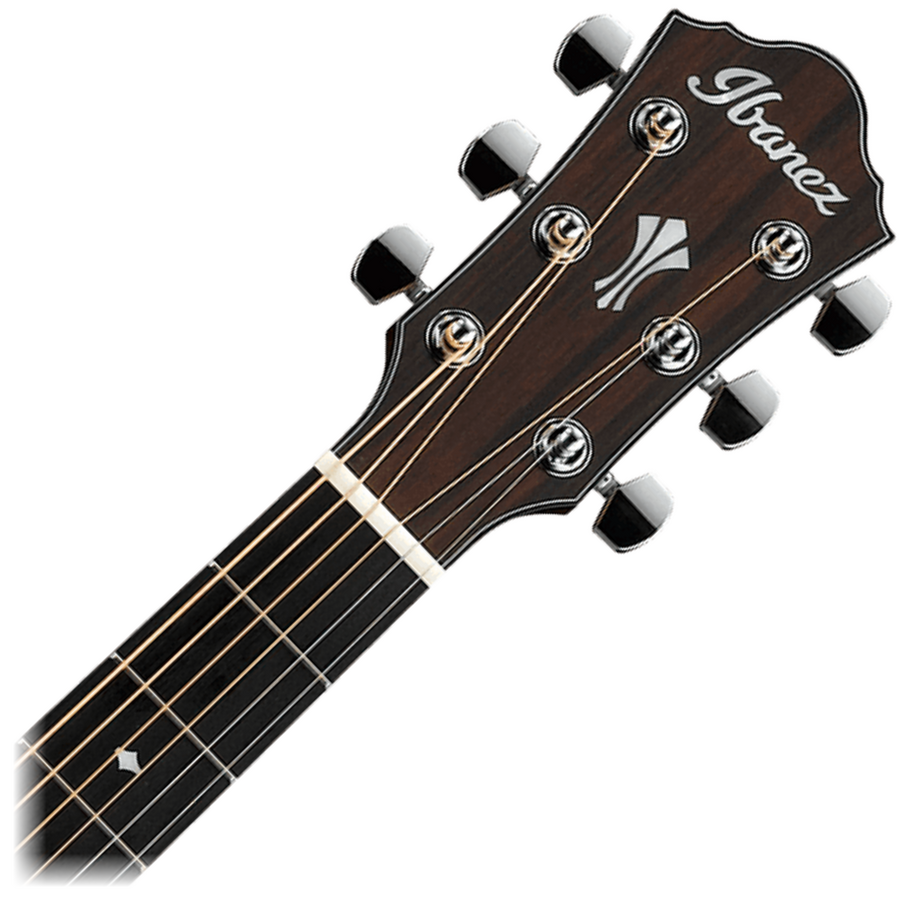

•     tuning machine Chrome Die-cast tuners (18:1 gear ratio)
•     nut material Bone
•     number of frets 20
•     saddle material Compensated Bone
•     bridge pins Ibanez Advantage™
•     strings D'Addario® XTAPB1253
•     string gauge .012/.016/.024/.032/.042/.053
•     string space 11mm
•     factory tuning 1E,2B,3G,4D,5A,6E
•     pickup Ibanez T-bar II Undersaddle
•     preamp Ibanez AEQ-TTS preamp w/Onboard tuner
•     output jack 1/4" output
•     battery 9V x1

NECK DIMENSIONS

        Scale : 634mm/25"
        a : Width 43mm at NUT
        b : Width 55mm at 14F
        c : Thickness 20mm at 1F
        d : Thickness 21mm at 7F
        Radius : 400mmR

DIMENSIONS

Height - 102cm
Width - 38cm
Length - 9.5cm
Weight - 1.8kg
