SKU: MONFTNXAU
UPC:
Linked to MusiPos
RRP: $3399.99
0 - Primary Warehouse
Chat to us or call 5444 8889
Find out more
RedNet TNX delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz out of the box, expandable to 256x256 channels at 24-bit/96kHz with Dante Readyâ„¢. Designed for recording, post-production, and broadcast, it integrates seamlessly with Dolby Atmos, and supports AES67, Dante Domain Manager, and SMPTE ST 2110 for professional use. With effortless setup, built-in network redundancy, and simple centralised control via RedNet Control, it offers reliability and flexibility for studios, live broadcasts, and on-location productions.
Features
Powerful, portable audio workflows
128x128 channels at 24-bit/192kHz out of the box, with ultra-low round-trip latency for any Windows or Mac system with an available Thunderbolt™ port — ideal for large recording sessions and post-production work using Dolby Atmos and other immersive formats.
Seamless Thunderboltâ„¢ connectivity
RedNet TNX connects to any compatible computer with a single Thunderboltâ„¢ cable. Easily swap between users and systems, perfect for shared workspaces.
Upgradable with Dante Readyâ„¢
RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24-bit/96 kHz with Dante Readyâ„¢.
Dual Ethernet RJ-45 connections
Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity and the option to have a secondary network in mission-critical situations.
Broadcast-Ready with support for the latest AoIP standards
RedNet TNX is reliable, adaptable, and supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required).
Windows and macOS compatible
RedNet TNX works with Thunderboltâ„¢-equipped laptop or desktop computers running Windows (Intel) or macOS (Intel and Apple Silicon).
Simple integrated network control
RedNet TNX features an integrated network interface, allowing for network control via a single-cable connection.
Integrate within your setup
Each of the two Thunderboltâ„¢ ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.
Award-winning support
Purchase with confidence. RedNet TNX is backed by Focusrite’s three-year warranty and award-winning 24/7/365 technical support.
Specifications
Simultaneous Inputs & Outputs
128x128 (all sample rates) 256x256 (up to 96kHz) with a paid upgrade
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
Multi-client ASIO and WDM (Windows) CoreAudio (Mac)

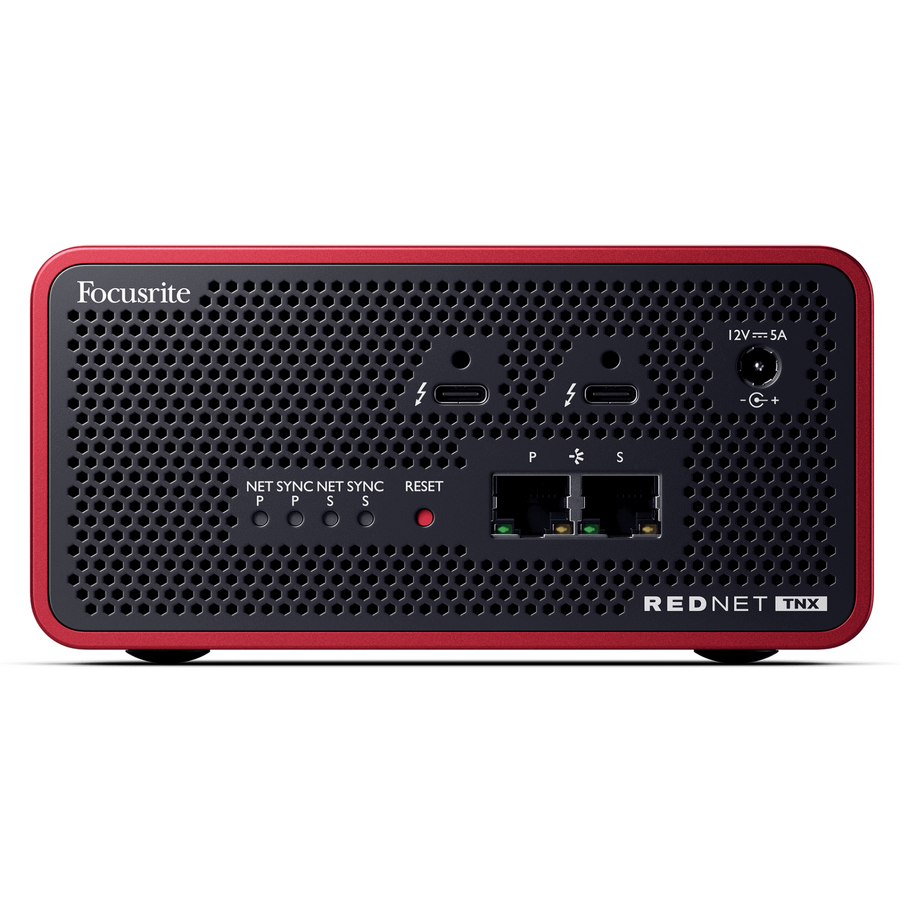

Rear Panel
2x Thunderboltâ„¢ 3 ports (Provide 15W of power) 2 x Sonnet ThunderLokâ„¢ 2x Network Active LED indicators (Primary/Secondary) 2x Network Lock LED indicators (Primary/Secondary) 1x DC power inlet 1x Factory Reset button
Heat Performance
Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
Exposed threads for rack shelf/cradle mounting
Dimensions
Width144mm Depth212.4mm Height71.6mm Weight1.49kg
Power requirements
Powered by external DC power supply
What's in the box?
RedNet TNX unit 2m Thunderboltâ„¢ 3 cable 2m cat6A Ethernet cable External DC power supply and cable
