Fender Quantum LT 16 is the flagship LT interface, offering eight pristine MAX-HD mic preamps, fourteen total analog line inputs for easy integration of external mic preamps, synths, mixers, or other line-level devices, standalone 8-channel mic-pre functionality, analog synth integration via DC-coupled outputs, MIDI connectivity, and included Fender Studio Pro — the ultimate hub for professional and hybrid studios.
Overview:
The Fender Quantum LT 16 is the ultimate interface in the LT series, built for project studios, multi-instrument setups, and electronic musicians who demand maximum flexibility. With eight MAX-HD mic preamps offering a massive 75 dB of gain — the most in its class — LT 16 captures pristine sound from large ensembles, drum kits, or multi-mic sessions. Fender-designed instrument inputs and professional-grade converters ensure guitars, basses, and all your sources sound natural and dynamic.

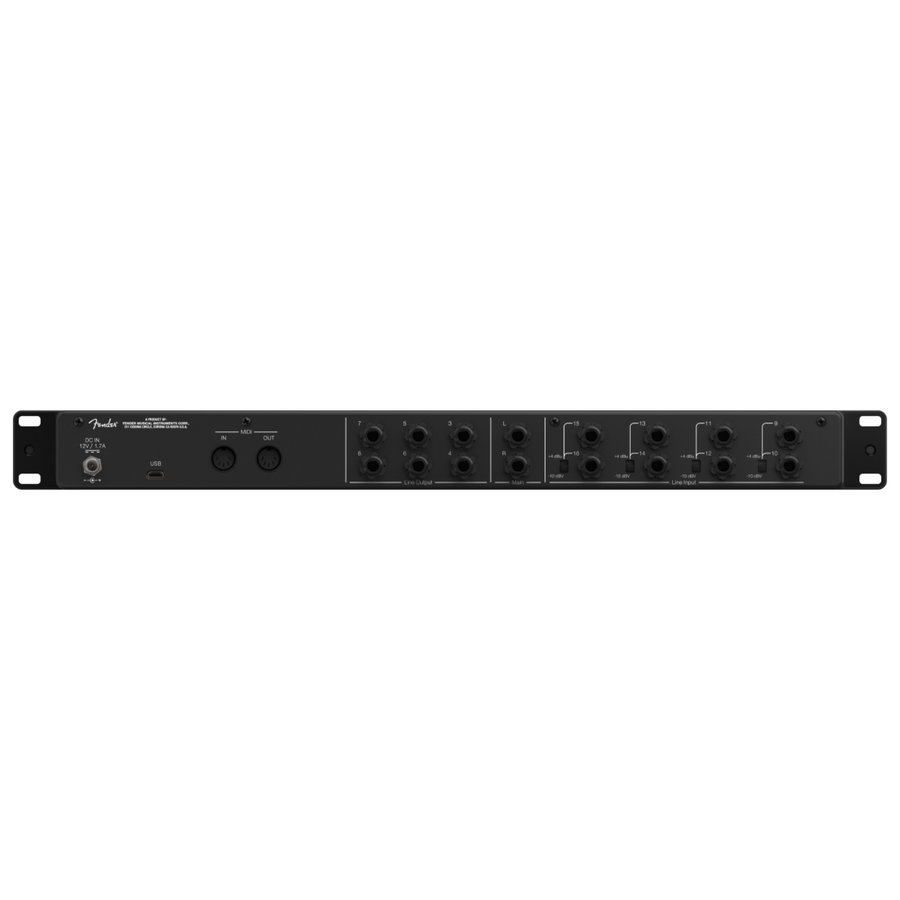

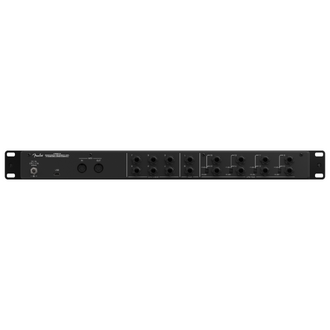

In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices — expanding your studio’s sonic palette without complicating your setup.
Fender Quantum LT’s blazing-fast, custom low-latency drivers provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone “Mic Pre Mode” transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.
Electronics Inputs: Sixteen - (Two XLR Combo Mic/Inst, Six XLR Combo Mic/Line, Eight TRS Line) Headphone Jack: 1/4" Stereo Line Out: Eight - 1/4" TRS Balanced Connectivity: USB-C® Voltage: 120V Phantom Power: +48 VDC
Performance Digital Audio Bit Depth: 24 Bit Digital Audio Dynamic Range: 115 dB
Inputs Instrument Input Connection Type: 1/4" TS Instrument Inputs Dynamic Range: 114 dB Instrument Inputs Frequency Response: 20 Hz to 20 kHz Instrument Inputs Maximum Level: +22 dBu Line Input Connection Type: 1/4" TRS Female Line Inputs Dynamic Range: 115 dB (+4 dBu) / 113 dB (-10 dBV) Line Inputs Frequency Response: 20 Hz to 20 kHz Line Inputs Maximum Level: +18 dBu Line Inputs Total Harmonic Distortion: 0.001 % (+4 dBu) / 0.0009 % (-10 dBV) Microphone Input Connection Type: XLR Female (Combo), Balanced Microphone Preamp Dynamic Range: 115 dB Microphone Preamp Equivalent Input Noise: -128.6 dBu Microphone Preamp Frequency Response: 20 Hz to 20 kHz Microphone Preamp Gain Control Range: 75 dB Microphone Preamp Maximum Input Level: +18 dBu Microphone Preamp Total Harmonic Distortion: 0.001 %
Outputs Headphone Outputs Connection Type Headphone Outputs Dynamic Range: 114 dB Headphone Outputs Frequency Response: 20 Hz to 20 kHz Headphone Outputs Maximum Output: 142 mW/Channel (60Ω Load) Headphone Outputs Total Harmonic Distortion: 0.01 % Line Outputs Connection Type: 1/4" TRS Female Line Outputs Maximum Output Level: +18 dBu Main And Line Outputs Dynamic Range: 115 dB Main And Line Outputs Frequency Response: 20 Hz to 20 kHz Main And Line Outputs Maximum Level: +18 dBu Main And Line Outputs Total Harmonic Distortion: 0.001 % Main Outputs Connection Type: 1/4" TRS Female
Hardware Audio Controls MIDI IO 5-Pin Female DIN
Measurements Shipping Dimensions 4.45x12.70x48.26 CM Shipping Weight 2.18 KG Shipping Length 48.26 CM Shipping Height 4.45 CM Shipping Width 12.70 CM Product Depth 5" (127 mm)
- 16 x 8 USB-C Interface – Ultra-low-latency custom drivers - Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions - A Total of 14 Line Inputs – for easy connection of mic pres, synths, mixers, and other line-level devices: - 6 front panel XLR/TRS (combo jacks 3–8) - 8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation - Dual Fender-Designed Instrument Inputs – Optimized for guitars, basses, and other instruments - Balanced TRS Outputs & Headphone Monitoring – Professional-quality, flexible monitoring - Loopback Audio – Streaming, podcasting, and mix routing - Standalone Mixer Mode & Mic Pre Mode – Analog mixing or 8-channel mic preamp operation - DC-Coupled Outputs – Integrate modular synths and analog gear - 5-Pin MIDI I/O – Hardware integration without external MIDI interface - Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins - Built-in MyFender Access – Quick setup, registration, and support
