SKU: FES-QUANTUM-HD2
UPC: 673454015045
Linked to MusiPos
RRP: $999
Chat to us or call 5444 8889
Find out more

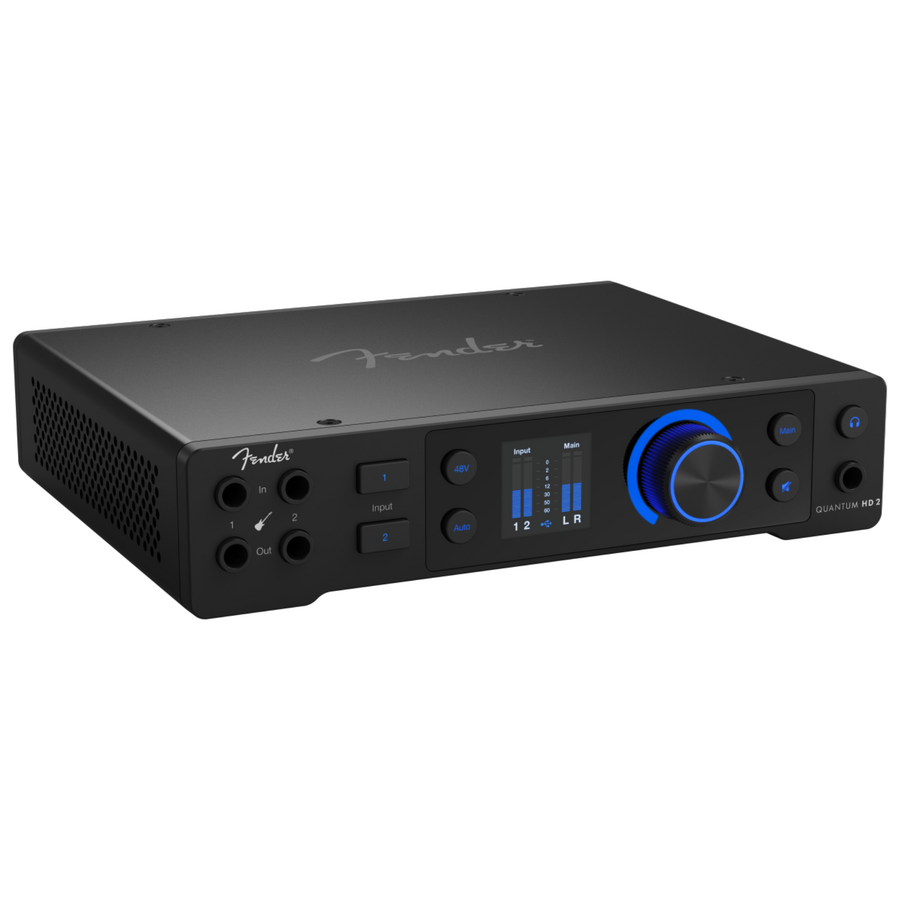

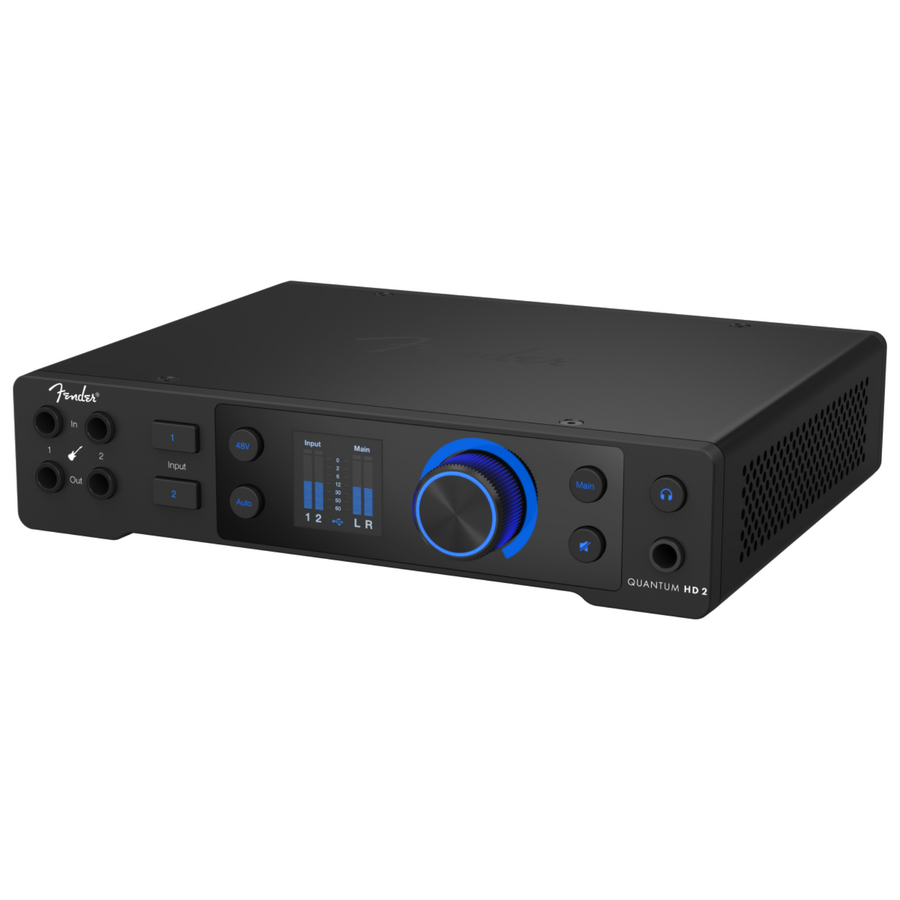

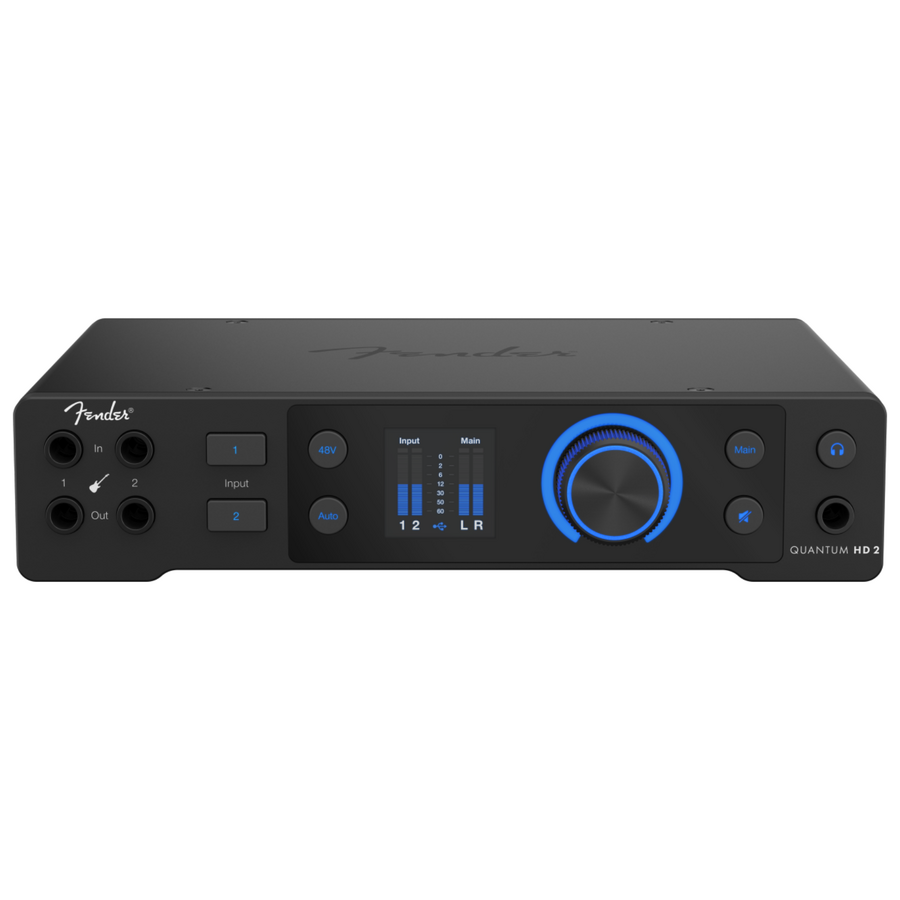

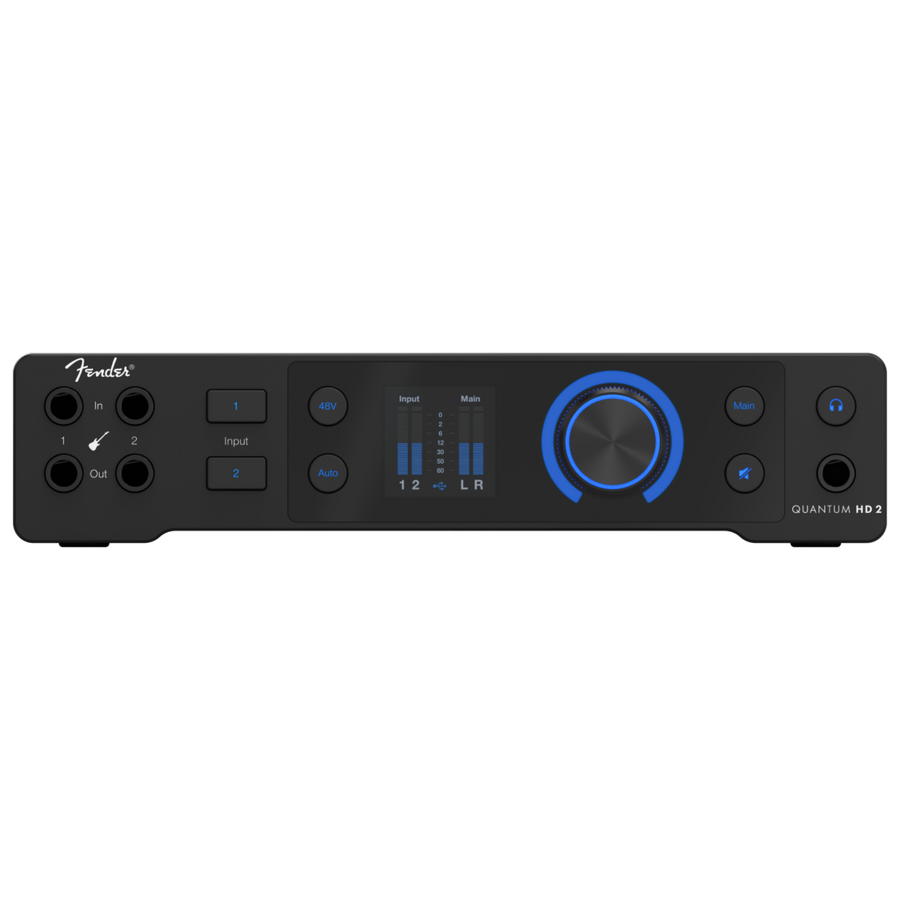

The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.
Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.
Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O.
Electronics Headphone Jack: One - 1/4" TRS Female Stereo Connectivity: USB-C® Voltage: 240V AUS Phantom Power: +48 VDC
Performance Digital Audio Bit Depth: 32-bit Digital Audio Dynamic Range: 124 dB
Inputs Instrument Inputs Dynamic Range: 111 dB (A-Weighted, Minimum Gain) Instrument Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) Instrument Inputs Gain Range: 75 dB Instrument Inputs Maximum Level: +21 dBu (Unbalanced, Minimum Gain) Line Inputs Dynamic Range: 118 dB (A-Weighted, Minimum Gain) Line Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) Line Inputs Gain Range: ± 10 dB Line Inputs Impedance: 10K Ohms Line Inputs Maximum Level: +18 dBu (Balanced, Minimum Gain) Line Inputs Total Harmonic Distortion: 0.001% (1 kHz, Minimum Gain) Microphone Input Connection Type: XLR Female (Combo), Balanced Microphone Preamp Dynamic Range: 116 dB (A-Weighted, Minimum Gain) Microphone Preamp Equivalent Input Noise: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted) Microphone Preamp Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) Microphone Preamp Gain Control Range: 75 dB Microphone Preamp Input Impedance: 1600 Ohms Microphone Preamp Maximum Input Level: +18 dBu (Balanced, Minimum Gain) Microphone Preamp Total Harmonic Distortion: 0.002% (1 kHz, Minimum Gain)
Outputs Headphone Outputs Connection Type Headphone Outputs Dynamic Range: 118 dB (A-Weighted) Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz) Headphone Outputs Impedance Working Range: 33 Ohms Headphone Outputs Maximum Output: 11 dBu (50 Ohms) Headphone Outputs Total Harmonic Distortion: 0.001% (1 kHz) Line Outputs Connection Type: 1/4" TRS Female Main And Line Outputs Dynamic Range: 123 dB (A-Weighted) Main And Line Outputs Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) Main And Line Outputs Maximum Level: +18 dBu (Balanced) Main And Line Outputs Output Impedance: 51 Ohms Main And Line Outputs Total Harmonic Distortion: 0.001% (1 kHz, +4 dBu) Main Outputs Connection Type: 1/4" TRS Female
Hardware MIDI IO 5-Pin Female DIN
Measurements Shipping Dimensions 12.70x25.40x30.48 CM Shipping Weight 2.77 KG Shipping Length 30.48 CM Shipping Height 12.70 CM Shipping Width 25.40 CM Product Depth 7.5" (191 mm)
- Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps - 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters - Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O. - Front-facing Fender instrument inputs optimized for guitar and bass - Auto Gain button for instant, hassle-free recording levels - Re-amp outputs for creative tone exploration with amps and pedals - DSP monitor mixer and loopback routing for streaming and monitoring - Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app - Professional software included: Fender Studio Pro perpetual license
Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.
Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:
a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply (b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time (c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted; (d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.
We ask that you research parts carefully before buying. Purchase of any non-licenced part as a replacement spare part is at your own risk. Some branded replacement parts also require professional installation to fit correctly. If in doubt we will be happy to advise further and confirm suitability before purchase.
Click and collect: is available if the product is available in store.
Means the item is physically in the shop and can be bought and shipped or collected at our store.
This item is currently not available physically in our store but can be ordered in from a supplier
Item is available from our supplier. This is an item we do not have available in the store. Please note that there are longer delivery times if you decide to purchase.
Item is available and ready to ship from our store.
Item is in high demand
