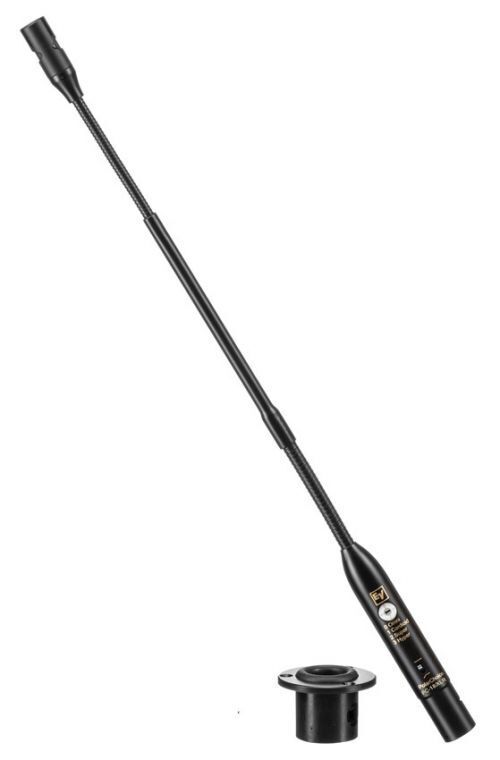

The Electro-Voice PolarChoice PC-18/XLR 18" Miniature Multi-Pattern Gooseneck Podium Microphone is highly-shielded from RFI/GSM. Multi-pattern, miniature gooseneck podium microphones are designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance.

The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver". With three directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the front mounted rotary control. Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary.

The PolarChoice PC-18/XLR is acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use. The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone.

The electronics housing's 3/4-inch diameter base is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The housing is machined brass for ruggedness and superior EMI/RFI attenuation. The PolarChoice PC-18/XLR is designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).

Specifications:

• Generating Element: Dual condenser, back electrets
• Frequency Response: 50Hz to 20000Hz
• Polar Patterns: Omni directional, Cardioid, Supercardioid, Hypercardioid
• Output Connectors: 3-pin XLR Male
• Sensitivity: Open Circuit Voltage, 1kHz: 5.6mV/Pascal
• Clipping Level (1% THD): > 127 dB SPL
• Equivalent Noise: < 26 dB SPL "A" weighted (0 dB=20 micropascals)
• Dynamic Range: > 101 dB
• Output Impedance, 1 kHz: 200 Ohms
• Power Requirements: Phantom, 12-52VDC
• Current Consumption: < 5mA with P48 supply
• Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
• Environmental Conditions:
  Relative Humidity 0-50%: -29 deg. C to 74 deg. C (-20 deg. F to 165 deg. F)
  Relative Humidity 0 to 95%: -29 deg. C to 57 deg. C (-20 deg. F to 135 deg. F)
• Dimensions:
  Gooseneck Length: 460.4mm (18.12")
  Head Diameter: 14.6mm (0.57")
  Gooseneck Diameter: 6.4/7.9mm (0.25/0.31")
  Connector Diameter: 19mm (0.74")
• Weight: 178g / 6.28oz
