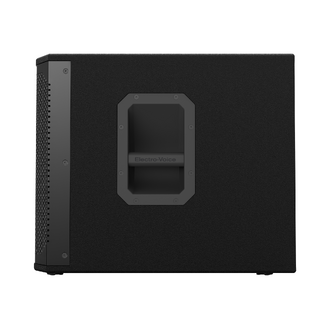

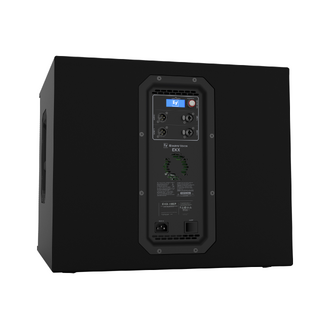

Electro Voice EKX-15SP Powered 1300W, 15” Subwoofer

Edit Product

SKU: EVLEKX-15SP

UPC: 800549783675

Linked to MusiPos

RRP: $2666.4

Stock:
0 — Secondary Warehouse

tik1 | tik2 | tik3

Electro Voice EKX-15SP Powered 1300W, 15” Subwoofer 40-150HZ

Description

Thank you for choosing an Electro-Voice powered loudspeaker system. Please take time to consult the manual to understand all the features built into your EV system and fully utilize its performance capabilities.The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12-inch and 15-inch two-way models and 15-inch and 18-inch subwoofers.

EV-engineered components, Signal Synchronized Transducers (SST) waveguide design, and Class D amplifiers (up to 1500 W) coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design — with robust wood enclosures and durable EVCoat finish — ensures that EKX speakers look as great as they sound.

Powered EKX models feature high-efficiency Class-D power amplifiers (up to 1500 W) with integrated QuickSmartDSP, and deliver up to 134 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer / 15-inch EVS-15M woofer, each coupled with a DH-1M 1-inch titanium compression driver; 15-inch EVS-15C subwoofer / 18-inch EVS-18C subwoofer).

The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by multiple onboard sensors) which ensures superior performance and reliability indemanding environmental conditions.

EKX powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range only), aluminum pole-mounts, and all-metal handles.

Features

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.

Specifications

Frequency Response (-3 dB)	45 Hz - 150 Hz¹
Frequency Range (-10 dB)	40 Hz - 180 Hz¹
Maximum SPL	133 dB peak²
Power Rating	1300 W
LF Transducer	EVS-15C 381 mm (15 in)
Low Pass Frequency	Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors	(2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure	15 mm plywood with EVCoat
Grille	18 AWG steel with powdercoat
Dimensions (H x W x D)	455 in x 530 mm x 551 mm (18 in x 21 in x 22 in)
Net Weight	26.2 kg (57.7 lb)
Shipping Weight	32.6 kg (71.8 lb)
Power Consumption	1.8 A³

SKU: EVLEKX-15SP
Model #: EVL-EKX-15SP
Barcode: 930077003503
Brand: Electro-Voice
