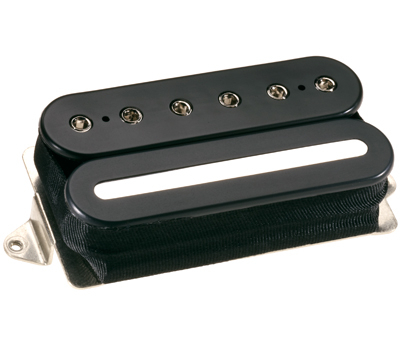

DiMarzio DP207FB Drop Sonic Humbucker Pickup F-Spaced Black

Edit Product

SKU: DP207FB

UPC: 663334001794

Linked to MusiPos

RRP: $219

Stock:

tik1 | tik2 | tik3

Description

DiMarzio DP207FB Drop Sonic Humbucker Pickup F-Spaced Black

Our first heavy humbucker of the 21st century, the D Sonic™ is a high-output bridge humbucker designed for the extended low end and heavy chords that dropped tuning delivers; with serious treble response for single-note solos and standard tuning. The D Sonic™ is more than just a one-sound pickup, too. In addition to the standard series humbucking sound, our patented design utilizes 4-conductor wiring to access two different single-coil sounds plus parallel humbucking mode, for three additional sounds that are distinctive and versatile.

F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.

Recommended For

Bridge position in solid body guitars.

Tech Talk

Those of you familiar with DiMarzio® history will note the visual resemblance to our old MegaDrive™ pickup, but the design is completely different. Installation direction makes a noticeable difference in the sound, particularly with overdriven amps. With the solid bar toward the bridge, the sound is a little brighter and better-defined, and this is the direction we recommend for heavy strings and low tunings. With the adjustable pole pieces toward the bridge, the sound is warmer and a touch louder, and we think this works best for standard tuning and more solo-oriented playing. Each coil has a unique tonal character, so the two split sounds are different, and parallel humbucking produces a third clean and bright sound.

Download Installation Instructions
Find the right wiring diagram for your guitar

Specs

Wiring: 4 Conductor
Magnet: Ceramic
Output mV: 390
DC Resistance: 11.96 Kohm
Year of Introduction: 2003
Patent: 4,501,185 & 5,908,998

Pickup Dimensions

Tone Guide

Treble: 5.5

Mid: 6.5

Bass: 6.5

Specifications

SKU: DP207FB
Barcode: 930004009878
Brand: DiMarzio
