DiMarzio DP192FB Air Zone Humbucker Pickup F-Spaced Black DP192FB $ 149 $195.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

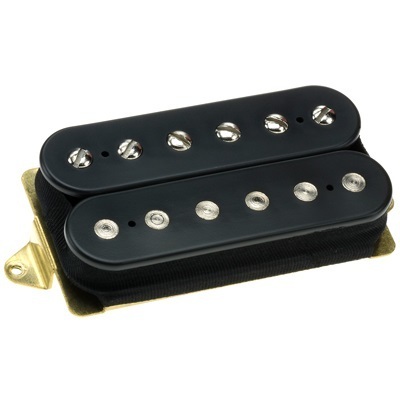

DiMarzio DP192FB Air Zone Humbucker Pickup F-Spaced Black

The best way to describe the Air Zone™ is to say it’s a vintage version of The Tone Zone®. It’s got the same low string-pull as our other Airbuckers™ for singing sustain, plus it has the big bass response and cool harmonics of The Tone Zone®, with extra sensitivity and control. It’s a great match for very hot amps, allowing the player to take full advantage of massive preamp gain without turning the sound to mud or fuzzy noise. It’s also a great neck pickup for jazz players who need to get the hollow-body arch top sound from a solid body, and it offers exceptionally good split and series-parallel capability.

F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.

Recommended For

Bridge position primarily (see Tech Talk for neck position application) in solid body and semi-hollow body guitars.

Tech Talk

Ultra-fat PAF® sound with more output. The dynamic range from soft to hard picking is very wide, and the combination of dual-resonance coils with the Airbucker™ magnetic field allows sustained notes to hang on to harmonic overtones longer, instead of becoming muddy as they fade. Will also work as a very warm, full neck pickup for jazz sound, and combine with The Tone Zone®, Super Distortion® and Super 3™ in bridge position.

Download Installation Instructions
Find the right wiring diagram for your guitar

Specs

Wiring: 4 Conductor
Magnet: Alnico 5
Output mV: 323
DC Resistance: 17.49 Kohm
Year of Introduction: 1995
Patent: 4,501,185 & 5,399,802

Pickup Dimensions

Tone Guide

Treble: 5.0

Mid: 8.5

Bass: 8.5
