dB Technologies VIO X15, 900-Watt 2-Way Active Speaker Bin

Edit Product

SKU: VIO-X15

UPC:

Not to MusiPos

RRP: $5157

Stock:

tik1 | tik2 | tik3

dB Technologies VIO X15, 900-Watt 2-Way Active Speaker Bin

Description

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.

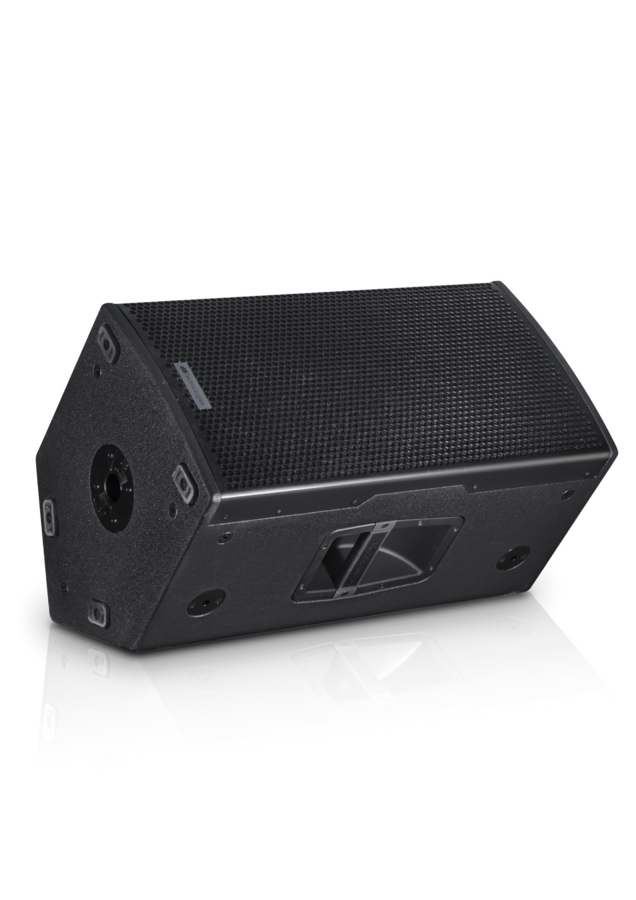

The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets.

All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).

Specifications

VIO X10

Features

• Neodymium components

• 900W RMS

• Advanced DSP featuring Linear

Phase FIR Filters

• Fully networkable via Aurora Net

• On board HPF and EQ presets

• Multifunctional design

Speaker Type 2 Way Active Loudspeaker

Usable bandwidth [-10dB] 73 - 21.400 Hz

Frequency Response [-6dB] 82 - 20.000 Hz

Max SPL 130 dB

HF 1x 1”

Voice Coil HF 1.75”

LF 1x 10”

Voice Coil LF 2.5” Neodymium

Directivity (HxV) 90° x 40°

Horn Rotatable Horn

Amplifier 900 W RMS Class-D Digipro® G3

Cooling Convection

Power Supply Auto-range SMPS

Controller DSP 28/56 bit

AD/DA Converter 24 bit/48 kHz

Limiter Peak, RMS, Thermal

Processing FIR Linear Phase Filters

Signal Input 1x XLR balanced, 1x RJ45 Link (RDNet)

1x USB Data Service

Signal Output 1x XLR balanced, 1x RJ45 Link (RDNet)

Power Socket 1x PowerCON TRUE1 In

1x PowerCON TRUE1 Out

Controls 1x Rotary Encoder (8x EQ, HPF presets)

1x Input sensitivity potentiometer

1x Mic / line switch

Housing Wooden Cabinet, Polyurea painting

Handles 1x (top)

Wedge Angle Monitor use 50°

Rigging points 12x M10 Thread + 4x Fast lock pins

Pole Mount Ø36 mm

Width x Height x Depth 280 x 550 x 375 mm

(11.02 x 21.65 x 14.76 in)

Weight 16.6 kg (36.59 lbs)

SKU: VIO-X15
Model #: VIO X15
Barcode: 930141010234
Brand: dB Technologies
