Description

  • Flyable single 15″ subwoofer
  • 900W RMS SMPS AMPLIFIER
  • Horizontal or vertical use

Flyable Single 15″ Subwoofer

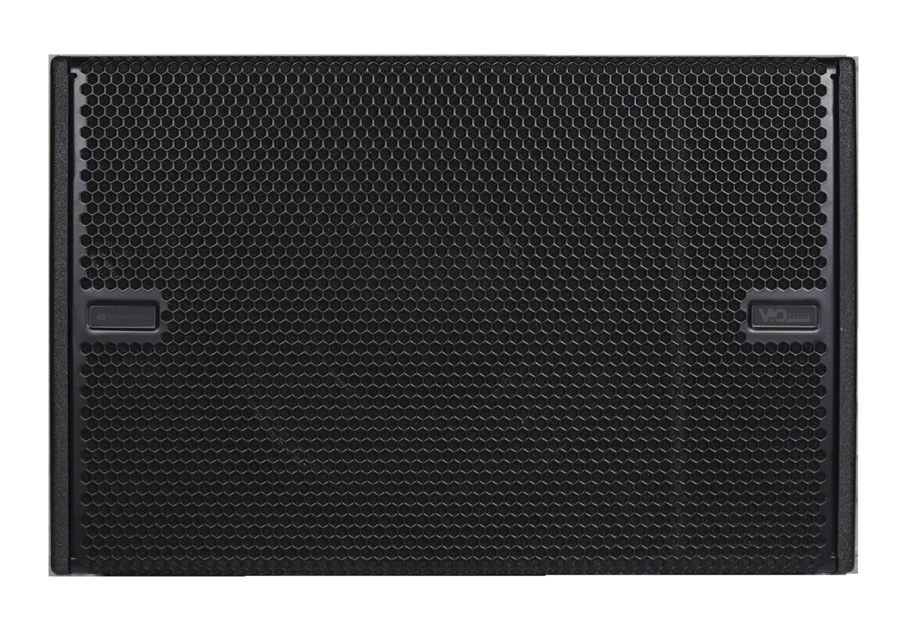

VIO S115 is a self-powered, flyable, single 15″ subwoofer, with a standard frontal bass reflex acoustic configuration. It is definitely inspired by dBTechnologies popular VIO S118R subwoofer, with the advantages of being flyable.

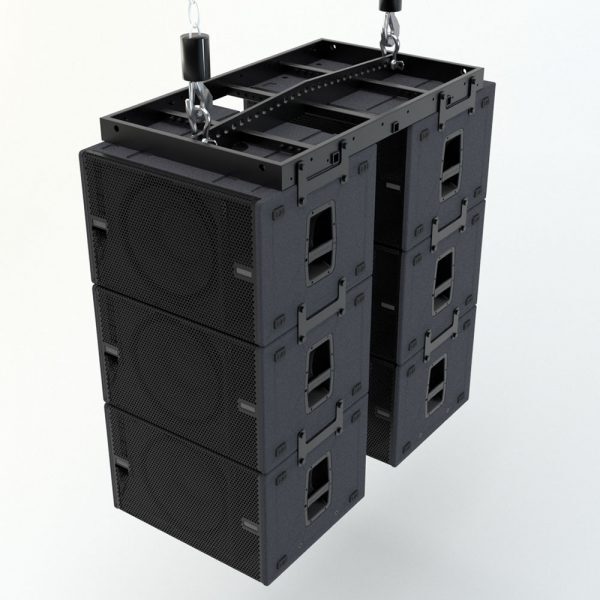

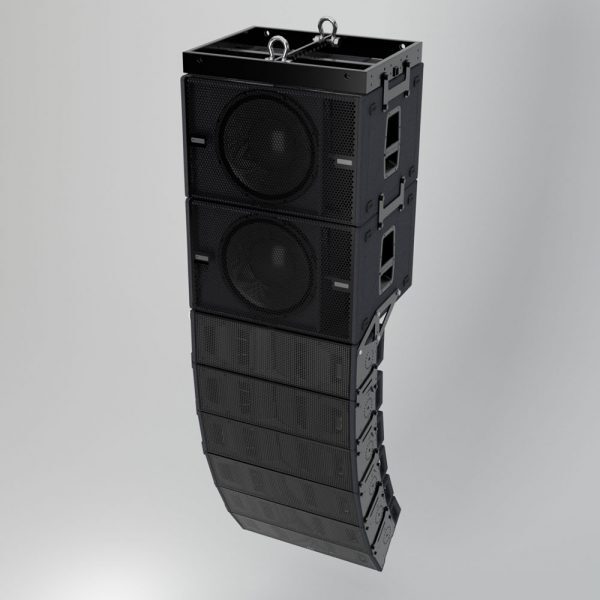

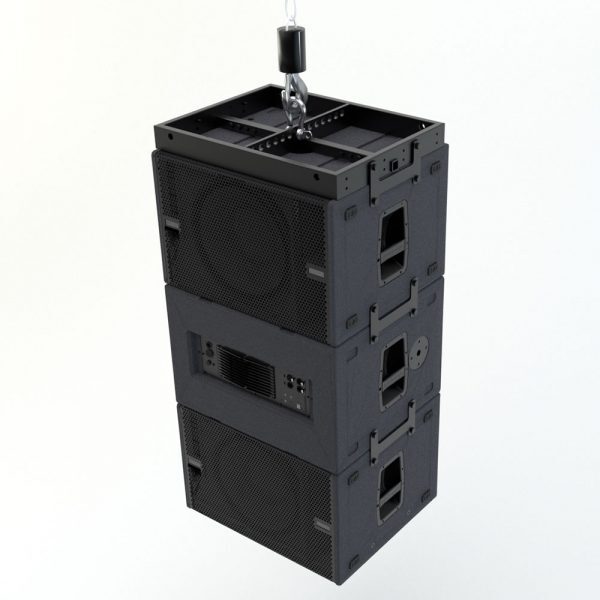

This is the most compact VIO sub, just perfect as a complement for all VIO X full range series. The system is loaded with a 15″ neodymium woofer, driven by a 900 W RMS Digipro G3 amp, which allows for complete networkability with all other speakers in VIO family. The cabinet is provided with M10 flying points and M20 pole mounts on both top and side of the box, so the sub allows for horizontal or vertical use, when flown or ground stacked. Two different flybars and sub brackets open for tons of possible configurations with VIO X206 boxes when in line array mode, a single flybar allowing for a simple set up, and a double flybar, which allows to fly multiple sub arrays and top arrays together, and many more configurations that will suit any installation requirements.





Specifications

Technical Data

  • Speaker Type: Active Bassreflex Subwoofer

Acoustical Data

  • Frequency Response [- 6 dB]: 40 Hz – (user frequency LPF)
  • Frequency Response [- 10 dB]: 36 Hz – (user frequency LPF)
  • Max SPL: 134 dB
  • LF: 1x 15″
  • Voice Coil LF: 4″
  • Directivity: Omnidirectional

Amplifier

  • Amp Technology: Digipro® G3
  • Amp Class: Class D
  • RMS Power: 900 W
  • Peak Power: 1800 W
  • Cooling: Convection

Processor

  • Controller: DSP 32 bit
  • AD/DA Converter: 24 bit/96 KHz
  • Limiter: RMS, Peak, Thermal

Input

  • Signal Input:
    1xXLR balanced
    1xRJ45 LINK (RDNet)
  • Signal Output:
    1x XLR balanced
    1xRJ45 LINK (RDNet)
  • Power Socket:
    1xPowerCON TRUE1 IN
    1xPowerCON TRUE1 OUT

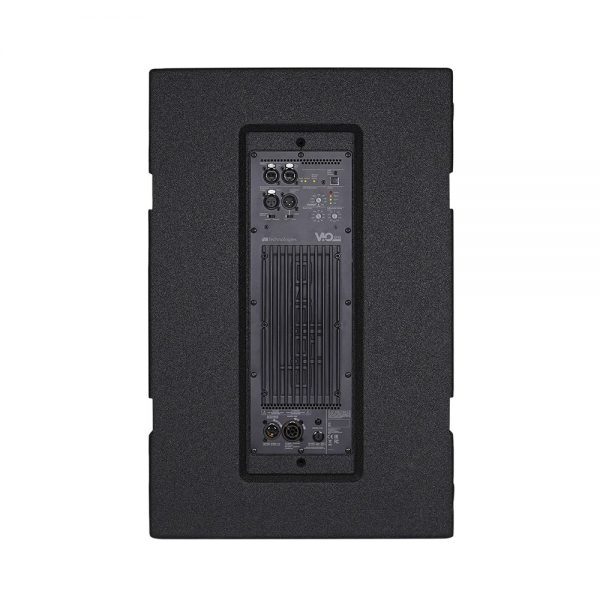

  • Controls:
    1x Input Sensitivity Rotary Encoder
    1x X-Over Selection Encoder
    1x Delay Selection Encoder
    1x Polarity Selection Switch
    1x X-Out Mode Selection Switch
    1x On LED
    1x Status LED
    1x Signal LED
    1x Limiter LED
    3x RDNet Status LED

Mechanics

  • Housing:
    Multiplex plywood
    Polyurea painted
  • Pole Mount: 1x M20 on Top, 1x M20 on Right Side
  • Handles:
    1x Side
    Aluminium
  • Rigging Points: 16x M10
  • Width: 650 mm (25.6 in)
  • Height: 420 mm (16.5 in)
  • Depth: 550 mm (21.7 in)
  • Weight: 32.8 kg (72.3 lbs)

Note: Data is not binding; dBTechnologies reserves the right to modify the data at any time and without notice.

SKU
VIO-S115
Model #
VIO S115
Barcode
935141000180
Brand
dB Technologies
