Description

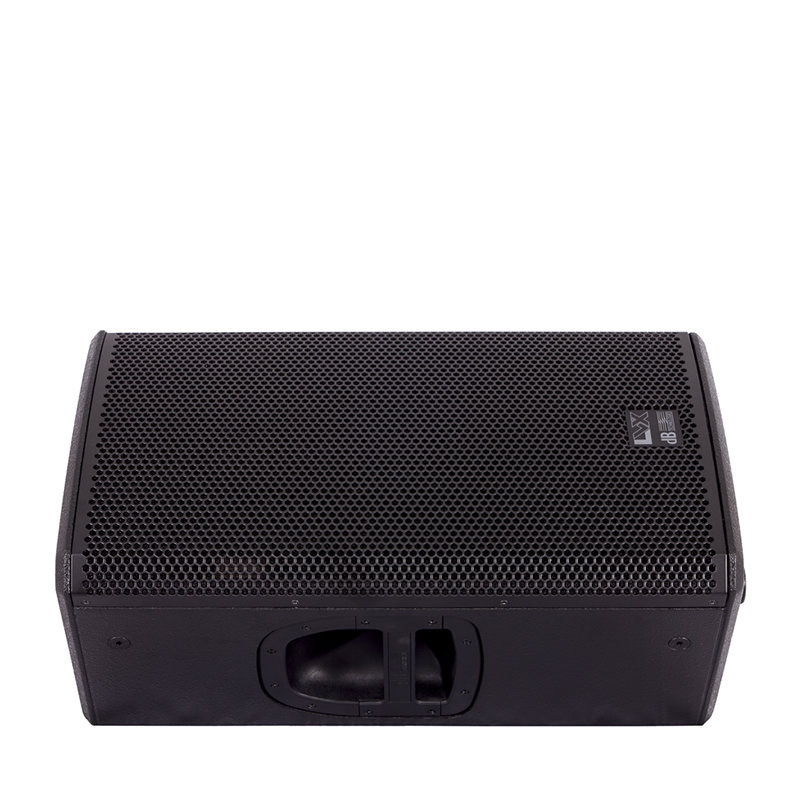

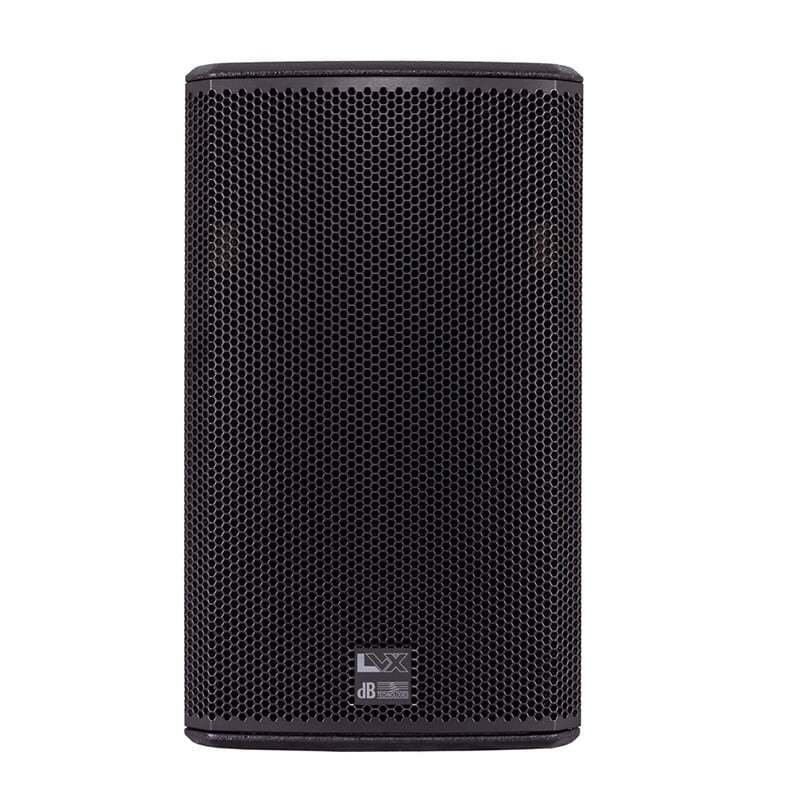

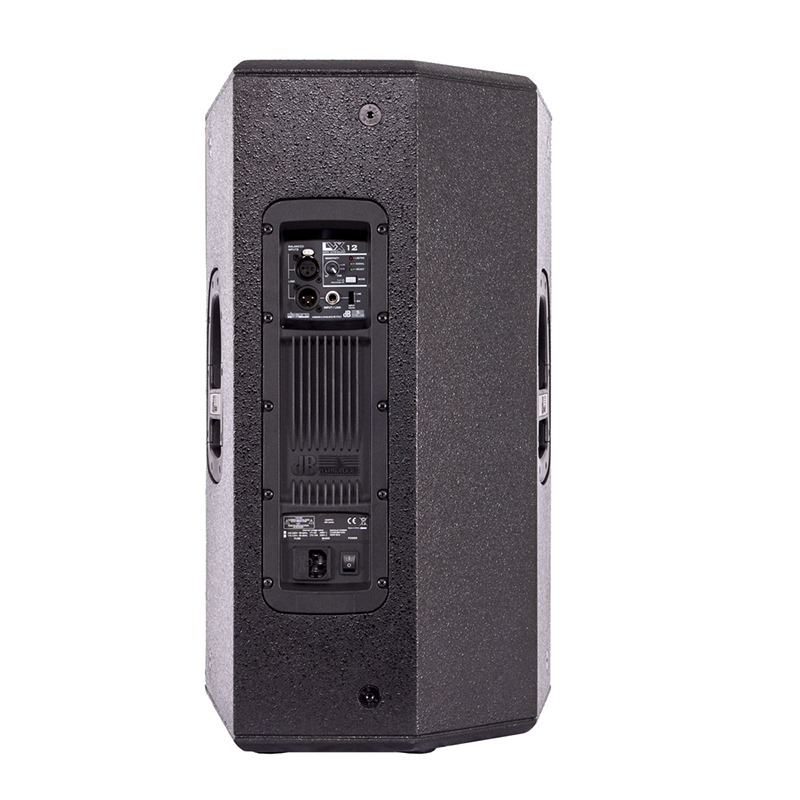

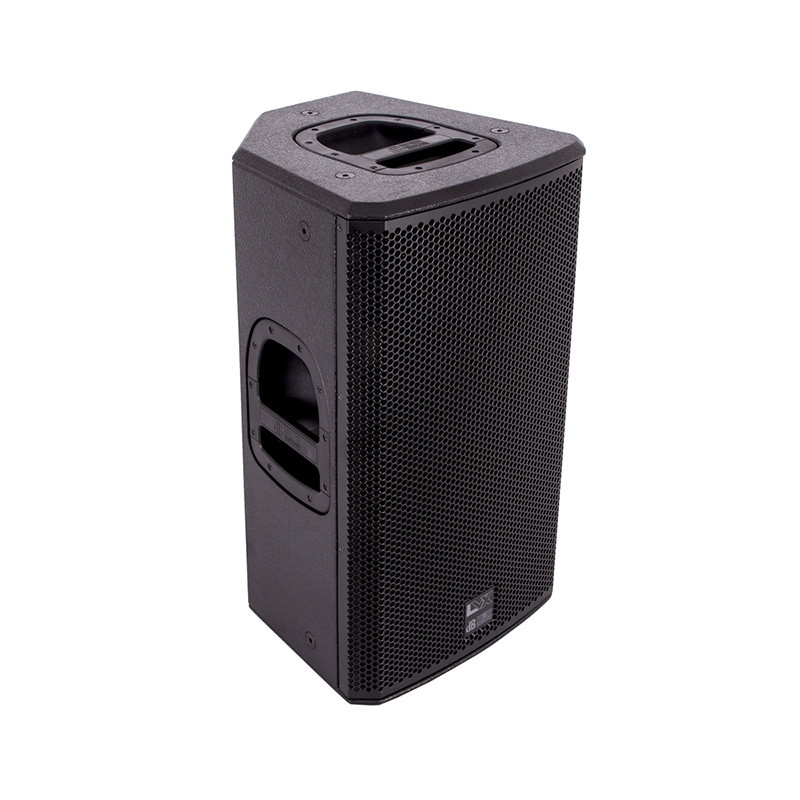

dB Technologies LVX 12 800-Watt 2-Way Active Speaker Bin

2-Way Active Speakers 12” / 1”, 800W PRG

LVX. Fit for every time

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful and in line with the highest professional standards. Coming from the experience gained in designing touring products as the renowned DVX series, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. Four models available: LVX 8, 10, 12 and 15. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45°

Advanced Technology

The LVX series uses DIGIPRO® series digital amplifiers with powers ranging from 400W (LVX 8 and 10) to 800W PRG (LVX 12 and 15). These highly efficient amplifiers provide high power, limited weight and are totally silent due to the low thermal dissipation and no cooling fans required. The digital preamp with DSP controls audio crossover, frequency response, dual active peak-RMS- thermal limiter, and acoustic alignment. A selector enables to select one of two different equalisations - “FLAT” or “PROCESSED” - to provide the right sound in any occasion.

Elegance yet strength

The enclosure is made of robust 12mm plywood with a look very elegant and refined. The scratch-resistant finishes are available in both black and white. All models are equipped with handles for easy transport. The LVX 8 and 10 have a single handle on top; the LVX 12 and 15, in addition to the handle on the top, have a pair of handles on sides. In case of installation where you want to keep as much as possible a stylish and sober look, the white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods, so as to be used as portable sound systems for any live music applications. There are two types of wall-mounting brackets: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second is suggested for horizontal permanent installations, where you can easily change tilt position.

Specifications

Technical Data

  • Speaker Type: 2-Way Active Speaker

Acoustical data

  • Frequency Response [-10dB]: 55 - 20.000 Hz
  • Frequency Response [-6dB]: 62 - 19.000 Hz
  • Max SPL: 127 dB
  • HF: 1"
  • Directivity: 90 x 40°
  • Horn: Rotatable CD Horn
  • LF: 12"

Amplifier

  • Amp Technology: Digipro® G2
  • Amp Class: Class-D
  • PRG Power: 800 W
  • Peak Power: 1600 W
  • Processor
  • Controller: DSP 24bit/48kHz
  • System Presets: Flat, Processed
  • Limiter: Dual Active Peak, RMS, Thermal
  • Crossover Frequency LF-HF: 1800 Hz
  • Slope LF-HF: 24 dB/Octave

Mechanics

  • Housing: Multiplex
  • Angles Up: Monitor use 45°
  • Handles: 3 (1x top side, 1x side)
  • Rigging points: 12 x M10
  • Pole Mount: D36 mm
  • Width: 360 mm (14.17 in)
  • Height: 610 mm (24 in)
  • Depth: 360 mm (14.17 in)
  • Weight: 17 kg (37.5 lbs)
