dB Technologies KL 12 800 Watt 2 Way Active Speaker Bin With Bluetooth & Bonus Cover Included KL-12 $ 868 $1,059.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

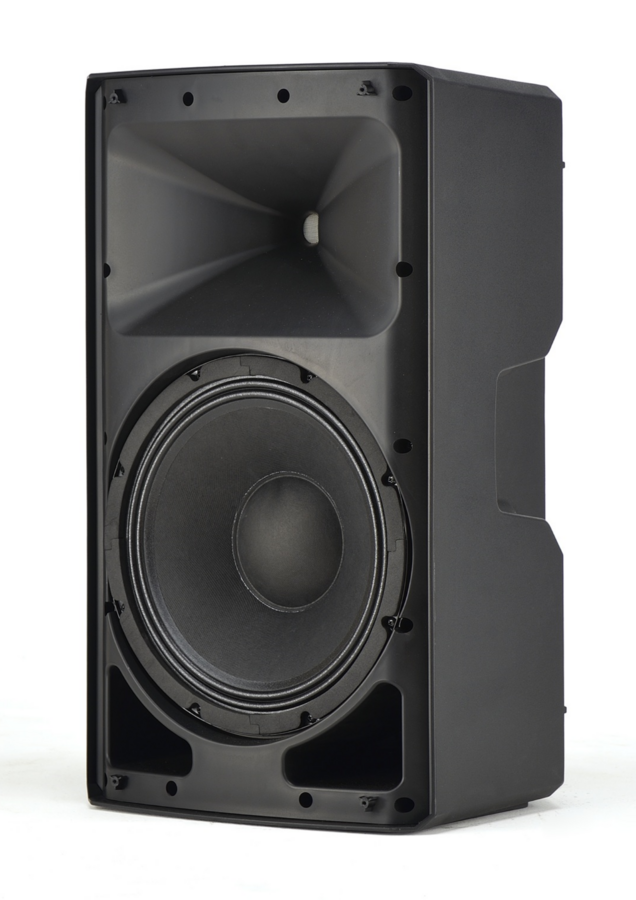

KL 12 is a 2-way active speaker equipped a 12” woofer  and one 1” compression driver (1.35 voice coil)
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

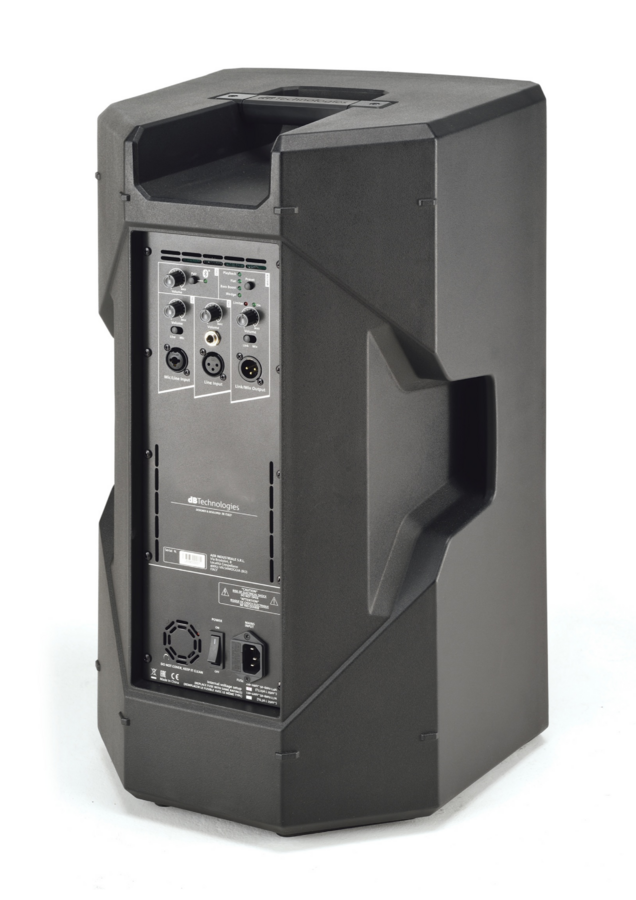

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

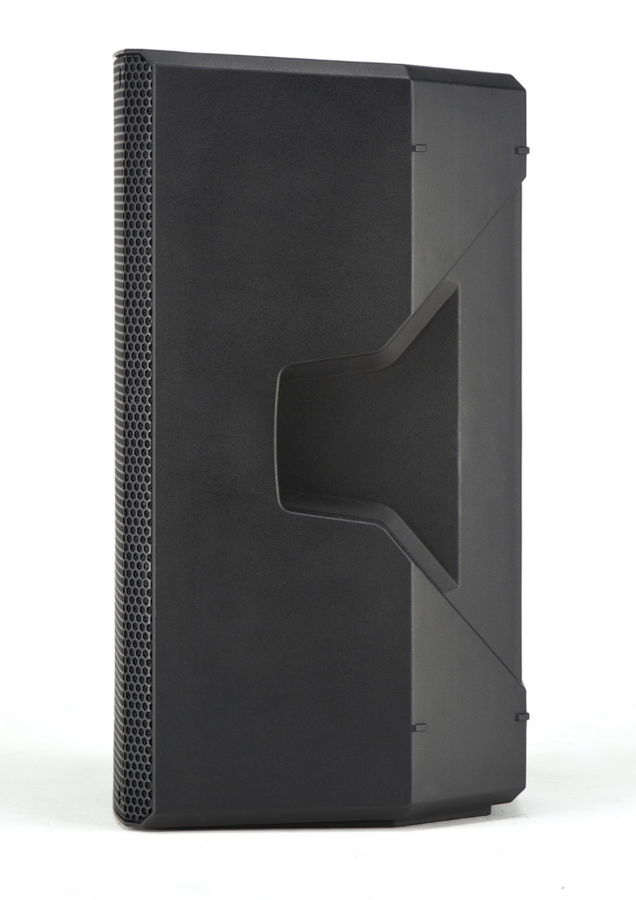

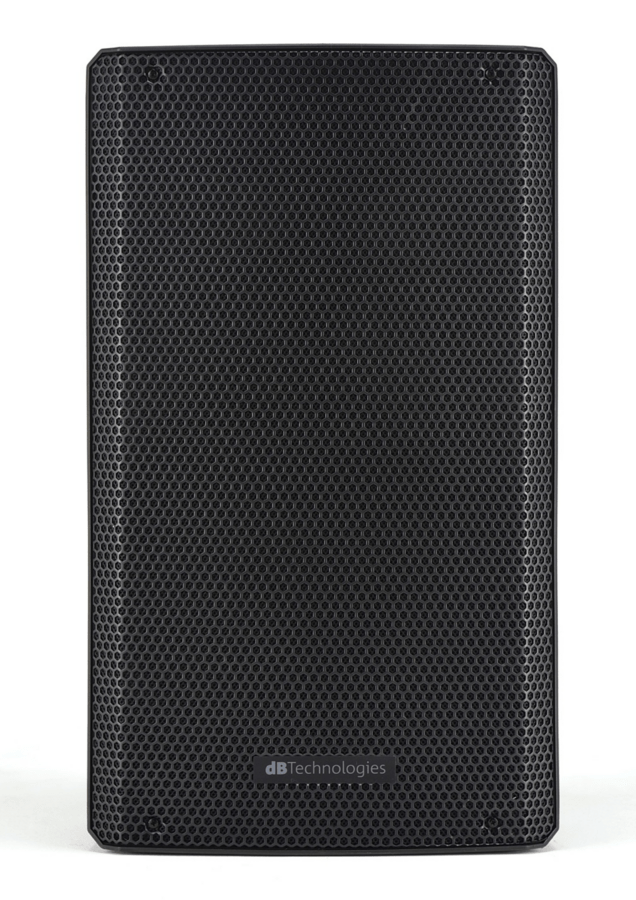

The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.
KL comes with its soft cover equipped with a pocket specially designed for cable storage.
dBTechnologies 2-way, active speaker series. 800 watt peak. KL systems feature Bluetooth® connection, 3 INPUT channels, and powerful DSP where linear phase FIR filters ensure the most accurate sound reproduction. 12" woofer with 1" compression driver.  127dB SPL maximum, 16.5kg. Cover Included

Specifications

Speaker Type 2-Way Active Speaker

Acoustical data
Frequency Response [-10dB] 52 - 18.000 Hz

Max SPL 127 dB

HF 1" CD, 1.35"v.c

LF 12", 2.5" v.c.

Dispersion 90°x60°

Crossover Frequency 1800 Hz (24 dB/oct.)

Amplifier
Amp Technology Class D(LF)+Class AB (HF)

Power Peak (LF+HF) 800 W

Processor
Controls 1xVolume, 1xslide switch mic/line

Indicators power on/signal/limiter LEDs

Controller DSP 20/56 bit

AD/DA Converter 24 bit/ 48 Hz

Systems Presets Playback, Flat, Bass Boost, Wedge

Limiter Peak, RMS, Thermal

Advanced DSP Functions Linear Phase FIR Filters

Input
Signal Input 1x Combo(XLR/Jack)
  Mic/Line
  1xXLR/TRS

Bluetooth Input 1xBluetooth receiver

SIGNAL Output 1xXLR Male (LINK/MIX)

Mechanics
Housing Polypropylene

Handles 3 (2 on side 1 on top)

Angles Up Monitor Use 45°

Pole Mount 36 mm, double positioning

Width 365 mm (14.37 in)

Height 622 mm (24.50 in)

Depth 342 mm (13.46 in)

Weight 16.5 kg (36.37 lbs)
