Description

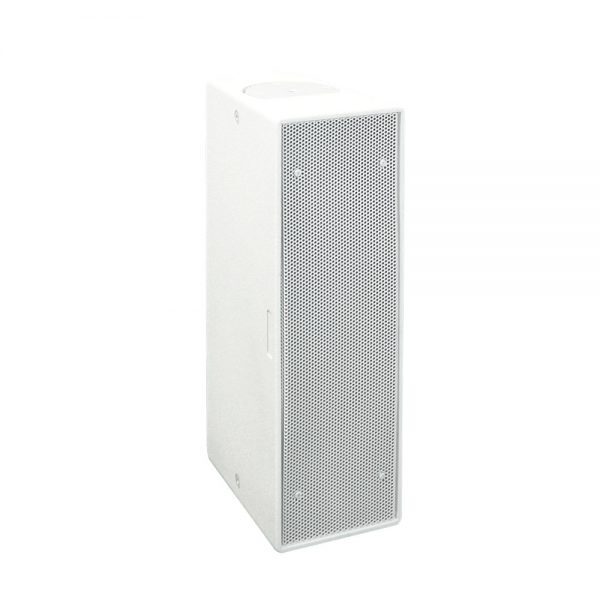

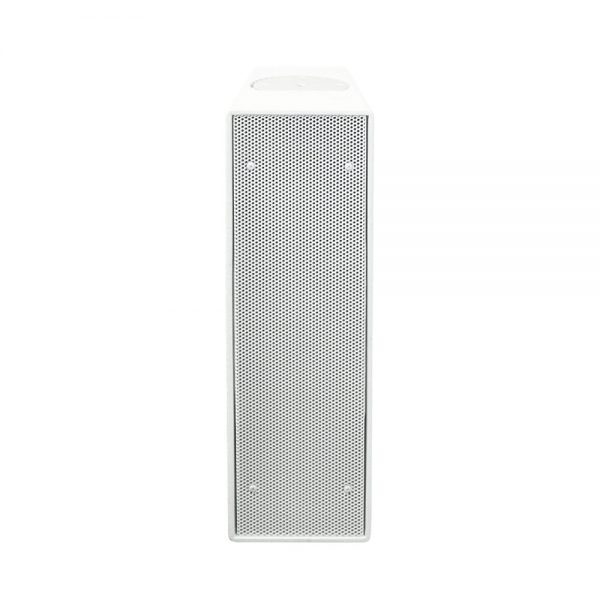

Passive wooden speaker, 2x5’’+ 1" HF driver, 8ohms, 120W RMS Power, PHOENIX connection, white finish, same accessories as VIO X 205

  • Passive 2-way speaker
  • 60×100° dispersion pattern
  • Rotatable Horn
  • Vertical or Horizontal use
  • Black or white version available
  • Phoenix or Speakon connector version available

Specifications

Technical Data

  • Speaker Type: Passive 2-way Speaker

Acoustical Data

  • RMS Power: 120 W
  • Peak Power: 480 W
  • Frequency Response [-6 dB]: 85 hz – 20,000 Hz
  • Impedance: 8 Ohm
  • Sensitivity 1W@m: 94.5 dB
  • Max SPL: 121.5 dB
  • HF: 1x 1″, 1.4″ v.c.
  • LF: 2x 5″, 1″ v.c.
  • Dispersion: 100×60°
  • X-Over Frequency: 1500 Hz (internal X-Over)

Input

  • Connections: Speakon or Phoenix version available

Mechanics

  • Housing: Plywood, water-painted coating
  • Rigging points: 2x M10 threaded nut (top and bottom)
  • Width: 152 mm (6 in)
  • Height: 485 mm (19 in)
  • Depth: 240 mm (9.4 in)
  • Weight: 7 kg (15.4 lbs)

Note: Data is not binding; dBTechnologies reserves the right to modify the data at any time and without notice.

SKU
IS-25TW
Barcode
930141011157
Brand
dB Technologies

Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.

Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:

a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.

We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.

Reviews

dB Technologies

dB Technologies IS 25TW Passive wooden speaker, 2X5’’+ 1" HF driver, 8OHMS, 120W White

Read reviews · SKU IS-25TW
$1,120.00 RRP $1,366.00
Price includes GST


Currently sold out What's this?
Talk to a specialistChat to us or call 5444 8889
Seen a better price?Ask for a price match
